4.2.2 Playback

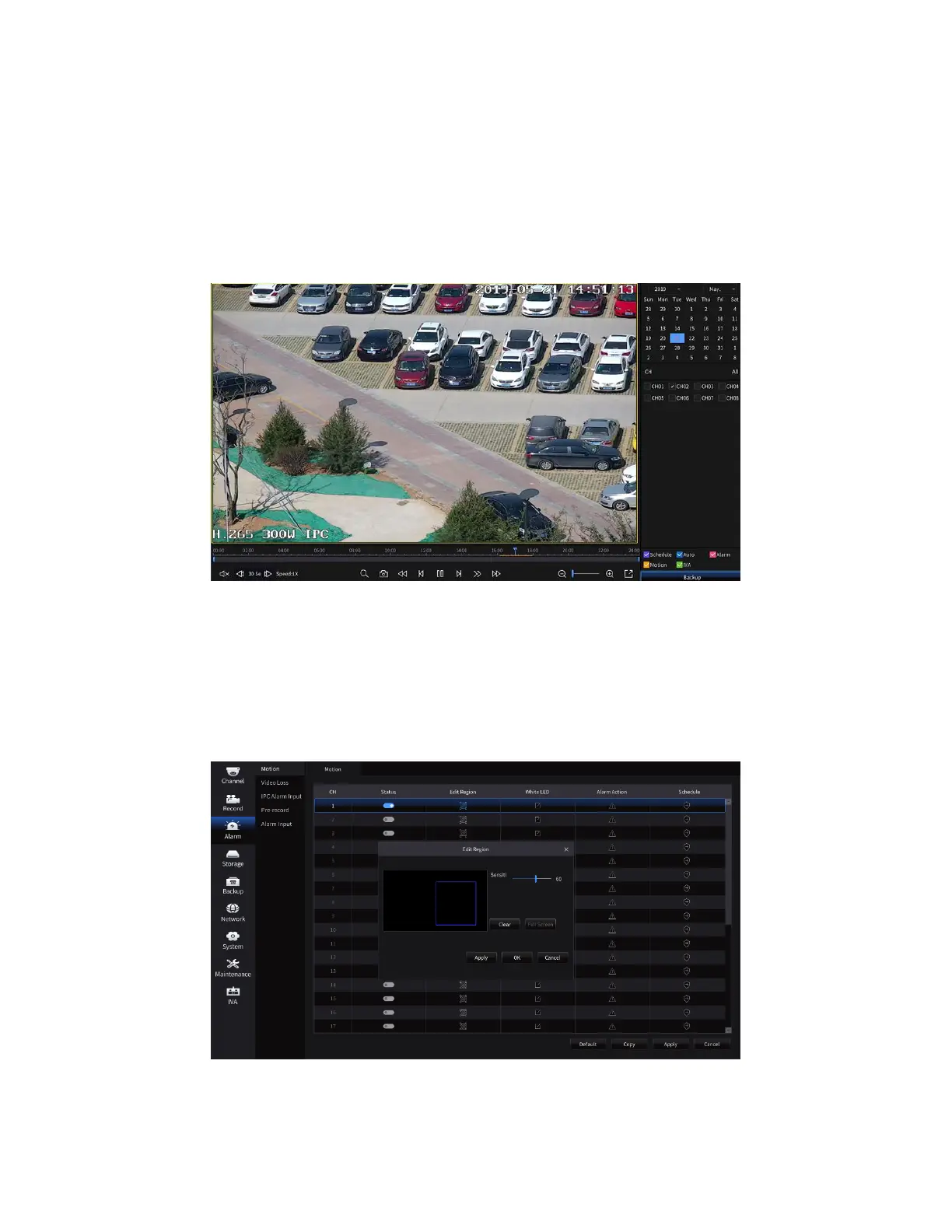

Main Menu -> Playback, then system will open video playback interface, shown as below:

Motion detection detects the moving objects in the configured surveillance area, and a series of actions can be

taken when the alarm is triggered.

Click on the date and check-box of the channel needed. Then click on “Play” button. System will start video

playback. Right-click to quit the video playback.

Note: For 16Ch NVR and above Playback, go to Right Click menu-> Playback.

4.3. Alarm

In this menu, you can set and manage alarm related options.

4.3.1 Motion

Motion detection detects the moving objects in the configured surveillance area, and a series of actions can be

taken when the alarm is triggered.

Click Status Switch to enable the function for the channel. Press mouse button and drag to select the area. You

can choose 4 areas at most for one channel. Sensitivity can also be set here. Click OK to save the settings.

You can enable White LED for light up the when motion detects. (It supports only some specific models).
