1. Hardware Installation and Connection

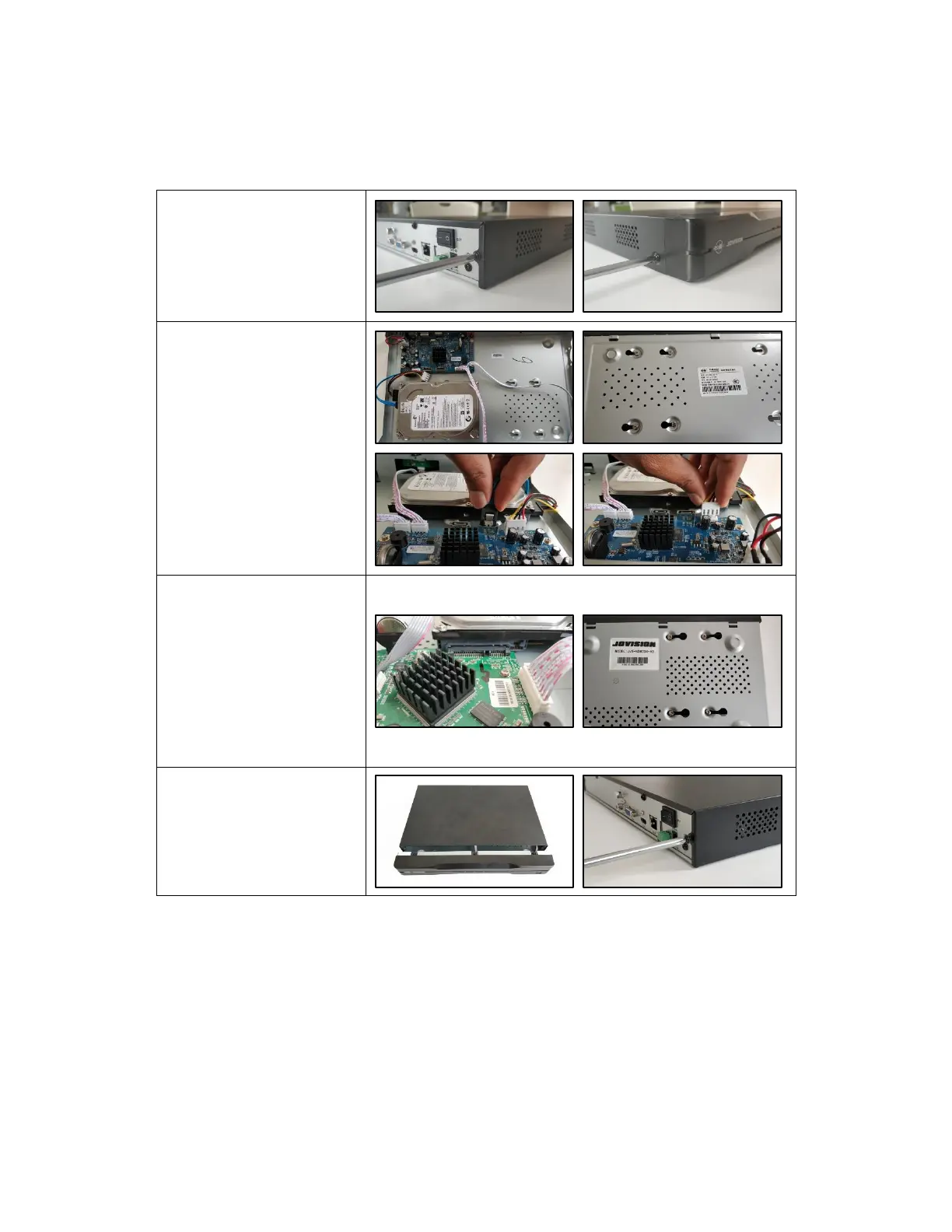

1.1. HDD Installation
Loosen the screws of the
upper cover and side panel,
remove the upper cover.
Model A
Place the HDD in accordance
with the four holes in the
bottom. Fix the hard disk
firmly on the baseboard of
chassis with four screws.
Connect the HDD cable and
power cable.
Model B
Aim the power and data port
of Hard disk at HDD ports on
the DVR motherboard, and
insert it cautiously. Fix the
hard disk firmly on the
baseboard of chassis with
four screws.
Put the cover in accordance
with the clip and then place
the upper cover back, secure
the screws.
