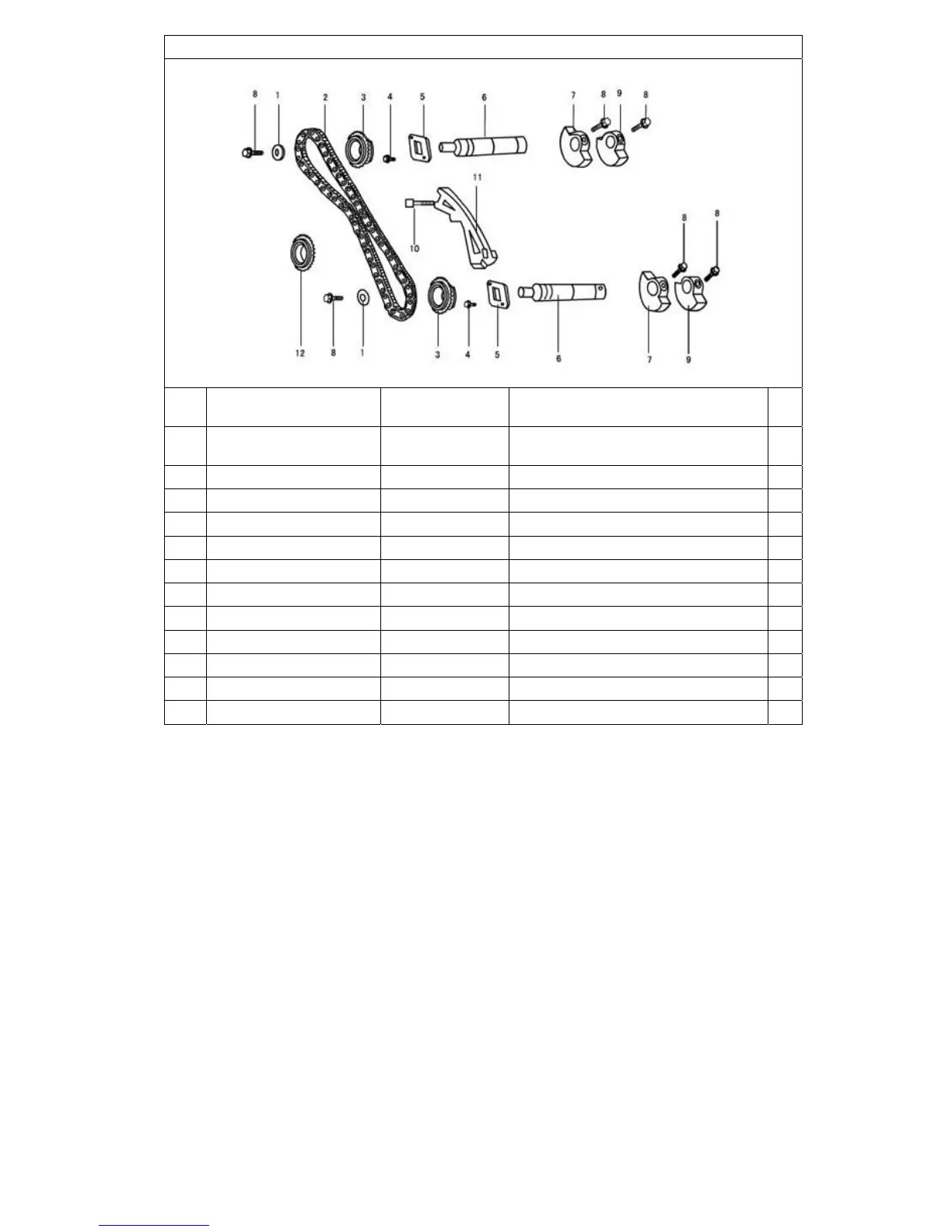

Joyner JNSZ650DLB - Balancing Shaft Part

BALANCING SHAFT PART
No. ERP Code Code name Description
Q'
ty
1 02.DLJ.QTB30-φ24×φ8.5×3
QTB30-φ24×φ8.5×
3
Thick washer φ24×φ8.5×3 2
02.DLJ.270Q－04400 270Q－04400
Balancing chain assembly 1
3
02.DLJ.270Q－04310A 270Q－04310A
Balancing shaft sprocket assembly 2
4 02.DLJ.QTB10-M6×10 QTB10-M6×10 Hexagon-headed bolt with edge M6×10 4
5
02.DLJ.270Q－04301 270Q－04301
Baffle plate of Balancing shaft 2
6
02.DLJ.270Q－04302A 270Q－04302A
Balancing shaft 2
7
02.DLJ.270Q－04303 270Q－04303
Front balancing weight 2
8
02.DLJ.270Q－04305 270Q－04305
Balancing weight bolt 6
9
02.DLJ.270Q－04304 270Q－04304
Rear balancing weight 2
10 02.DLJ.QTB10-M6×45 QTB10-M6×45 Hexagon-headed bolt with edge M6×45 2
11
02.DLJ.270Q－04200B 270Q－04200B
Guide pad assembly of balancing chain 1
12
02.DLJ.270Q－04012A 270Q－04012A
Cam chain drive sprocket 1
