Joyner JNSZ650DLB - Transmission Tank

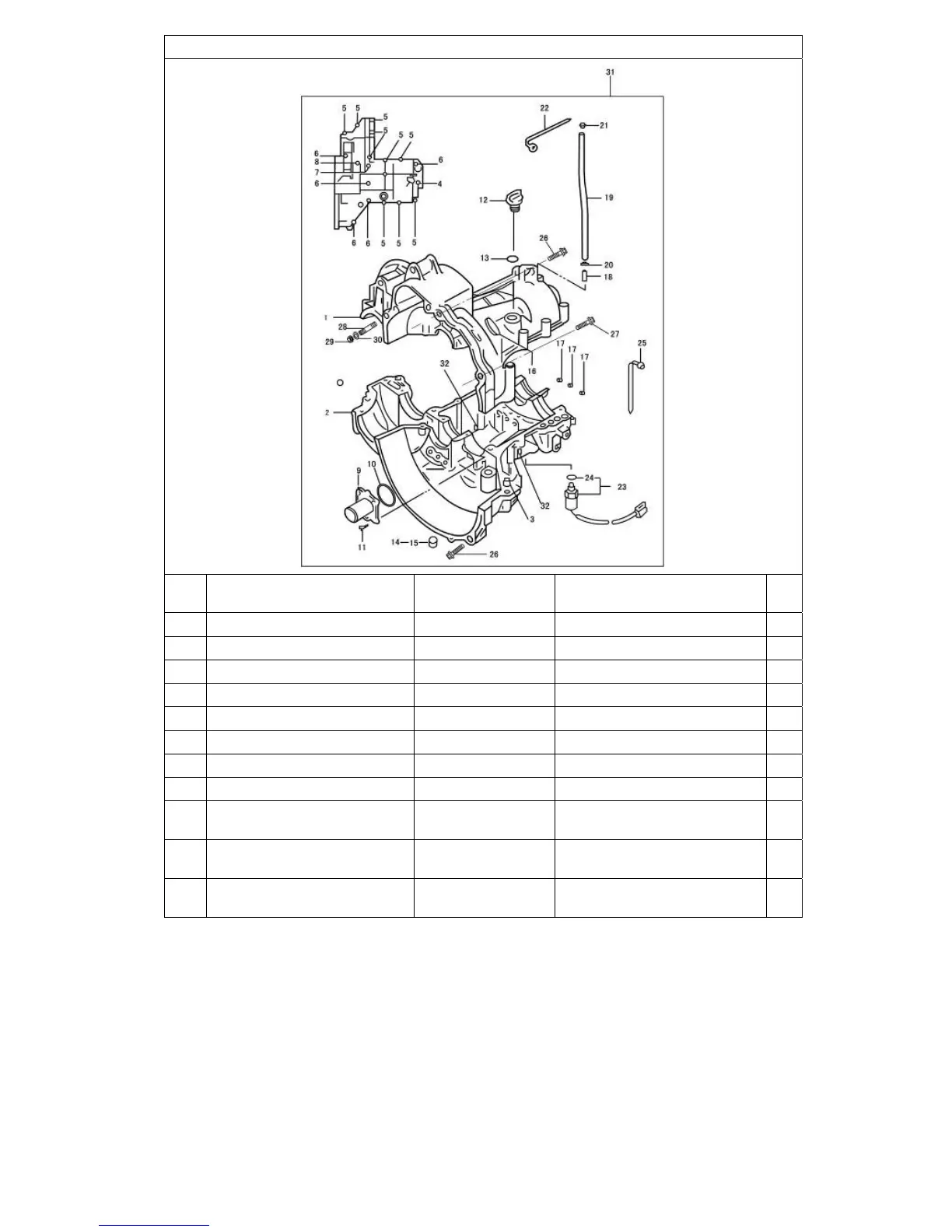

TRANSMISSION TANK
No. ERP Code Code name Description
Q't
y
1 02.DLJ.4T06C-1701112 4T06C-1701111 Upper housing of transmission 1
2 02.DLJ.4T06C-1701112 4T06C-1701112 Lower housing of transmission 1
3 02.DLJ.MQC4-1701113 MQC4-1701113 Locating pin 2
4 02.DLJ.GB5789-86 AM6X40 GB5789-86 AM6X40 Bolt AM6×40 1
5 02.DLJ.GB5790-86 AM8X50 GB5790-86 AM8X50 Bolt AM8×50 10
6 02.DLJ.GB5790-86 AM8X70 GB5790-86 AM8X7 Bolt AM8×70 5
7 02.DLJ.GB5790-86 AM8X90 GB5790-86 AM8X90 Bolt AM8×90 1
8 02.DLJ.GB5790-86 AM8X135 GB5790-86 AM8X135 Bolt AM8×135 1
9 02.DLJ.MQC4-1701301 MQC4-1701301
Baffle plate of seal ring of the first
shaft
1
10 02.DLJ.GB3452,1-82 40X2,65
GB3452.1-2005
40×2.65
“O” type seal ring 40×2.65 1
11
02.DLJ.GB819-85
M6×16-6.8
GB819-85 M6X16-6.8 Bolt M6×16-6.8 4
