Clutch replacement
Do not remove the whole engine from vehicle when you replace the clutch, but
you’ll need to remove rear suspension, driven shaft, clutch cable, muffler, wires
and rubber cushion that is in the middle of transmission and frame.

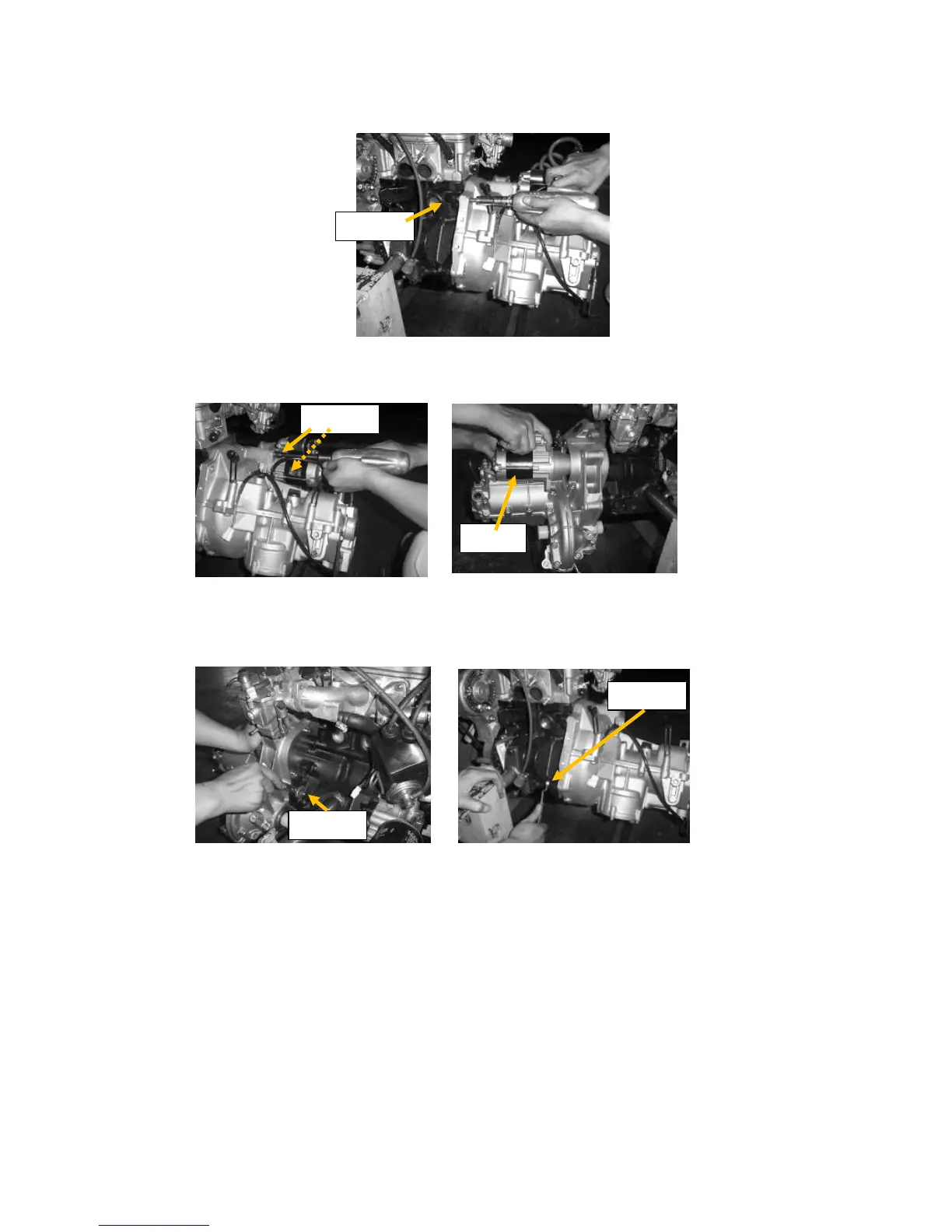

1. Remove bolt M14 (See Figure 28)
Figure 28
2. Remove two bolts (M12) on the starter (See Figure 30), Remove the starter (See
Figure 29)
Figure 30
3. Remove two nuts (M14) on two side of transmission (See Figure 31,Figure 32)
Figure 32
Bolt M14
Bolt M12
Starter
Bolt M14
Bolt M14
Figure 29
Figure 31
