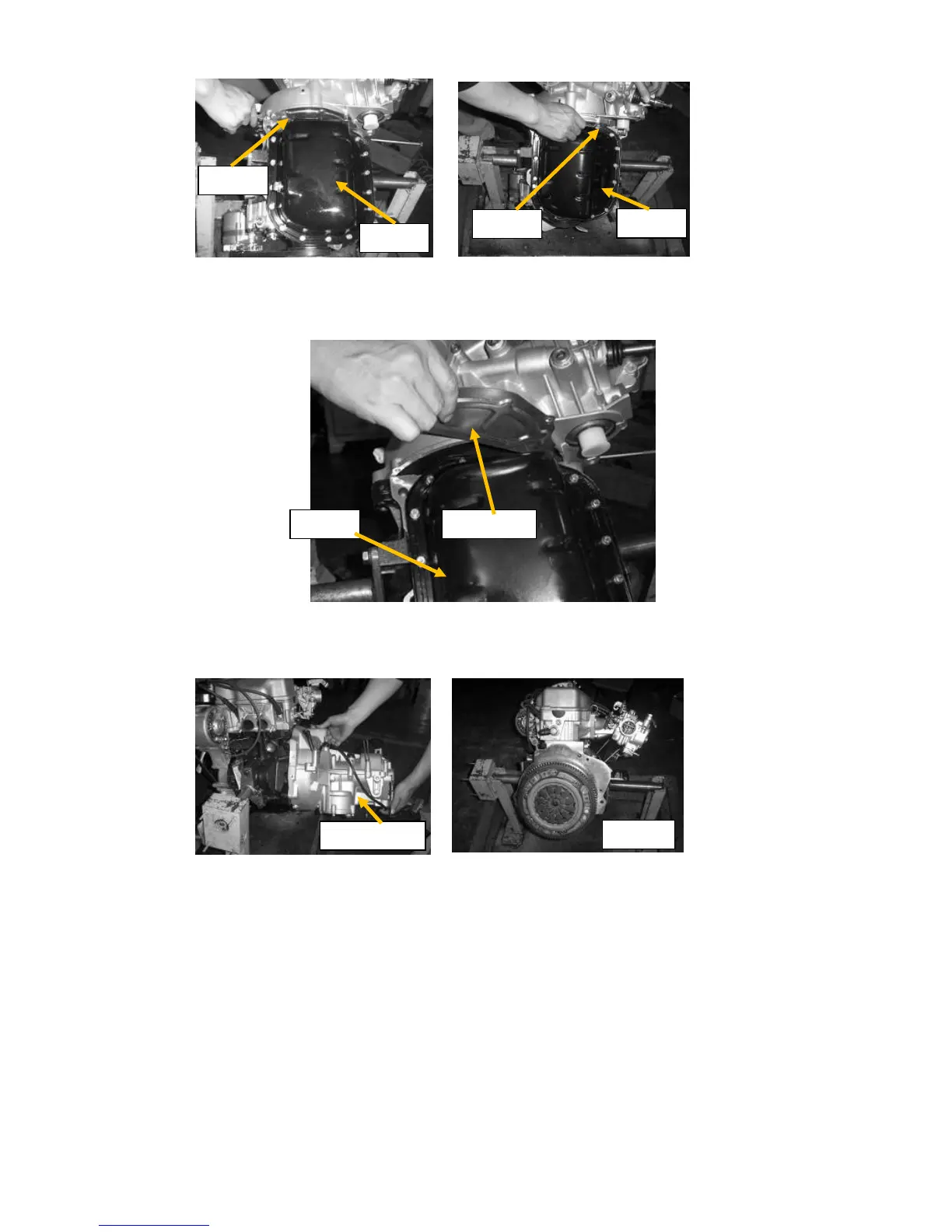

1. Remove two bolts(M8) on the lower mud plate of transmission (See Figure 33,Figure
34)
Figure 34
2. Remove the lower mud plate (See Figure 35).
Figure 35
3. Remove the transmission (See Figure 36,Figure 37)
4. Remove upper mud plate (See Figure 38)
Bolt M8
Oil pan
Bolt M8
Oil pan
Mud plate Oil pan
Transmission
Engine
Figure 33
Figure 37
Figure 36
