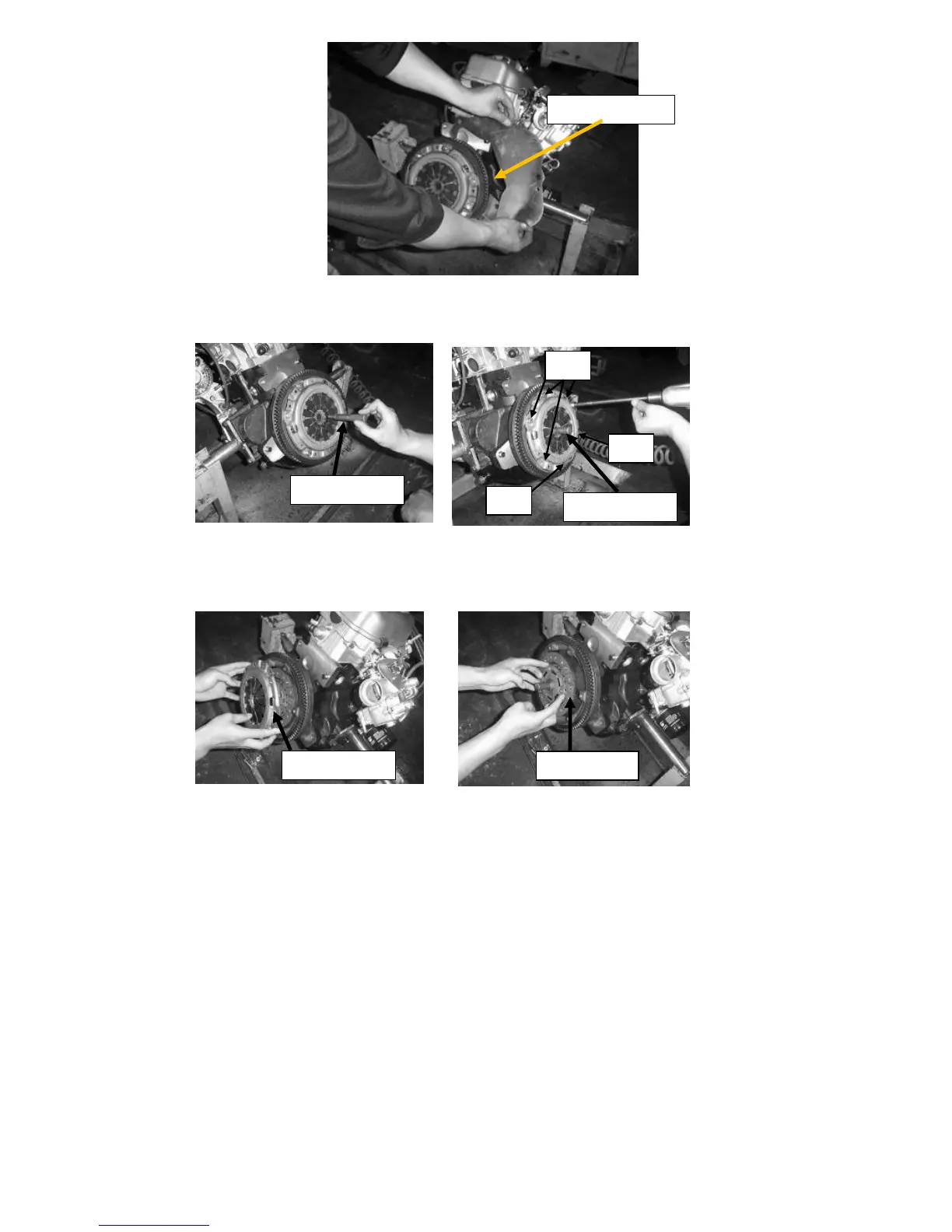

5. Insert the aligning shaft into hole (See Figure 40). Remove six bolts on the pressing
plate of clutch (See Figure 39)
Figure 40
6. Remove the pressure plate (See Figure 42).
Remove the friction disc of clutch (See Figure 41,Figure 43)
Figure 42
Upper mud plate
Aligning shaft
Aligning shaft
Bolt
Bolt
Bolt
Pressure plate
Friction disc
Figure 39
Figure 41
