Figure 43

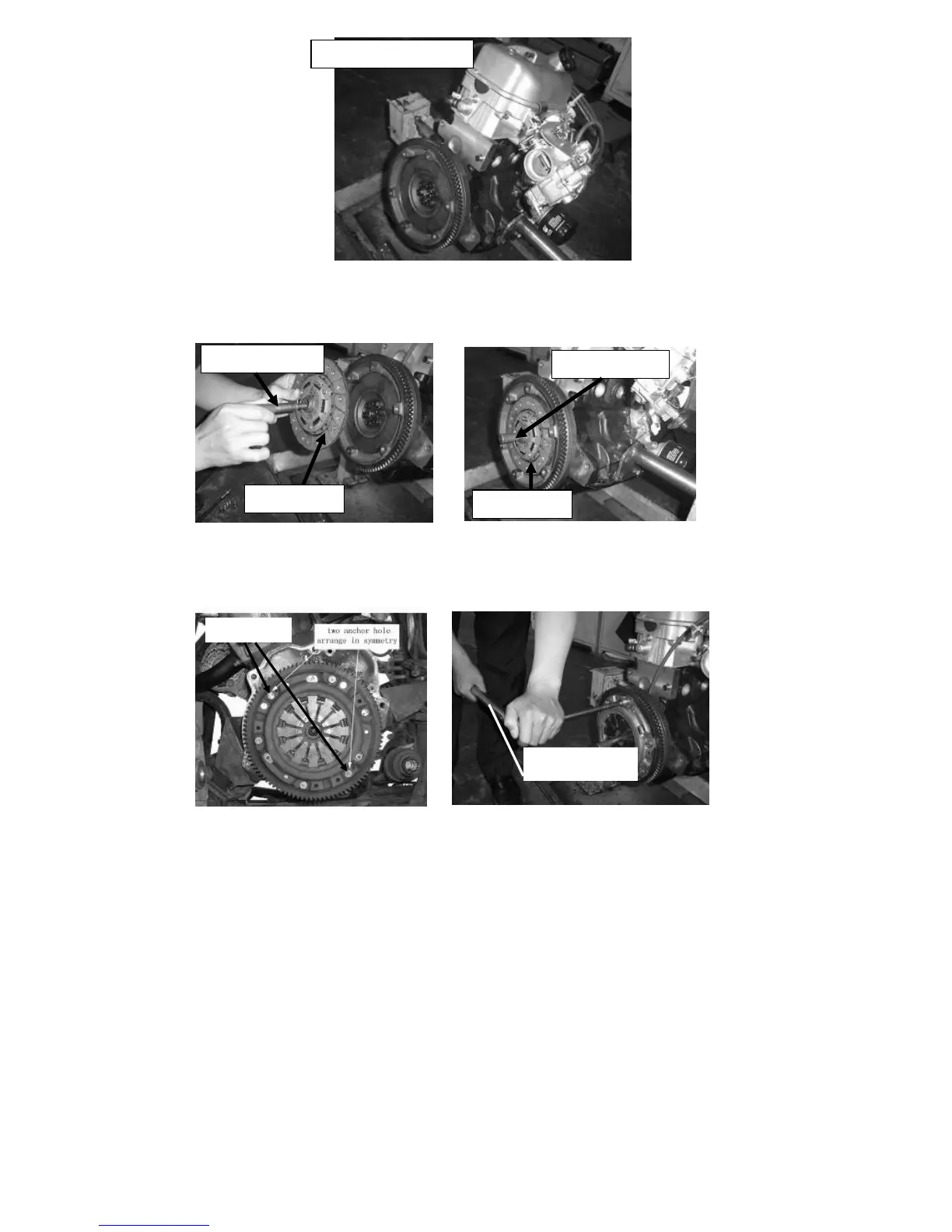

10. Insert the aligning shaft into the hole; align new friction plate to the flywheel of engine
(See Figure 44,Figure 45).
Figure 45
10. Fix pressure plate of clutch. Two bolts with “Y.G” mark must be inserted into two
anchor holes. Tighten six bolts with torque 30 N.m (See Figure 46,Figure 47).
Figure 47
12. Fix upper mud plate (See Figure 48,Figure 49Figure 49)
Torque 30 N*M
Engine without clutch
Friction disc
Centering shaft
Friction disc
Centering
Bolts with “GY”
Figure 44
Figure 46
