Joyner JNSZ650DLB - Timing Setup and Balancing Shaft Setup

Figure 49
13. Fix parts according to reverse operation to the disassembly
Timing setup and balancing shaft setup
1. When the first piston locates top dead center, make sure the mark on camshaft
timing sprocket wheel in the position shown as the following figure.
2. Make a mark between two holes as the Figure 51, and turn the left balancing shaft
sprocket, make sure the mark on the balancing shaft sprocket aligned to the mark
made at the beginning of this step.
3. Make a mark about 30mm above the bolt as the Figure 52, and turn the right
balancing shaft sprocket; make sure the mark on the balancing shaft sprocket aligned
to the mark made at the beginning of this step.
3. Fix guide plate, and tension plate
4. Fix the sprocket. Mark on the sprocket must be in straight line to the single white link
on the timing chain. (See Figure 53)
Upper mud plate Upper mud plate

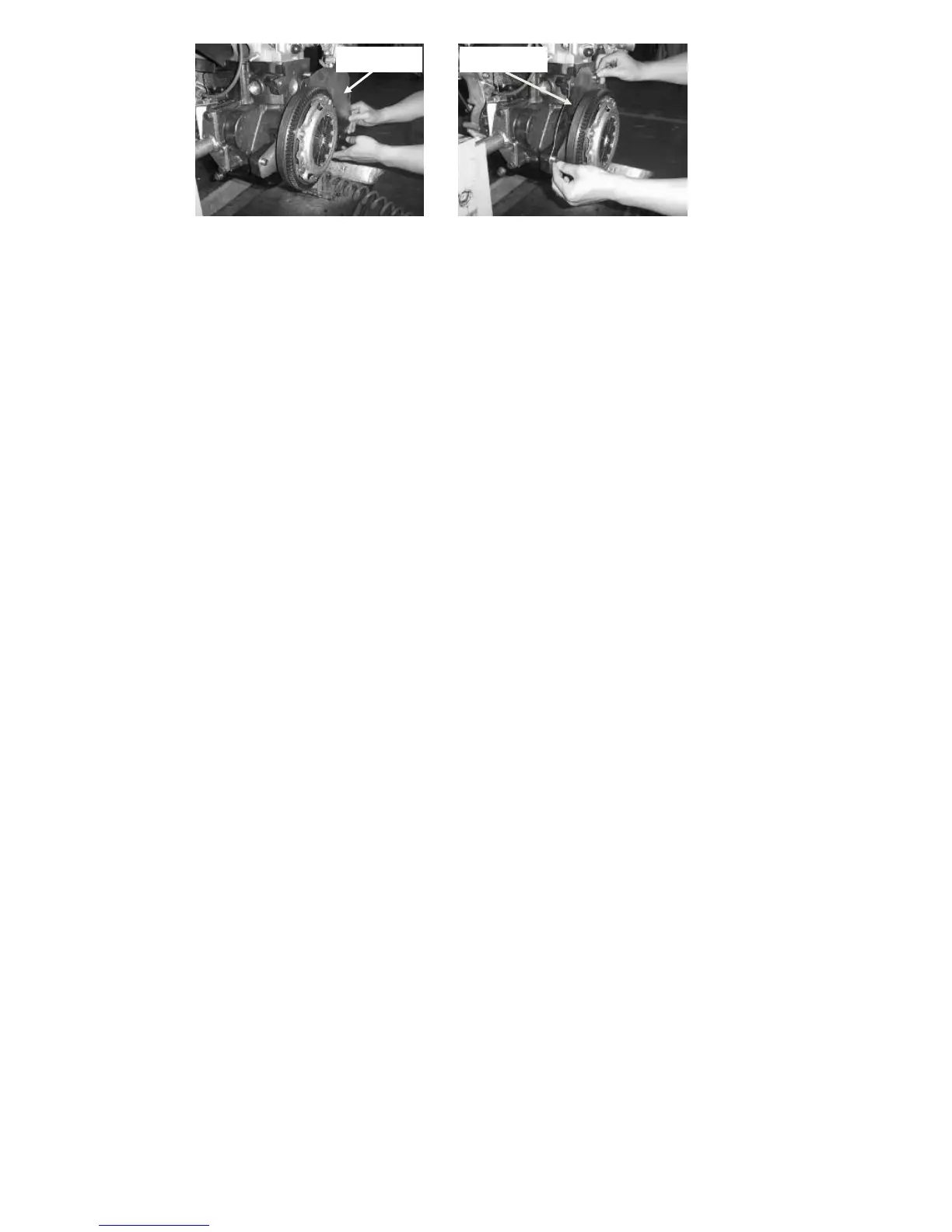

Figure 48
