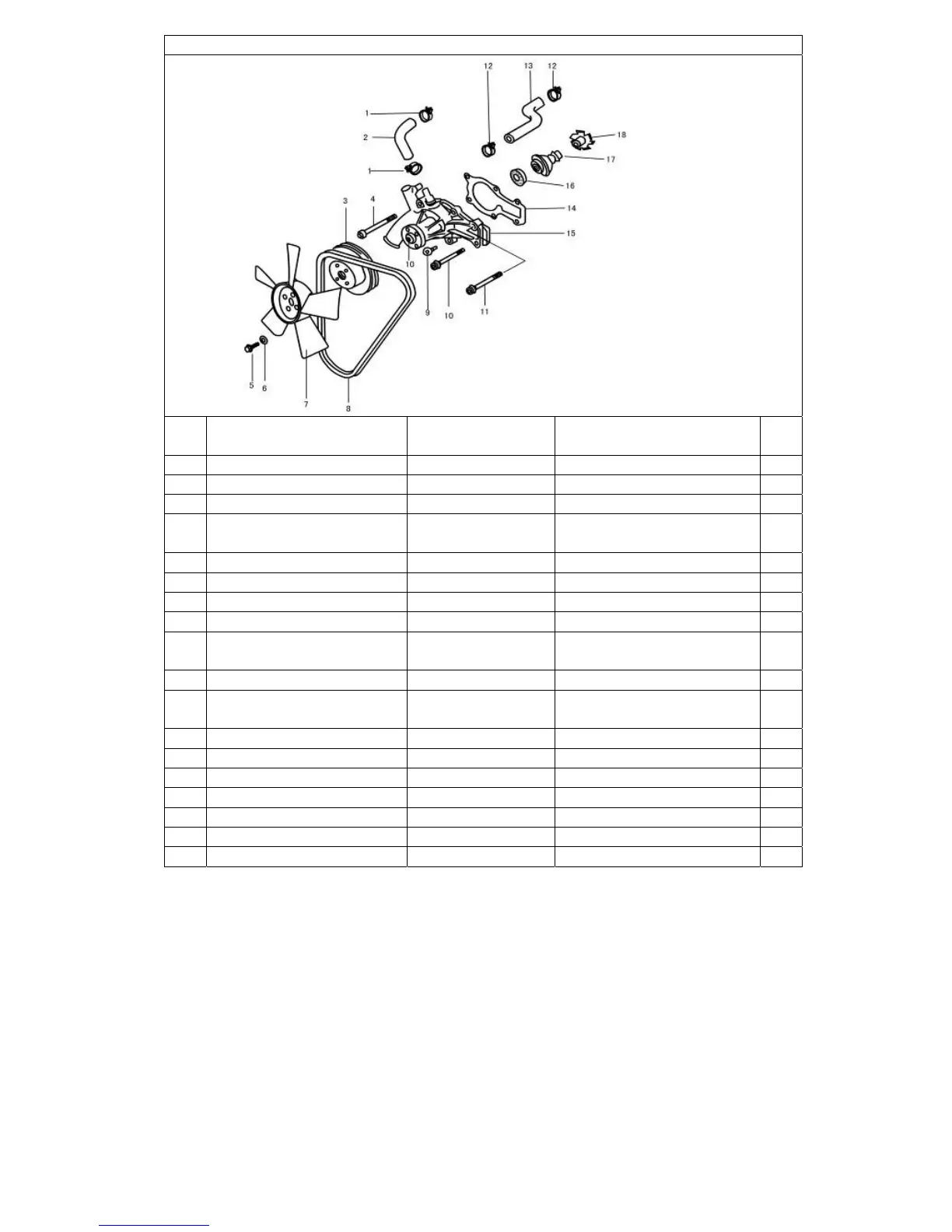

WATER PUMP AND FAN PART
No. ERP Code Code name Description
Q't
y
1
02.DLJ.ZB/TT32005.1－88 ZB/TT32005.1－88
Hose clamp 2
2
02.DLJ.270Q－19011 270Q－19011
Rubber pipe (2) 1
3
02.DLJ.270Q－19013 270Q－19013
water pump pulley 1
4 02.DLJ.QTB10-M8×88 QTB10-M8×88
Hexagon-headed bolt with edge
M8×88
2
5
02.DLJ.9074.15－M6X20 9074.15－M6X20
Hexagon head bolt M6×20 4
6 02.DLJ.QTB32-7.5 QTB32-7.5 Washer 7.5 4
7
02.DLJ.276Q－19200 276Q－19200
Fan assembly 1
8 02.DLJ.QTB93A-AV10X845 QTB93A-AV10X845 Fan belt AV10×845 1
9 02.DLJ.QTB10-M8×23 QTB10-M8×23
Hexagon-headed bolt with edge
M8×23
2
10
02.DLJ.270Q－19002B 270Q－19002B
bolt 1
11 02.DLJ.QTB10-M8×78 QTB10-M8×78
Hexagon-headed bolt with edge
M8×78
2
12
02.DLJ.ZB/TT32005.1－88 ZB/TT32005.1－88
Hose clamp 2
13
02.DLJ.LJ276MT－2－19009 LJ276MT－2－19009
Rubber pipe (1) 1
14
02.DLJ.276Q－19001 276Q－19001
Water pump gasket 1
15
02.DLJ.276Q－19100 276Q－19100
Water pump 1
16
02.DLJ.276－E60101 276－E60101
Roller bearing E60101 2
17
02.DLJ.270Q－F12－00 270Q－F12－00
Water seal 1
18
02.DLJ.276Q－19003 276Q－19003
Impeller 1
