2.Installation of Scanner Unit > 2.1 Equipment Cable
2-5
2.1.3 2695111153
This is an 18-core shielded composite cable. This cable is used to connect an interswitch to the display unit.

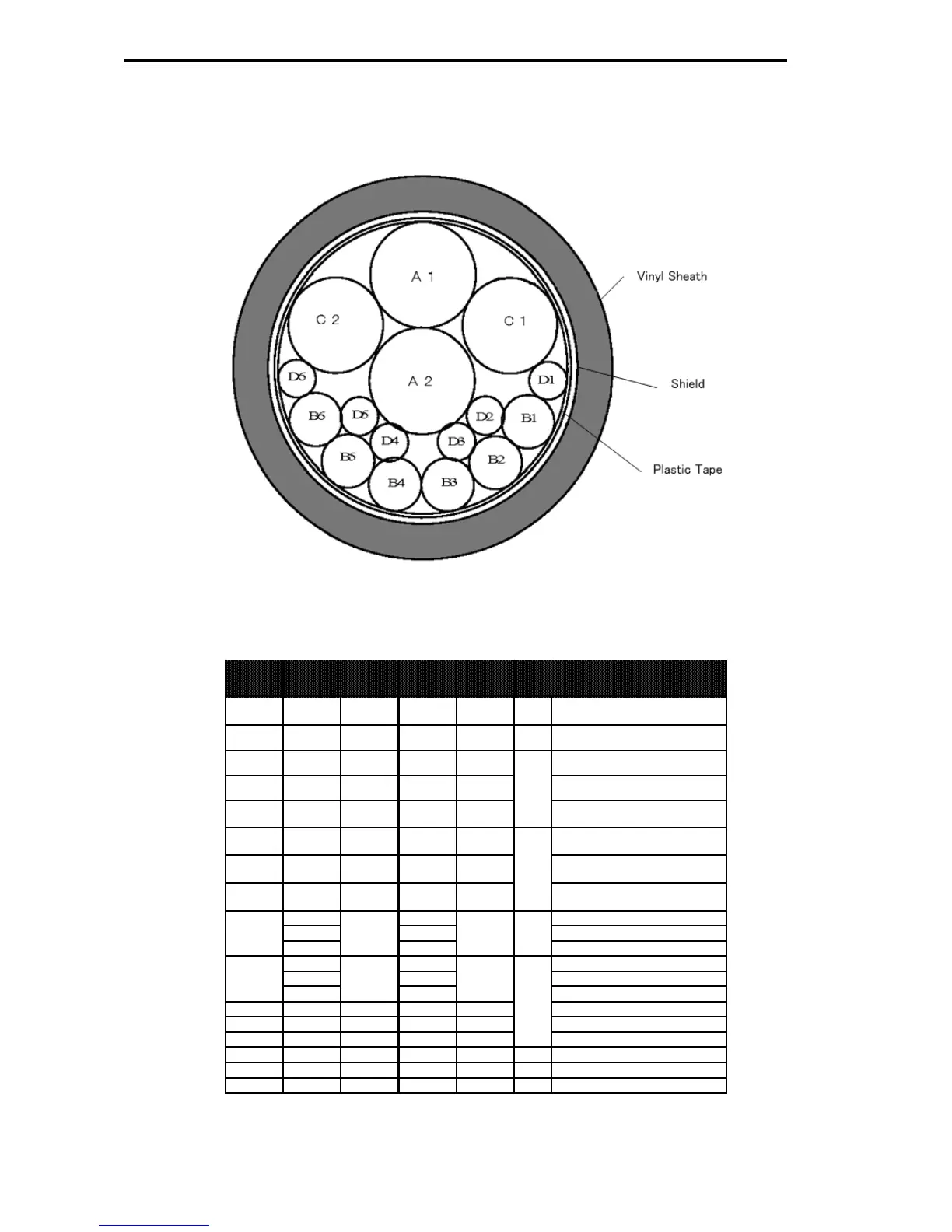

Fig 2-3 Cross-sectional drawing of 2695111153
Table 2-3 2695111153 wire
Wir e NO.
Cross
Section
(mm
2
)
No. o f w ir e /
φ
Color
Re m ar k s
A1 0.5 19 / 0.18 Black 1 Coaxial J833
Center Conductor: 1. ISWO_VD+
Outer Conductor: 2. ISWO_VD-
A2 0.5 19 / 0.18 Black 2 Coaxial J834
Center Conductor: 1. ISWI_VD+
Outer Conductor: 2. ISWI_VD-
B1 0.5 19 / 0.18 Blue Shield
Center Conductor: 3. ISWO_TRG+
Braid: 4. ISWO_TRG-
B2 0.5 19 / 0.18 Yellow Shield
Center Conductor: 5. ISWO_BP+
Braid: 6. ISWO_BP-
B3 0.5 19 / 0.18 Green Shield
Center Conductor: 7. ISWO_BZ+
Braid: 8. ISWO_BZ-
B4 0.5 19 / 0.18 Red Shield
Center Conductor: 3. ISWI_TRG+
Braid: 4. ISWI_TRG-
B5 0.5 19 / 0.18 Purple Shield
Center Conductor: 5. ISWI_BP+
Braid: 6. ISWI_BP-
B6 0.5 19 / 0.18 Clear Shield
Center Conductor: 7. ISWI_BZ+
Braid: 8. ISWI_BZ-
0.3 Blue 9. ISWO_MTR+
0.3 White 10. ISWO_MTR-
-
Braid 11. ISWO_MTRG
0.3 Yellow 9. ISWI_MTR+
0.3 White 10. ISWI_MTR-
-
Braid 11. ISWI_MTRG
D1 0.5 19 / 0.18 Brow n 15. PWRINE
D2 0.5 19 / 0.18 Black 13. PWROUTE
D3 0.5 19 / 0.18 Orange 12. PWROUT
D4 0.5 19 / 0.18 Gray
--
D5 0.5 19 / 0.18 Pink J834 14. PWRIN
D6 0.5 19 / 0.18 SkyBlue
--
CQD-2273
Radar Interface Circuit
C1
C2
12 / 0.18
12 / 0.18
J833
J834
2 Cores
Shield
2 Cores
Shield
J833
J834
maximum diameter 18.0mm
