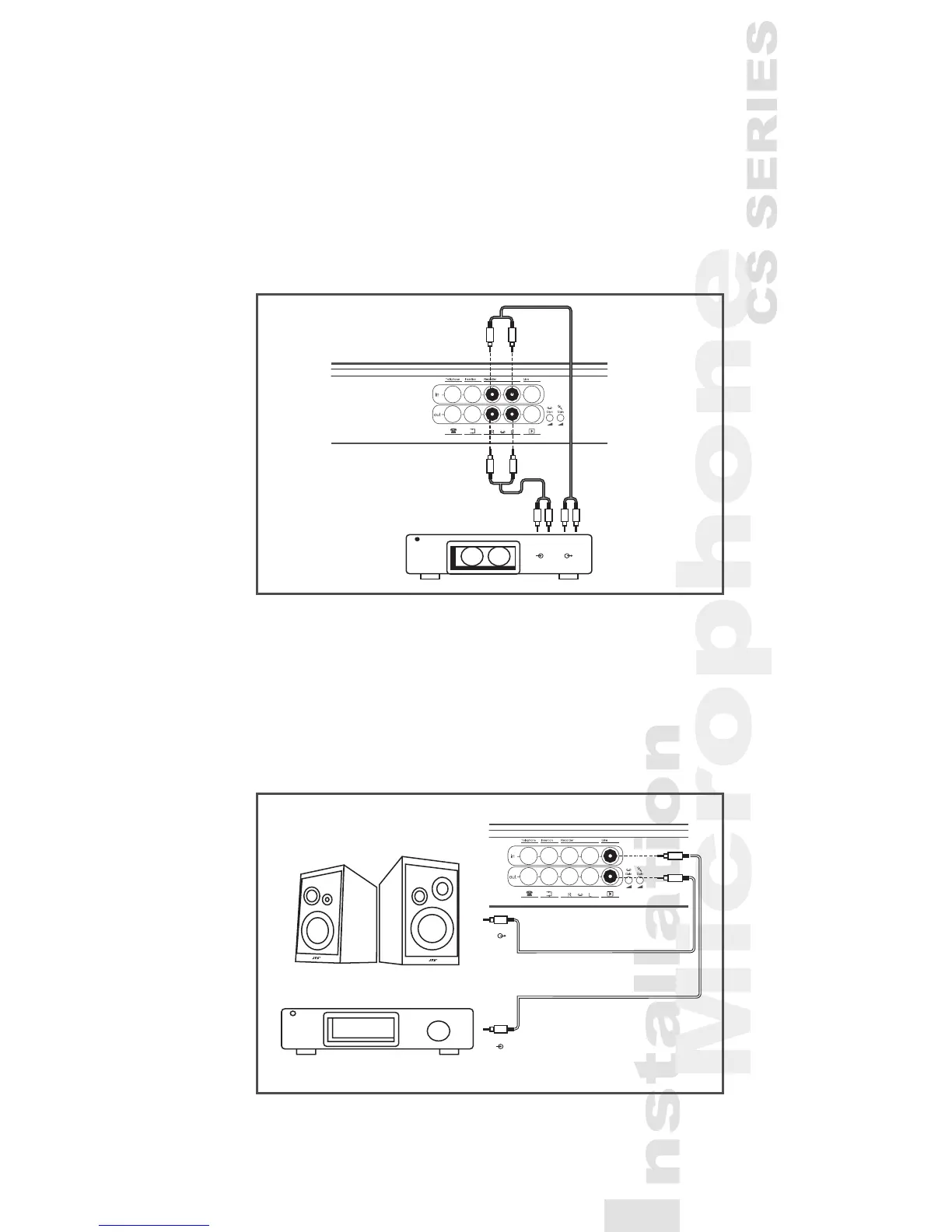

4.5 Recording | Playing back the discussion Voltage:
1) Connect a recorder to the recorder input and output by
two pairs of RCA cable.
2) Adjust the sensitivity by using the gain control 1
4.6 Connecting a PA-system | other external equipment
1) Connect audio sources to the line input by a RCA cable.
2) Connect a PA-system or other devices to the line output
by inout a RCA cable.
outin
out
in
audio sources
PA-system
