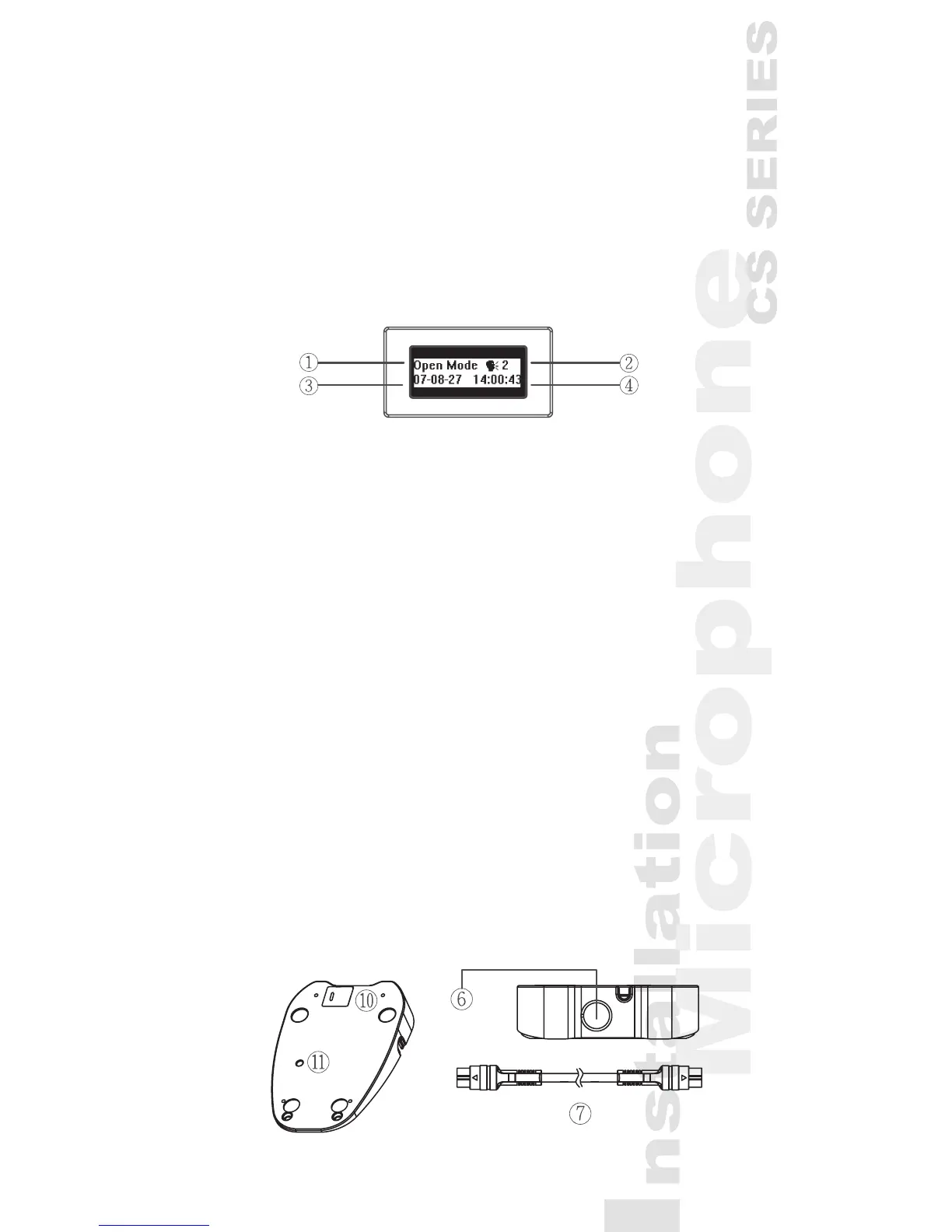

3.1.3 LCD Display
1) Mode status: show the discussion mode
2) Simultaneously user number: the maximum number of
simultaneously active users is four.
3) Date | Set: While setting, “Set” will ash.
4) Time:
3.2 Delegate and Chairman unit
1) Gooseneck Microphone
2) Two 3.5mm stereo headphone sockets
3) Rotary volume control: control the volume level of the
headphone.
4) Ring & Microphone “On” indicator: While microphone
is activated, both indicators will light up.
5) Loudspeaker
6) 7-pole circular female socket *
7) 7 pole circular male connection cable
8) Microphone ON/OFF push-button
9) Chairman Priority button
10) Priority button setting switch: The default setting
is“A”, meaning when releasing the priority button, the
microphone on delegate units will be re-activated. When
switching to “B”, the microphone on delegate units
won’t be reactivated after the priority button is released.
11) Gooseneck Microphone Gain Control: Control the vol-
ume of the microphones on the chairman and delegate
units.
* Note: Hot swapping is forbidden.
