– 9 –

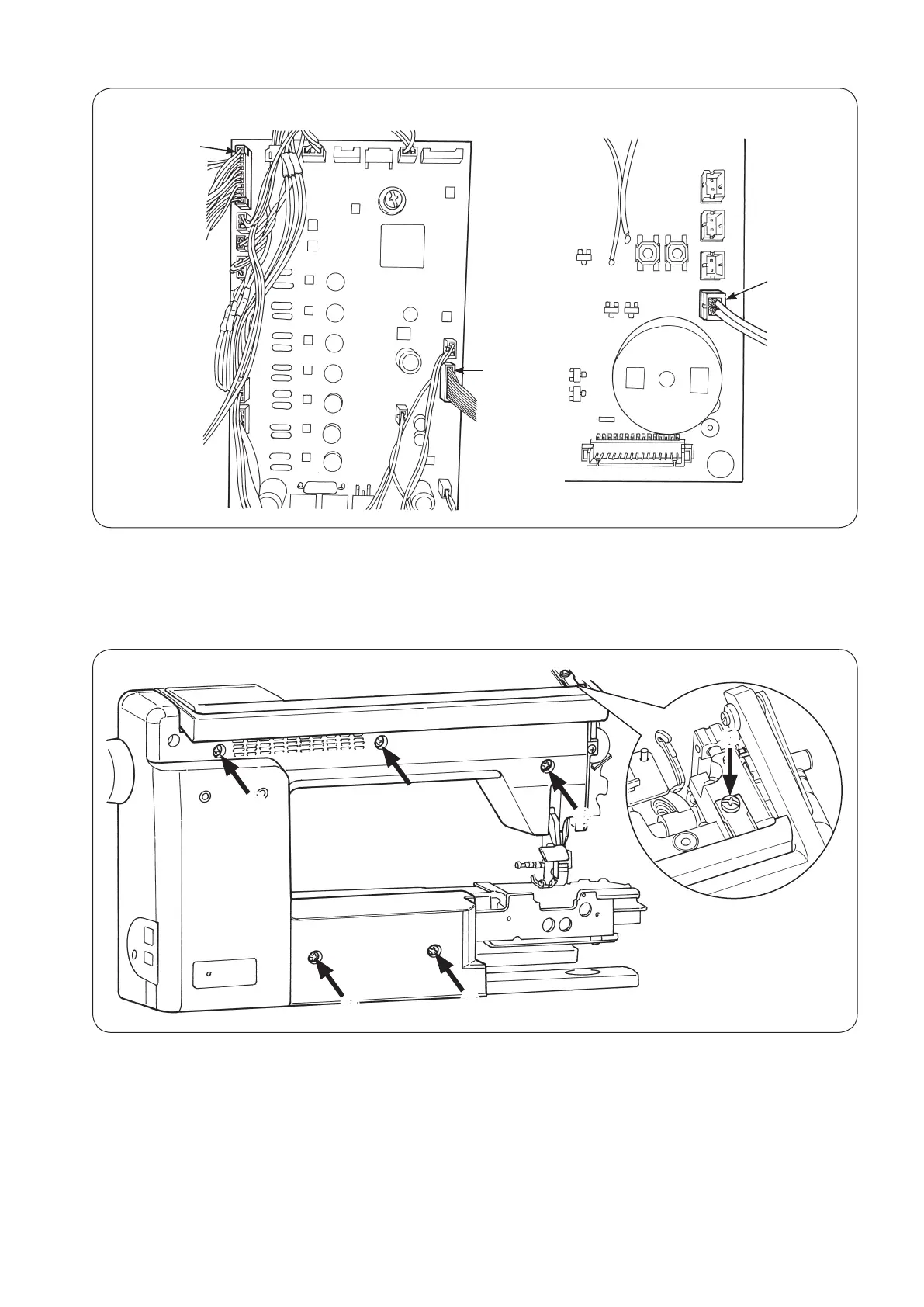

10) Rear panel
○
Remove setscrews
󱣇
to
󱣌
from the rear panel.
Remove the rear panel with the presser foot lifting lever raised.
Main PCB
Panel I/F
(CN19)
SW/slide
volume PCB
(CN17)
LED1
(CN208)
Panel PCB
󱣊
󱣌
󱣋
󱣇
󱣈
󱣉
