6-11 Adjusting the needle thread tension
○

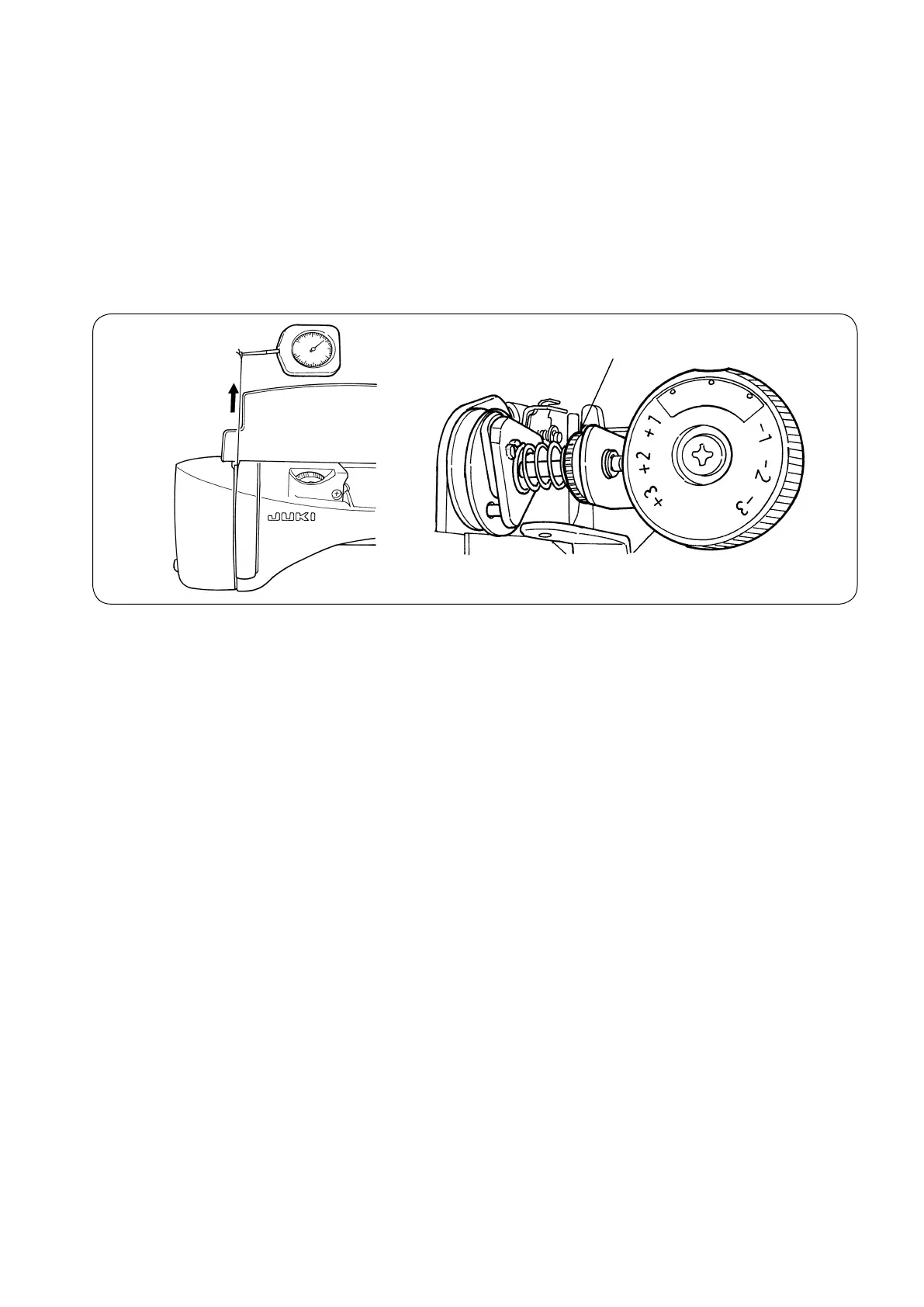

Remove the thread tension cover.
Adjustmentprocedure
1. Raise the presser foot lifting lever.
 2.Turnthethreadtensionadjustmentdialtobringits"AUTO"sectiontothetop.
 3.PrepareSHAPPESpanthread#60andatensiongauge.Threadthebasetensionandthetensiondisk.
 4.Lowerthepresserfootliftinglever.Turntheadjustingnuttoadjustthetensionsothatthetensiongauge
gives a reading of 0.49 to 0.59 N.
Adjusting nut
A U
T O
