JUKI IP-110 Type F User Manual

- 4 -

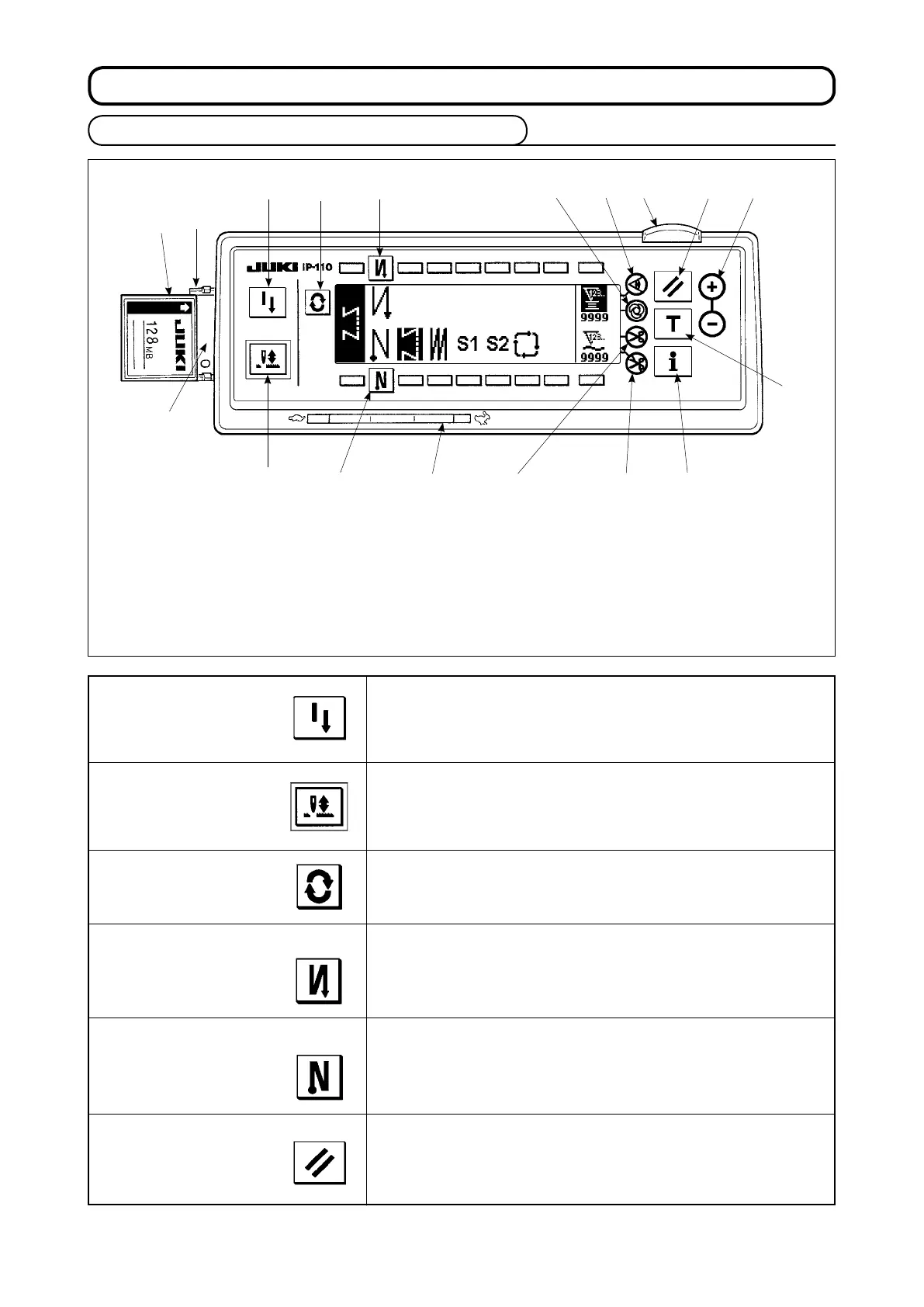

5. EXPLANATION OF THE OPERATION PANEL
5-1. Names and functions of each components
1
Re-sewing switch
2
Needle up/down compensating switch
3
Screen changeover switch
4
With/without reverse feed stitch at sewing start switch
5
With/without reverse feed stitch at sewing end switch
6
Reset switch
7
Teaching switch
!5
Power display lamp
!6
Media cover
!7
Media slot
(Media inserting opening)
!8
CompactFlash(TM)
(Optional : Part No.40091100)
8
Information switch
9
Material edge sensor switch
!0
One-shot automatic sewing switch
!1
With/without automatic thread trimmer switch
!2
Thread trimming prohibiting switch
!3
Counter value setting switch
!4
Max.speed limitation variable resistor
1
Re-sewing switch
2
Needle up/down
compensating switch
3
Screen changeover
switch
4
With/without reverse feed stitch
at sewing start switch
5
With/without reverse feed stitch
at sewing end switch
6
Reset switch
This switch is used to continue sewing from the step on the way
after replacing bobbin thread when bobbin thread has run out
during program stitching step.
This is the switch to perform needle up/down compensating stitching.
(Needle up/down compensating stitching and one stitch compensating
stitching can be changed over with function setting No. 22.)
This is the switch to change over the screen.
This is the switch to turn ON/OFF automatic reverse feed stitch
at sewing start.
* This switch cannot be used with the sewing machine which is
not provided with automatic reverse feed stitching device.
This is the switch to turn ON/OFF automatic reverse feed stitch
at sewing end.
* This switch cannot be used with the sewing machine which is
not provided with automatic reverse feed stitching device.
This is the switch to make the value of bobbin thread counter or
sewing counter the set value.
!6
1
!7
3 4
!0
9
2
5
!4
!5
6
!3
7
!2
8
!1
!8

JUKI IP-110 Type F Specifications

General

Brand	JUKI
Model	IP-110 Type F
Category	Sewing Machine
Language	English
