KE2000 Installation Manual
21
7-3. Center station on the Y-axis drive side (For model 2030 only)
Remove the band fixing the transport unit of the Y-axis drive side (front reference and
rear reference, right side when viewed from the front) to detach the packing material put
between the base bridge and transport base.

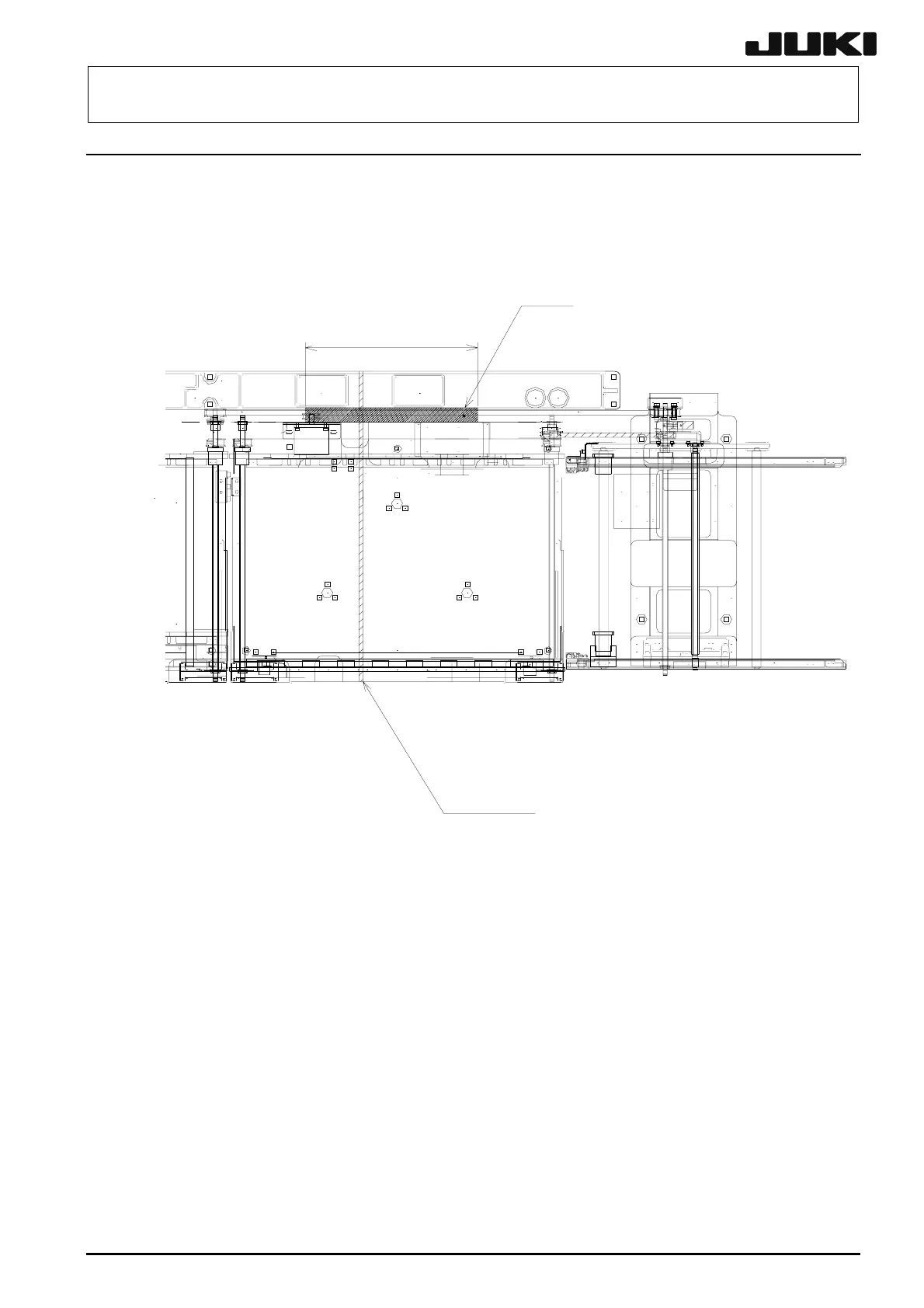

Fig ７－3－１
300
reference size
Packing material
Belt
uttin
osition
