KE-2050/KE-2060, KE-2050R/2055R/KE-2060R Maintenance Manual
5-15
Rev. 2.00
5-14. Replacing the Centering Pin
(1) Loosen the screws , and of the guide blocks and to detach the centering pin
together with the guide blocks.

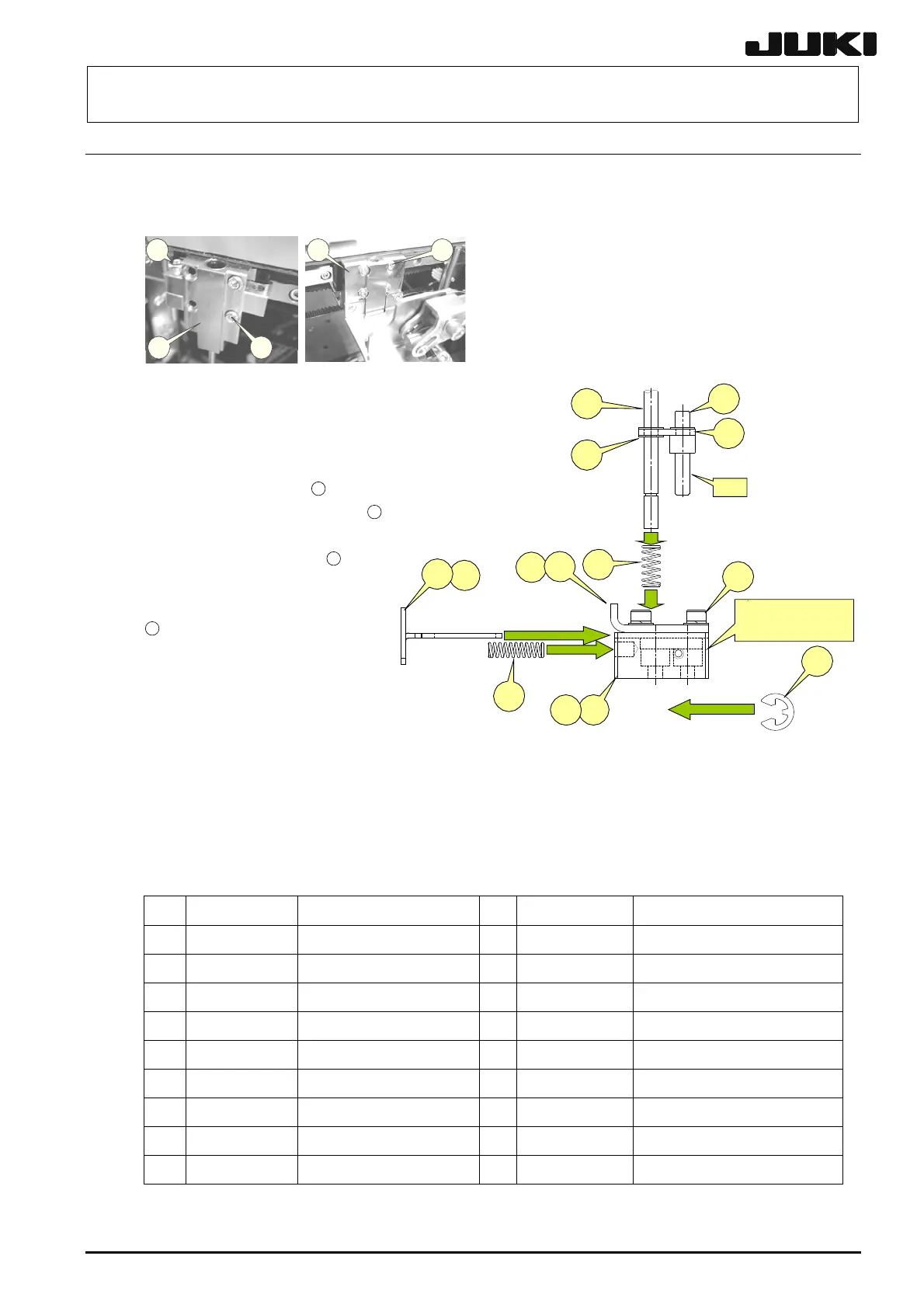

Figure 5-14-1
(2) At this time, also detach the
T-PIN sensor (together with its
bracket) from the reference
side.
Removing the E ring
12
allows
you to pull the centering pin
17
from the damper block.
Removing the E rings
16
(two
in total, top and bottom) allows
you to remove the centering pin
17
.
When installing a new
centering pin, reassemble the
components in the reverse
order. The E-rings must also be
replaced with new ones.
After the components have
been reassembled, adjust the
sensor position in the same
manner as described in 5-10,
Replacing the T-PIN Sensor.
Part No. Part name
Part No. Part name
1 40000886 GUIDE_BLOCK_ASM 10
40000895 DAMPER_BLOCK_R
2 40000887 GUIDE_BLOCK_A_ASM 11
SL6030892TN SCREW
3 40000889 GUIDE_BLOCK_B_ASM 12
RE0300000K0 E-RING
4 40000891 STOPER_SLIDE_LEVER_L 13
40000896 DAMPER_LOCK_PIN
5 40000897 STOPER_SLIDE_LEVER_R
14
40000978 DAMPER_LOCK_LINK
6 40000892 DAMPER_BLOCK_L 15
40000950 DAMPER_SPRING
7 40015791 DAMPER_PLATE_L 16
RE0300000K0 E-RING
8 40015792 DAMPER_PLATE_R 17
- CENTERING_PIN
9 40015793 LOCK_SPRING 18
２
１ ３
４ ５
⑦
④
⑰
⑬
⑭
⑯
Ａ
⑤
⑨
⑮
⑧
⑪
Ｂ部
右側＝⑧＋⑩＋⑪
左側＝⑦＋⑥＋⑪
⑫
⑩⑥
Figure 5-14-2
Section B
Right side = ⑧+⑩+⑪
Left side = ⑦+⑥+⑪
To Next Page
