JUMO EM Series User Manual

15

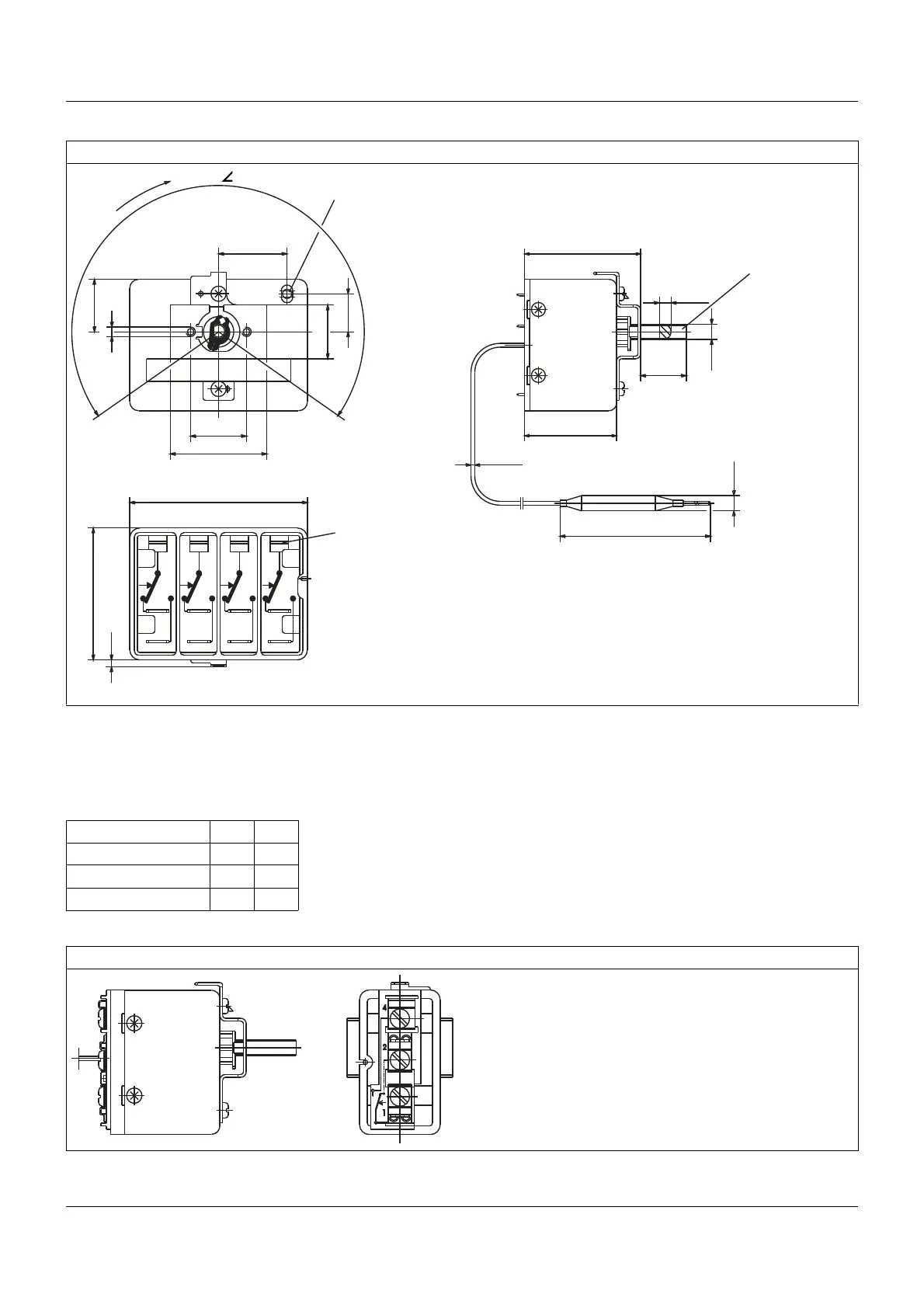

4 Mounting
EMF-1333, EMF-2333, EMF-3333
(1)
(3)
A
I
IV
1
1
4
4
2
2
II
1
4
2
III
1
4
2
(2)
G
21
15
21
B
°C
250
°
27
38
3
52
70
Ø
d
Ø 1.5
4.6
L
6
Ø
46
36.5
18
~
(1) Restart knob only with abbreviation 4444
(2) Not applicable with abbreviation 2, 3, 4, 5
(3) Tab connector DIN 46244-A6,3-0,8
(A) Rear view
BG
Standard 22 M3
Extra code 704 28 M4
Extra code 705 33 M3
Screw connection EM-1, extra code 699

JUMO EM Series Specifications

General

Housing Material	Plastic
Temperature Range	-50 to 400°C
Display	LCD
Power Supply	24 V AC/DC
Output	Relay, Analog
Input	Analog
Control Mode	PID, On/Off
