JUMO EM Series User Manual

4 Mounting
16

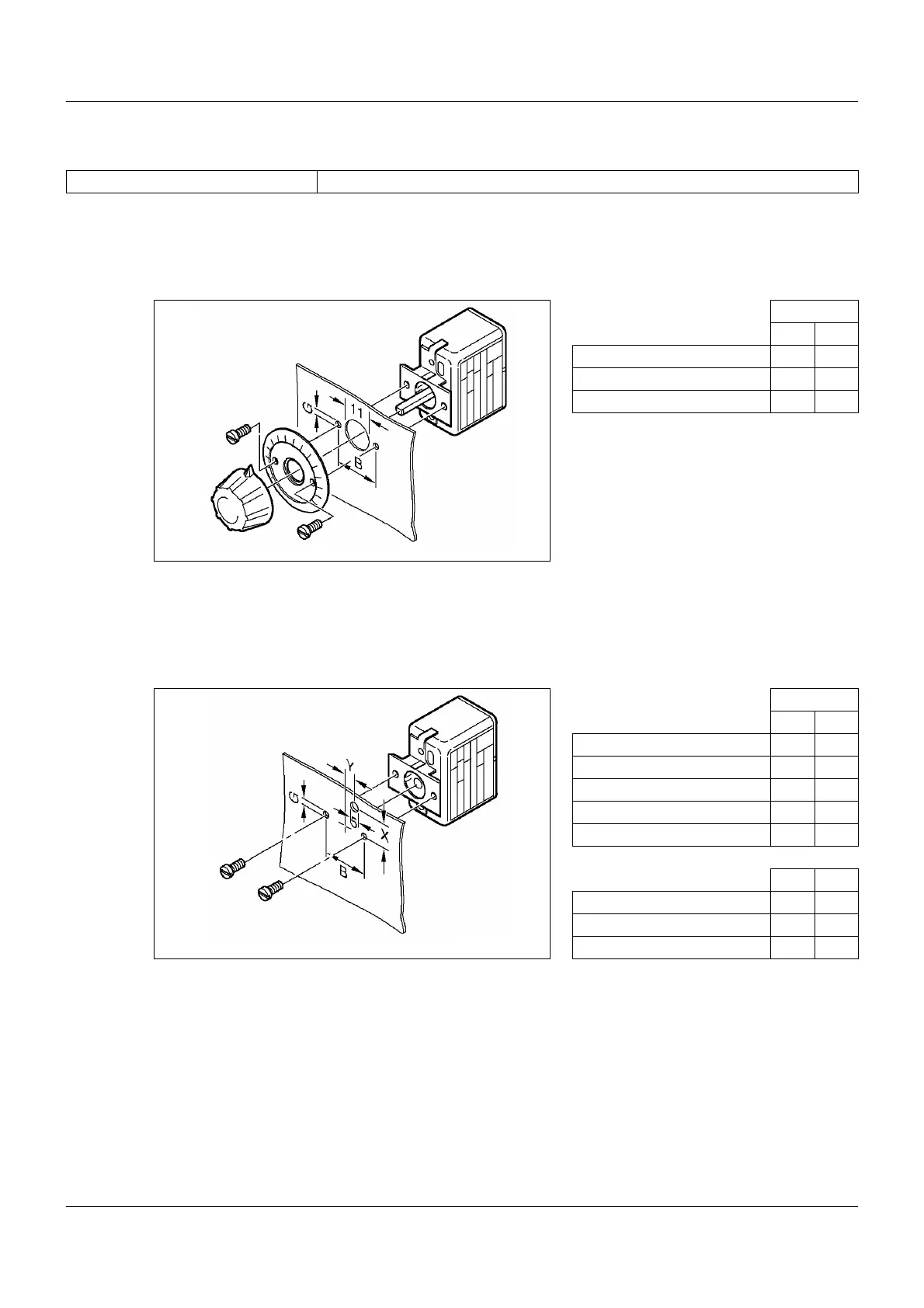

4.2 Fixing the panel-mounted thermostat
4.2.1 Mounting the switching head
EM-1
Mounting the switching head with 2 screws M3 on chassis (M4 with extra code 704).
EM-2, EM-3, EM-4, EM-5, EM-20, EM-30, EM-30, EM-40, EM-44, EM-50, EMF-54, EMF-444, EMF-544
Mounting the switching head with 2 screws M3 on chassis (M4 with extra code 704).
Operating position Any
Dim. (mm)
GB
Standard 3,5 22
Extra code 704 4,5 28
Extra code 705 3,5 33
(1) Screw
(2) Panel
(1)
(1)
(2)
Dim. (mm)
XY
EM-2, EM-3, EM-20, EM-30 - -
EM-4, EM-5 15 6
EM-40, EM-50 15 11
EM-44, EMF-54 15 11
EMF-444, EMF-544 15 19
GB
Standard 3,5 22
Extra code 704 4,5 28
Extra code 705 3,5 33
(1) Screw
(2) Panel
(1)
(1)
(2)

JUMO EM Series Specifications

General

Housing Material	Plastic
Temperature Range	-50 to 400°C
Display	LCD
Power Supply	24 V AC/DC
Output	Relay, Analog
Input	Analog
Control Mode	PID, On/Off
