6 Settings
6 Settings

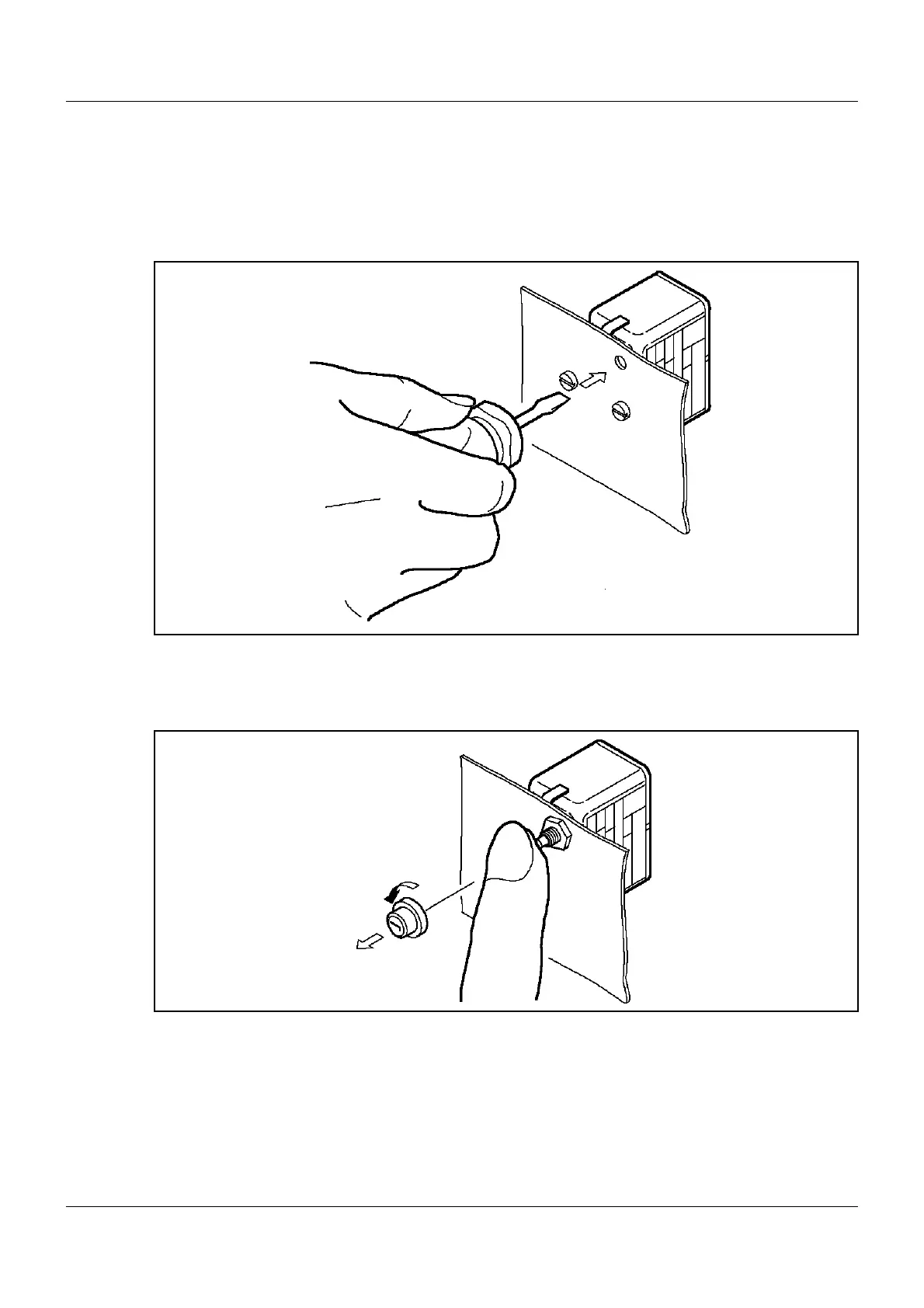

6.1 Unlocking the TB or STB
EM-4, EMF-4.., EM5-, EMF-5.., EM-40, EM-50 with switching head mounting
Extra code 704, 705
After the temperature has dropped by about 10 % of span below the set limit(critical temperature), the
microswitch can be reset.
1. Push the reset button using a small screwdriver.
EM-4, EMF-4.., EM5, EMF-5.., EM-40, EM-50 with central mounting
Extra code 710
1. Unscrew cap.
2. Press reset button.
3. Screw cap back into position.

JUMO EM Series Specifications

General

Housing Material	Plastic
Temperature Range	-50 to 400°C
Display	LCD
Power Supply	24 V AC/DC
Output	Relay, Analog
Input	Analog
Control Mode	PID, On/Off
