3 Identifying the device version
3 Identi fying t he device version
3.1 Nameplate

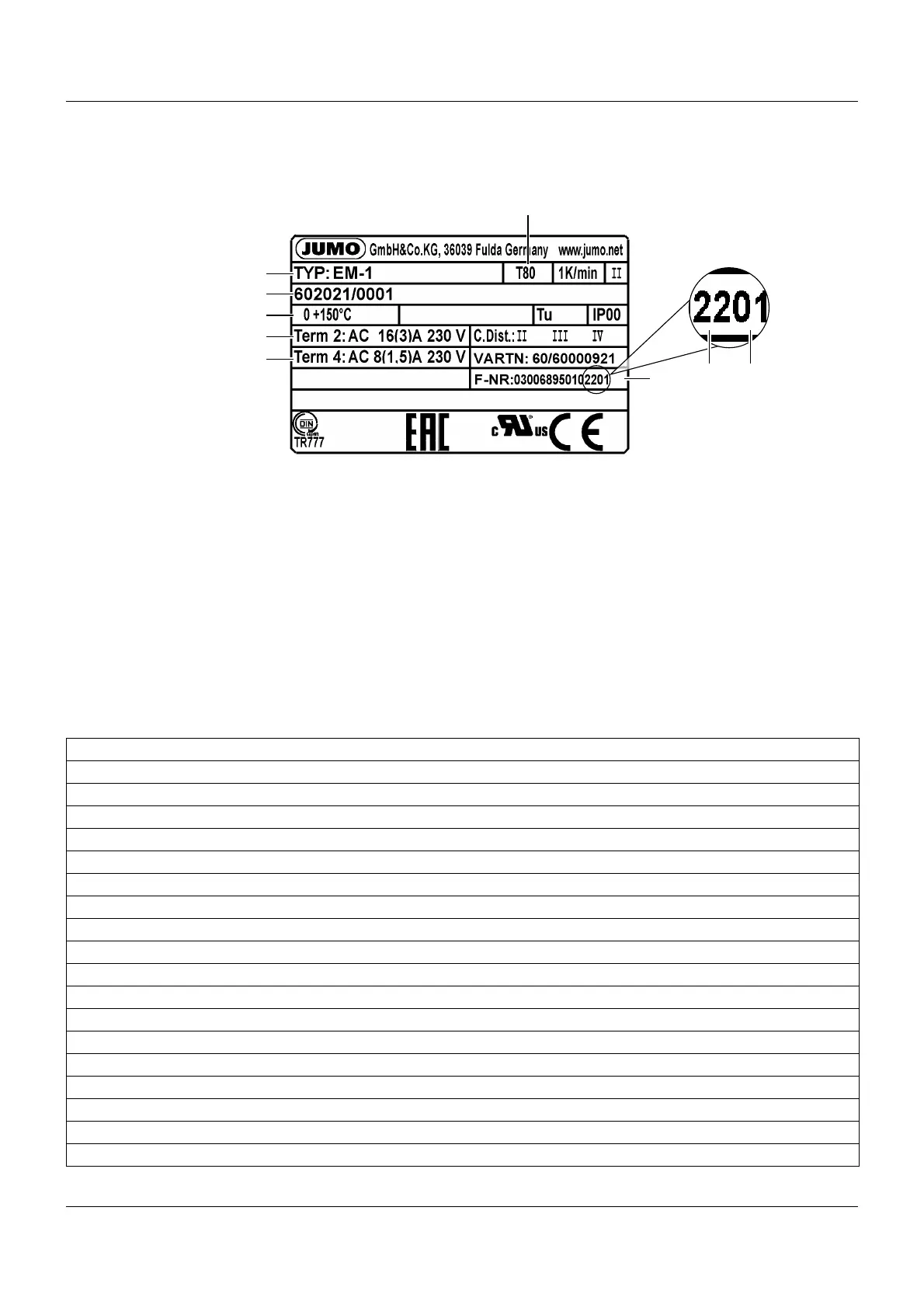

Exemplary marking on the device housing:
3.2 Order details
(1) Type
(2) Order code
(3) Regulating or limit value range/ambient temperature at which this thermostat was calibrated (op-
tion)
(4) Switching capacity
(5) Permissible ambient temperature
(6) Fabrication number
(7) Year of manufacture
(8) Week of manufacture
(5)
(3)
(4)
(2)
(1)
(6)
(4)
(8)
(7)
(1) Basic type
603031 Panel-mounted thermostats, EM Series
(2) Basic type extensions
0001 EM-1 Temperature controller (TR), 1-pole
0002 EM-2 Temperature monitor (TW), 1-pole
0003 EM-3 Temperature monitor (TW), permanently set, 1-pole
0004 EM-4 Temperature limiter (TB), permanently set, 1-pole
0005 EM-5 Temperature limiter (TB, 1-pole
0013 EM-13 Temperature controller (TR/TW), 2-pole
0014 EM-14 Temperature controller (TR/TB), 2-pole
0020 EM-20 Safety temperature monitor (STW (STB))
0023 EM-23 Temperature monitor (TR/TB), 2-pole
0024 EM-24 Temperature monitor (TW/TB), 2-pole
0030 EM-30 Safety temperature monitor (STW (STB)), permanently set
0033 EM-33 Temperature monitor (TW/TW), 2-pole
0040 EM-40 Safety temperature limiter (STB), permanently set
0044 EM-44 Temperature limiter (TB/TB), 2-pole
0050 EM-50 Safety temperature limiter (STB)
0054 EMF-54 Temperature limiter (TB/TB), 2-pole
