JUNCTEK
JDS8000 Series User’s Manual
33
Gate time setting
Press the soft key
to make the cursor at the position of the gate.
Use the
InBox
button to input the desired gate time in the input box.
The gate time range is 0.001s to 10s, the default is 1s.
Measurement Mode
Press the soft key
to place the cursor at the position of the measurement
mode, and switch the measurement mode to low frequency (<2kHz) or high
frequency (>2kHz) by adjusting the knob.
Measurement parameters: frequency, period, positive pulse width,
negative pulse width, duty cycle.
(2) Counter function
The number of periods of the input signal can be calculated in real time, and
the input signal amplitude range is 2Vpp-20Vpp.
Coupling settings
Press the soft key
to make the cursor at the coupling position, and switch
the coupling mode between AC (AC) or DC (DC) by adjusting the knob.
After setting all items, press
soft key to start counter function, press
soft key to stop, press
soft key to restore to default setting.
7. System Settings
Press the
SYS
button to enter the system setting interface, and press the
soft keys to select items such as clear memory, sound, brightness,
language, built-in waveforms, arbitrary waveforms, waveform loading mode,
and system information.

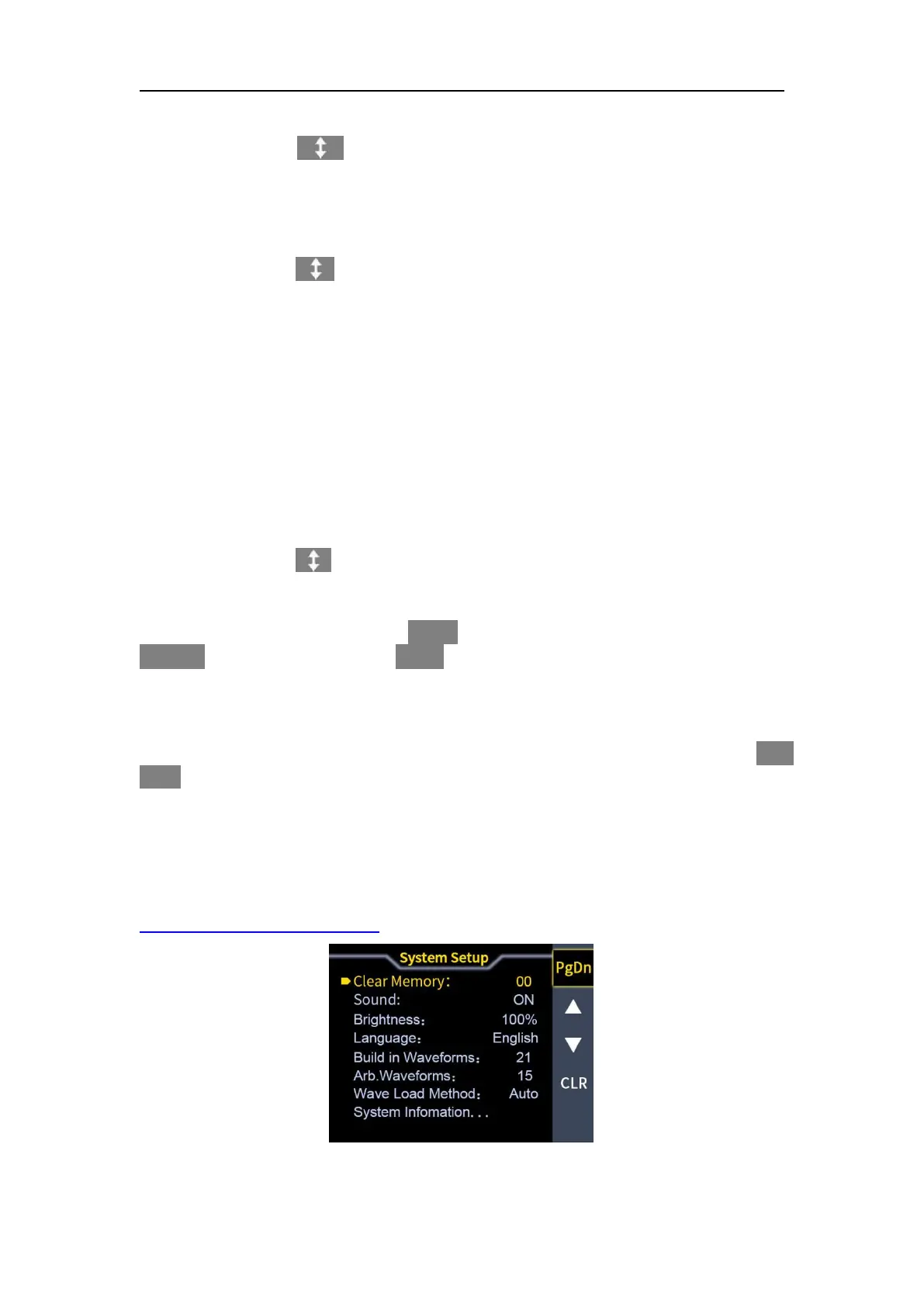

The system setting interface is shown in Figure 3-7-1 below.
System settings description video link
https://youtu.be/RfROVh-Ne9U
Figure 3-7-1 system interface
