JUNCTEK JDS8000 Series User Manual

JUNCTEK
JDS8000 Series User’s Manual
8
Chapter
Ⅱ
Instrument Introduction
1. Front Panel Overview

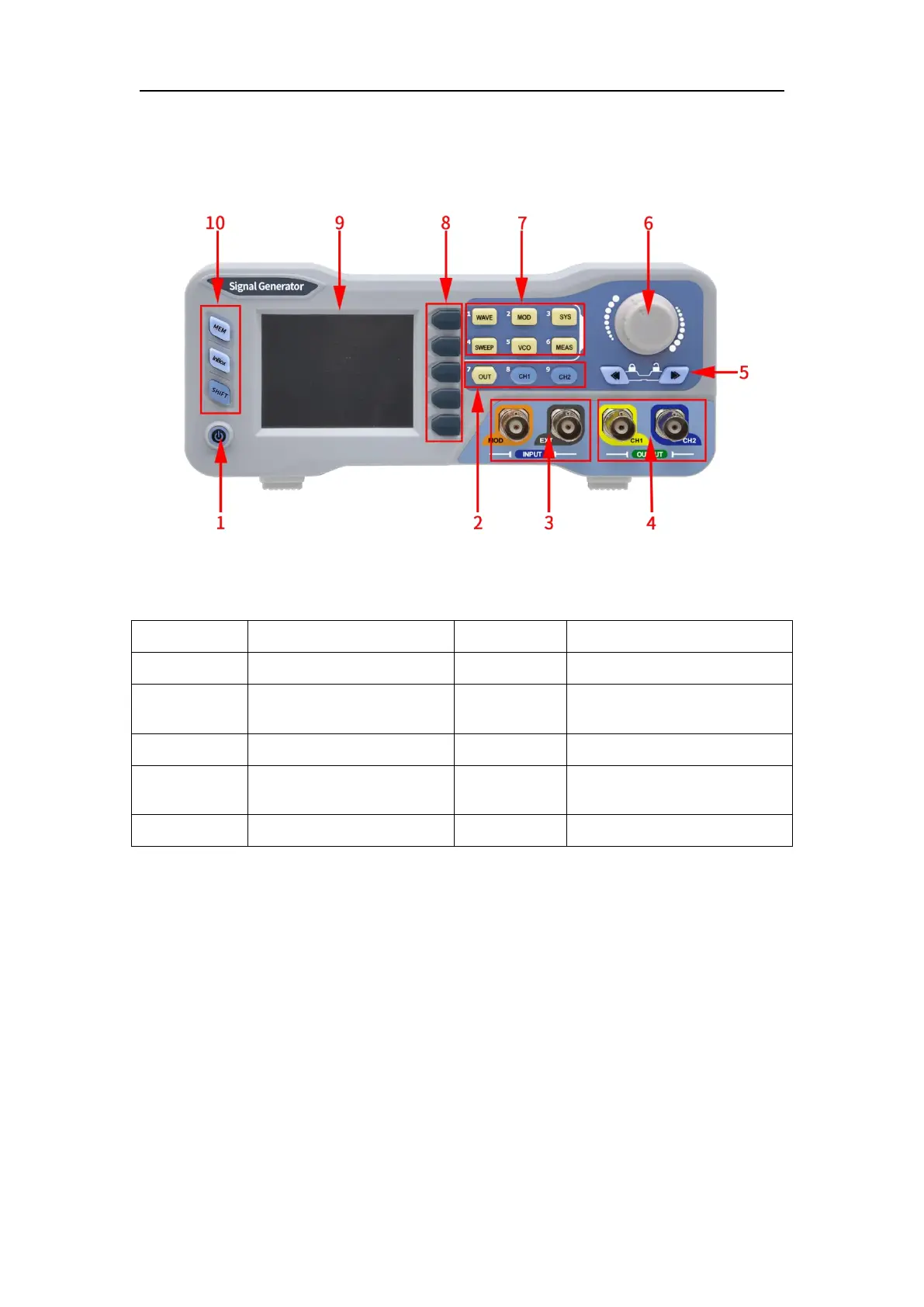

Figure 2-1-1 JDS8000 series front panel
Table 2-1-1 PSG9000 front panel diagram instructions
Label
Introduction
Label
Introduction
1
Power switch
6
Knob
2
Channel Control
Keypad
7
Function shortcut keys
3
Signal input connector
8
Function soft keys
4
Signal output
connector
9
LCD
5
Arrow keys
10
Shortcut keys
(1) Power switch
The power switch is used to turn on or off the generator .
(2) Channel Control Keypad
 CH1 button
Output switch for controlling CH1.
Press the CH1 button, the CH1 channel indicator lights up, and the CH1 output
is enabled. At this time, the CH1 connection port outputs the signal with the
current configuration.
Press the CH1 button again, the CH1 channel indicator is off, and at this time,
the CH1 output is turned off. When the input box is open, it is the number key
8.
