JUNCTEK JDS8000 Series User Manual

JUNCTEK
JDS8000 Series User’s Manual
12
【
SHIFT
】
Key
To obtain the help information of a front panel key or menu soft key,
pressing the key for which you need to get help massage.
2.Rear Panel Overview

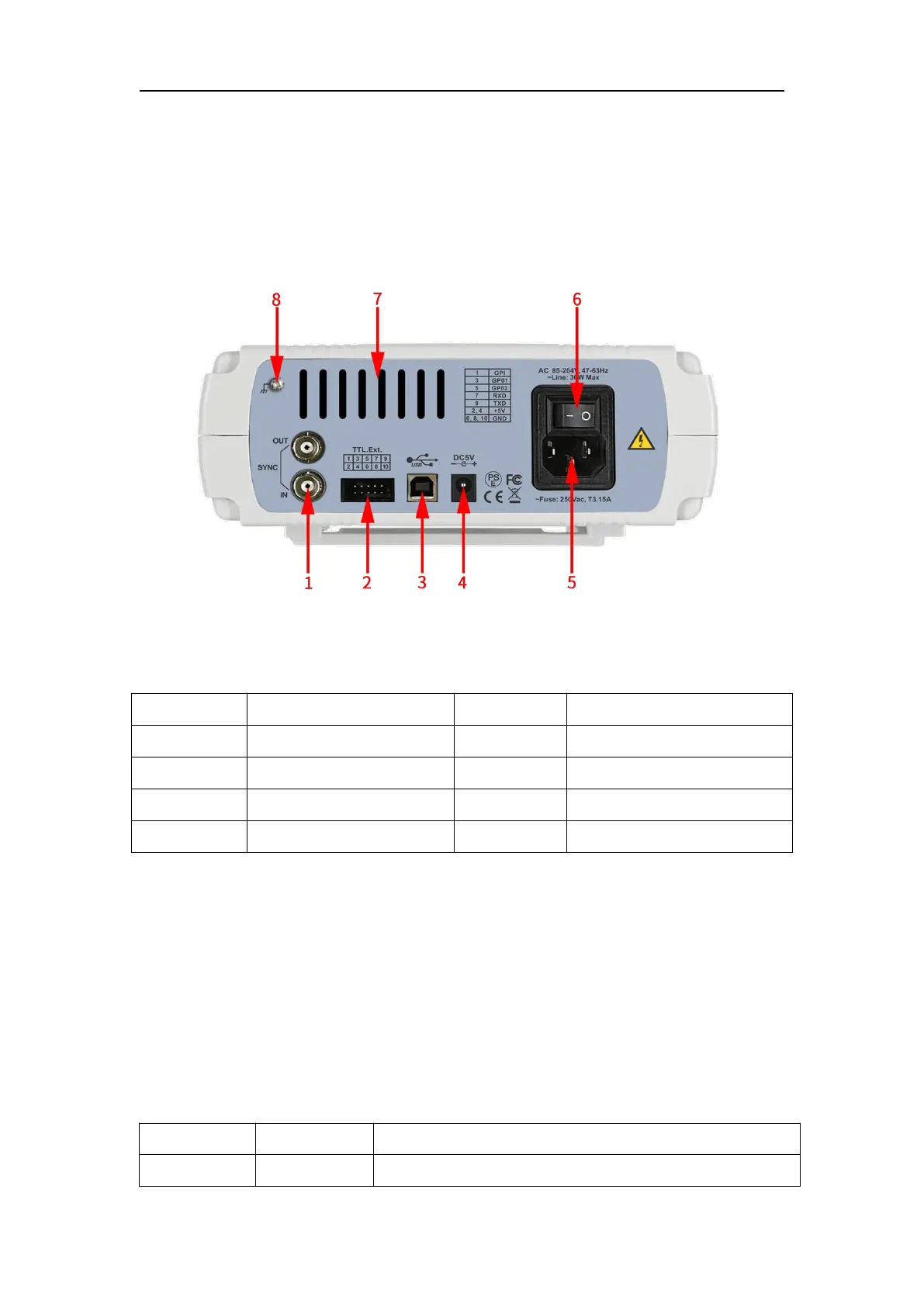

Figure 2-2-1 JDS8000 series rear panel
Table 2-2-1 JDS8000 series rear panel diagram instructions
Label
Instructions
Label
Instructions
1
Sync connectors
5
AC power socket
2
Extension interfaces
6
Switch
3
USB interface
7
Cooling holes
4
DC power socket
8
Chassis Ground
(1) Sync Connectors
Through this connectors, the instrument can synchronize the output of other
machines in the same series and be synchronized by other machines in the
same series.
(2) Communication Extension Interface:TTL Digital Signal Output and
Measurement Interfaces
The serial port with TTL level mode is convenient for users' secondary
development.
1
GPI
Digital signal input interface
3
GPO1
Digital signal output interface 1
