JUNCTEK JDS8000 Series User Manual

JUNCTEK
JDS8000 Series User’s Manual
36

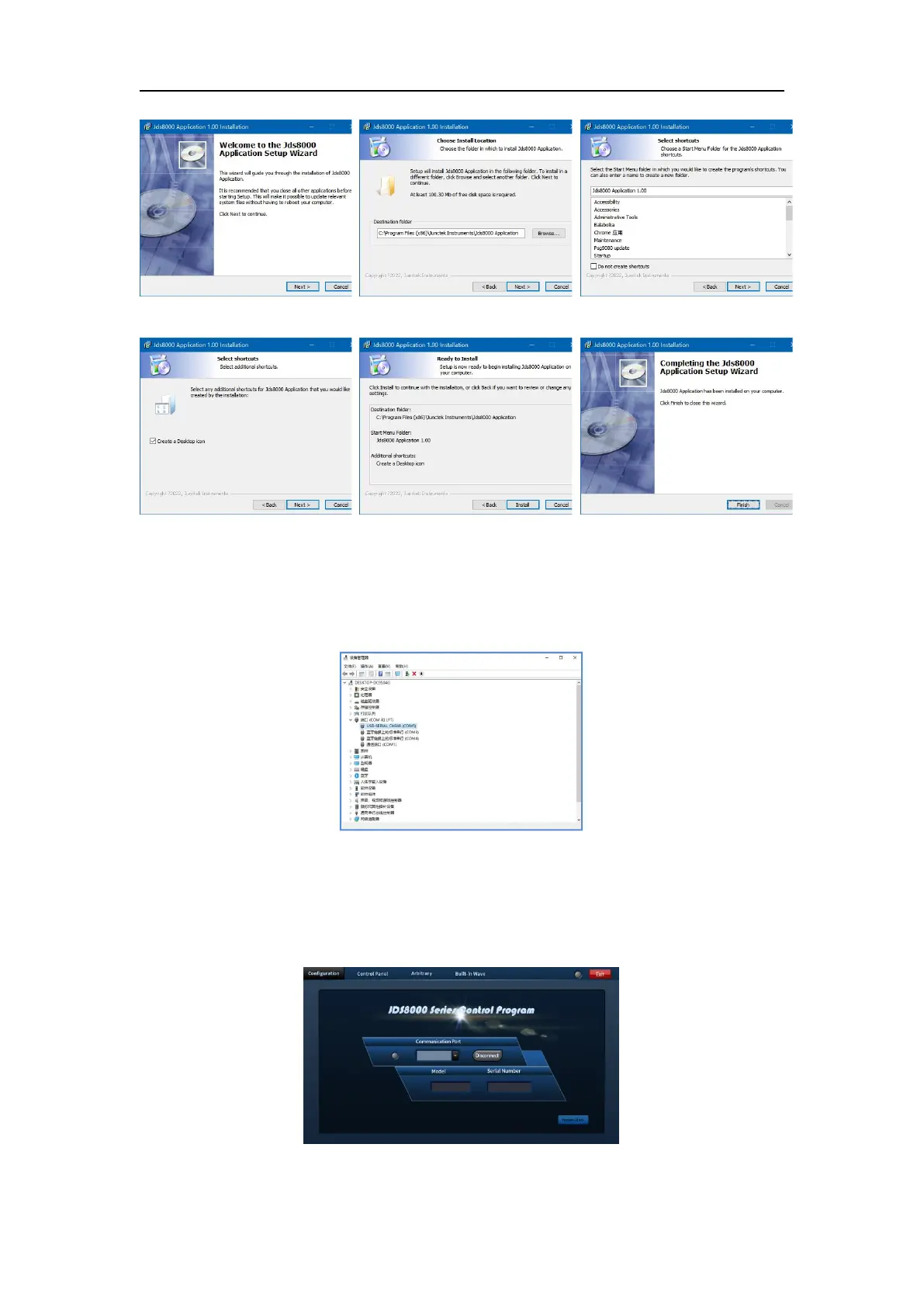

Figure 3-8-1
Figure 3-8-2
Figure 3-8-3
Figure 3-8-4
Figure 3-8-5
Figure 3-8-6
(2) Connect to the computer
 Step 1: Right-click Computer-Properties-Device Manager-Observe the
serial port assigned by the computer. The computer serial port allocation
interface is shown in Figure 3-8-7 below.
Figure 3-8-7
 Step 2: Open the serial port after selecting the corresponding serial port,
and then select Connect. The Connect interface is shown in Figure 3-8-8
below.
Figure 3-8-8

JUNCTEK JDS8000 Series Specifications

General

Amplitude resolution	1mV
Output impedance	50Ω
Power supply	100-240 VAC, 50/60 Hz
Waveform types	Sine, Square, Pulse, Ramp, Noise, DC
Interface	USB
