6.14 Rockinger coupling with hand lever or remote control
Z Refer to the instructions for towing trailers, see "Towing trailers" on page 135.
CAUTION!
Incorrectly coupled trailers can cause
accidents
XMake sure the coupling is engaged
securely before starting the truck.
XThe contro pin (163) must be flush with
the control sleeve (164).
Rockinger coupling operation (attaching
trailers)
Procedure
• Prevent the trailer from rolling away.
• Adjusting the trailer pull rod to the height of the coupling.
• Pull the hand lever (162) / remote control (161) (o) up.
Z The remote control (161) (o) is located in the overhead guard, depending on the
truck model.
• Slowly reverse the truck until the coupling engages.
• Push the hand lever (162) / remote control (161) (o) down.
Rockinger coupling operation (disconnecting trailers)
Procedure
• Prevent the trailer from rolling away.
• Pull the hand lever (162) / remote control (161) (o) up.
• Drive the truck forward.
• Push the hand lever (162) / remote control (161) (o) down.

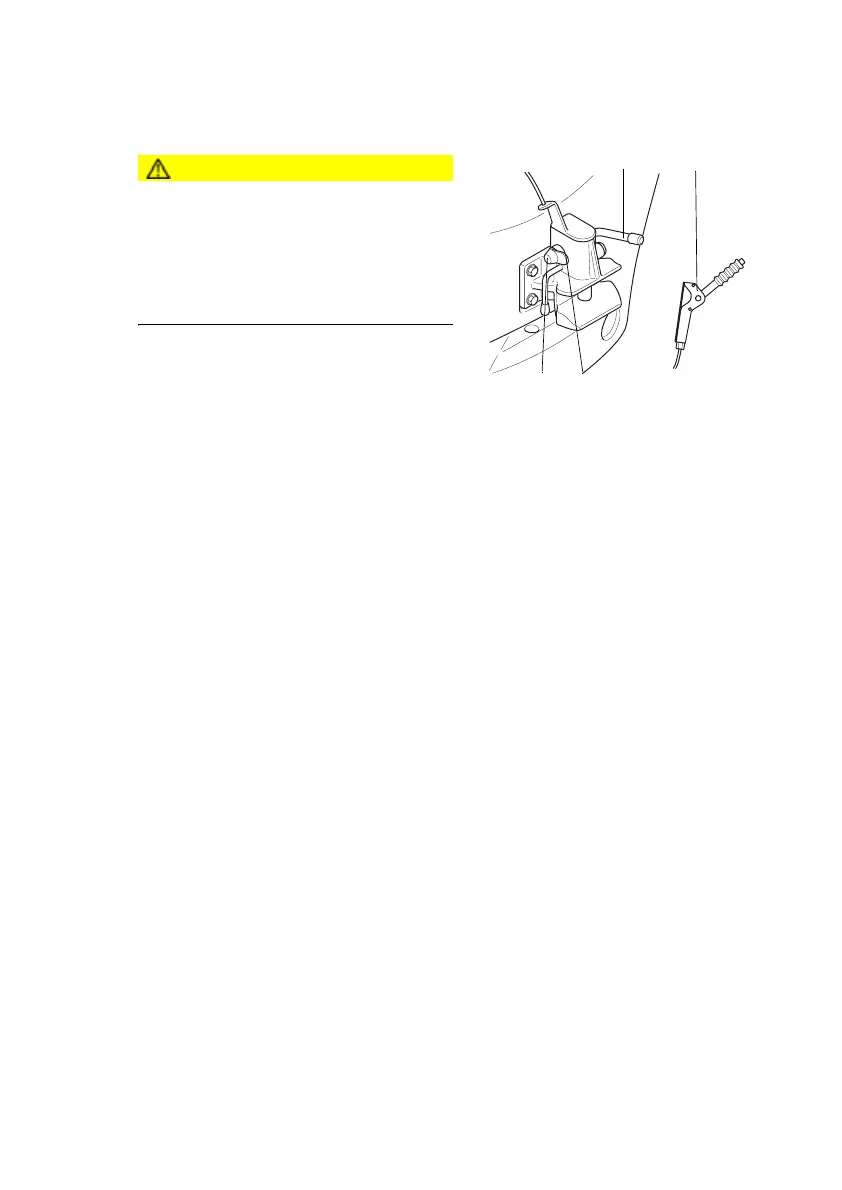

162
161
163
164
