153
03.13 EN

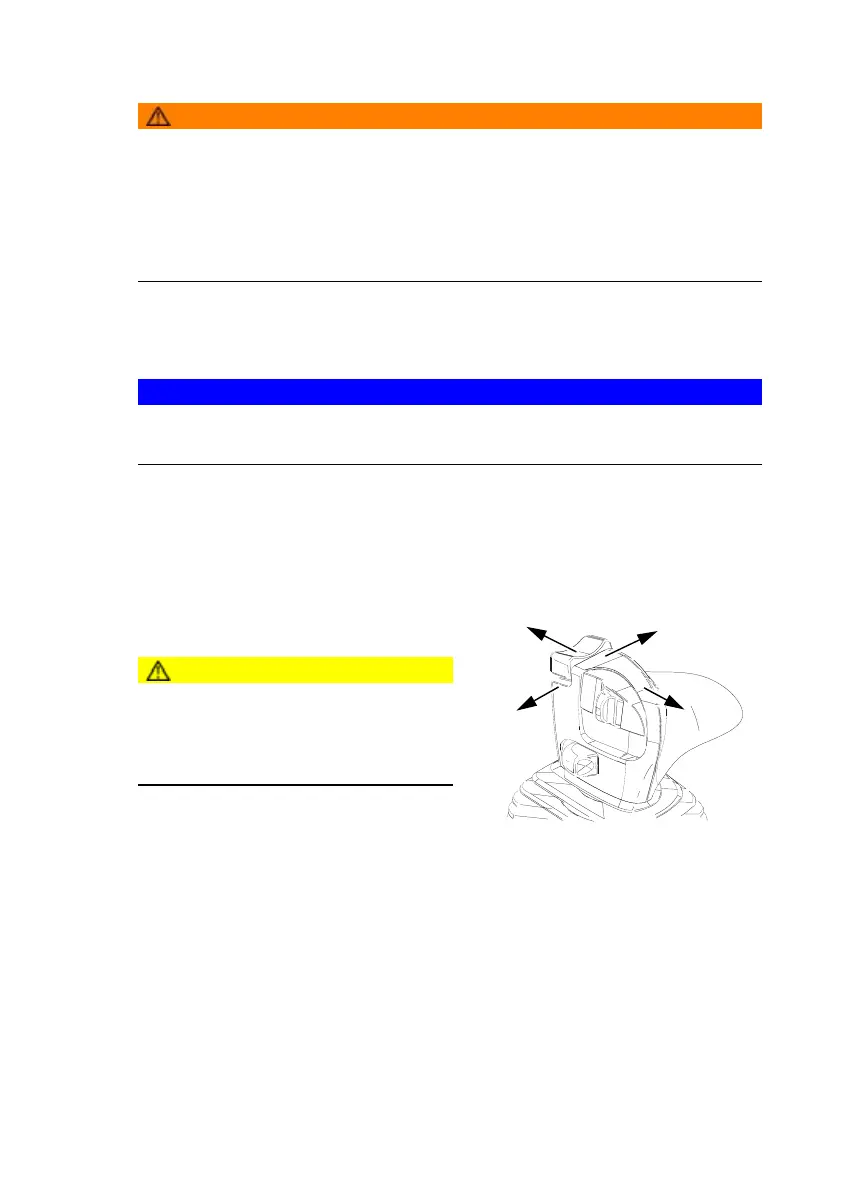

6.16 Control layout “N”
WARNING!
Persons standing under or on a raised load handler are at risk of accidents
Do not allow anyone to stand under or on a raised load.
XDo not stand on the load handler.
XDo not lift any persons on the load handler.
XInstruct other people to move out of the hazardous area of the truck.
XDo not stand underneath a raised and unsecured load handler.
Z With control layout “N”, the lift and tilt functions are swapped compared with the
standard operation. The Multipilot must only be operated from the driver’s seat. The
operator must be trained to handle the lift mechanism and the attachments.
NOTE
XThe lift/lower and tilt speeds are determined by the inclination of the Multipilot. Do
not deposit the load handler suddenly to avoid damaging the load and the racking.
Lifting
Procedure
• Push the Multipilot to the right (direction H) to raise the load.
• Push the Multipilot to the left (direction S) to lower the load.
Tilting
CAUTION!
Trapping hazard from inclined mast
XWhen tilting the mast back, keep all
parts of your body from between the
mast and the front wall.
Procedure
• Push the Multipilot forward (direction V) to tilt
the load forward.
• Pull the Multipilot back (direction R) to tilt the load back.
Z When the limit position for the operation has been reached (there will be a noise
from the pressure relief valve) release the lever. The lever will revert automatically
to neutral.
V
R
H
S
