89
03.13 EN
2.4.3 Residual time display
Setting the residual time display
Procedure

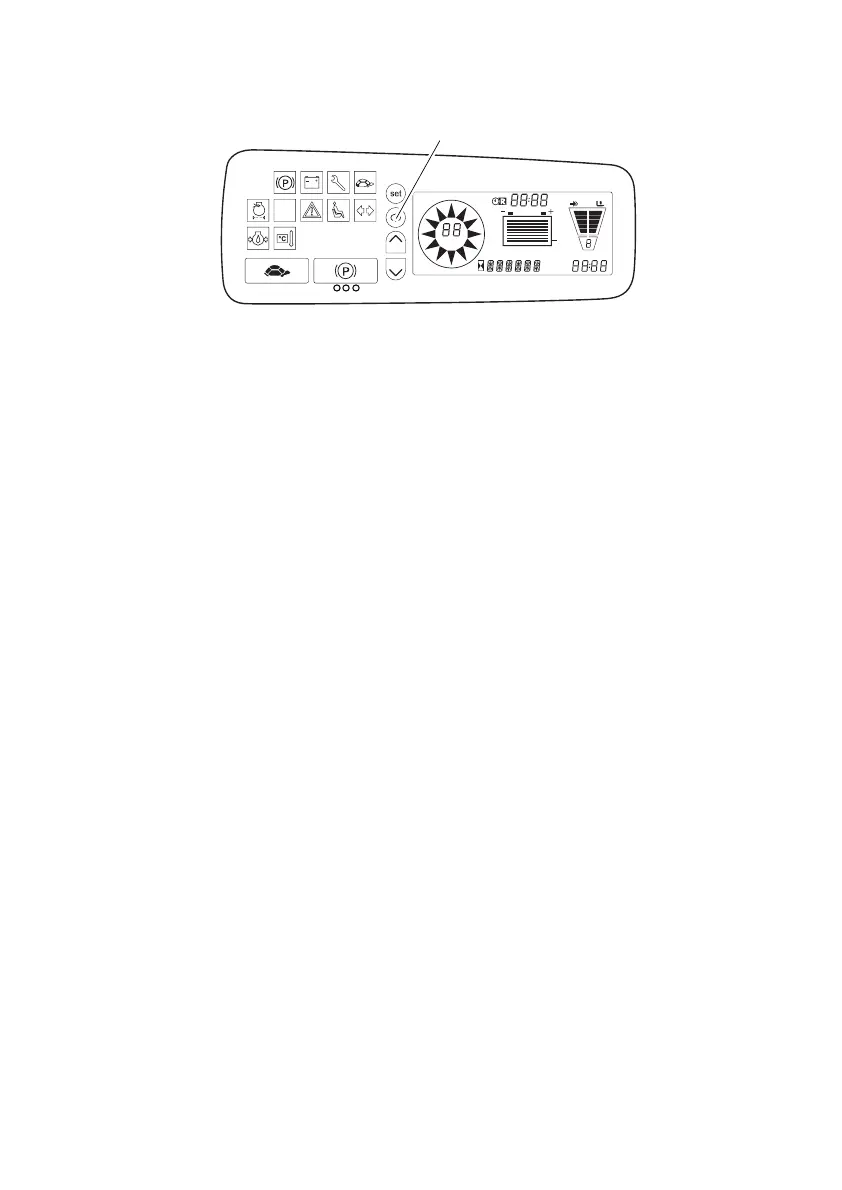

• Press the toggle switch (102) for 3 seconds. This toggles the display between the
time and the residual time or the remaining charge time for an on-board charger
(o).
• Press the Shift key (102) for 8 seconds until the residual time display menu is
shown.
• Press the set key (102) to return to normal operating mode.
The time remaining to reach the residual capacity is displayed.
2.4.4 Hourmeter
The service hours are counted when the truck is switched on and the seat switch is
closed.
km/h
pm
am
100 %
m kg eff code err
inch lbs
102
