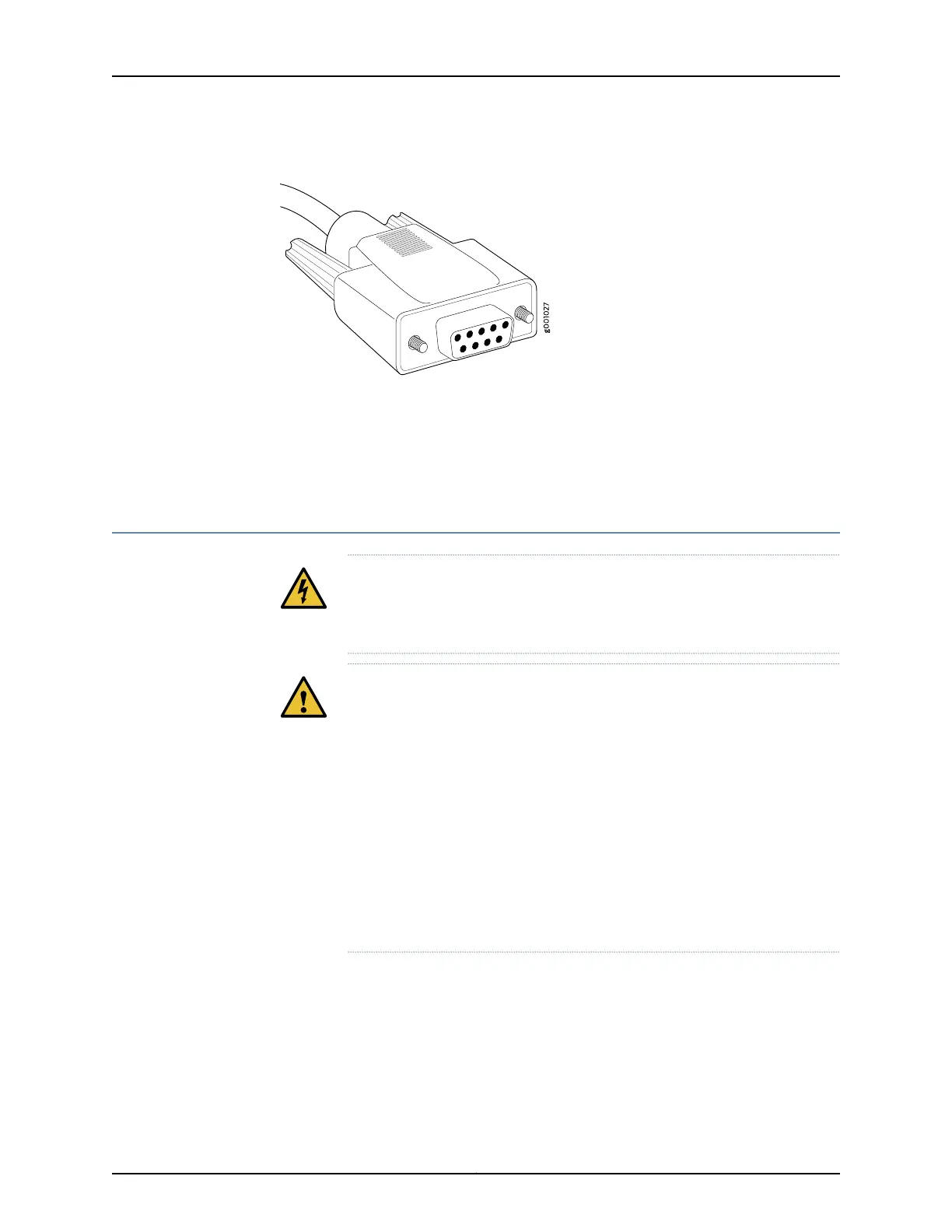

Figure 36: Console and Auxiliary Serial Port Connector
Related
Documentation
Initially Configuring the M7i Router on page 129•
• Connecting Power to an AC-Powered M7i Router on page 123
• Connecting Power to a DC-Powered Router on page 124
Connecting FIC and PIC Cables to the M7i Router
WARNING: Do not look directly intotransceivers or into the ends of fiber-optic
cables connected to a transceiver. Fiber-optic transceivers emit laser light
that can damage your eyes.
CAUTION: When handling fiber-optic transceivers and fiber-optic cable,
observe the following precautions:
•
Do not leave a fiber-optic transceiver uncovered except when inserting or
removing cable. The safety cap keeps the port clean and prevents
accidental exposure to laser light.
•
Do not bend fiber-optic cable beyond its minimum bend radius. An arc
smaller than a few inches in diameter can damage the cable and cause
problems that are difficult to diagnose.
•
Do not let fiber-optic cable hang free from the connector. Do not allow
fastened loopsofcable todangle, which stresses the cableat the fastening
point.
Plug network cables into the FIC and the PICs housed in the router.
