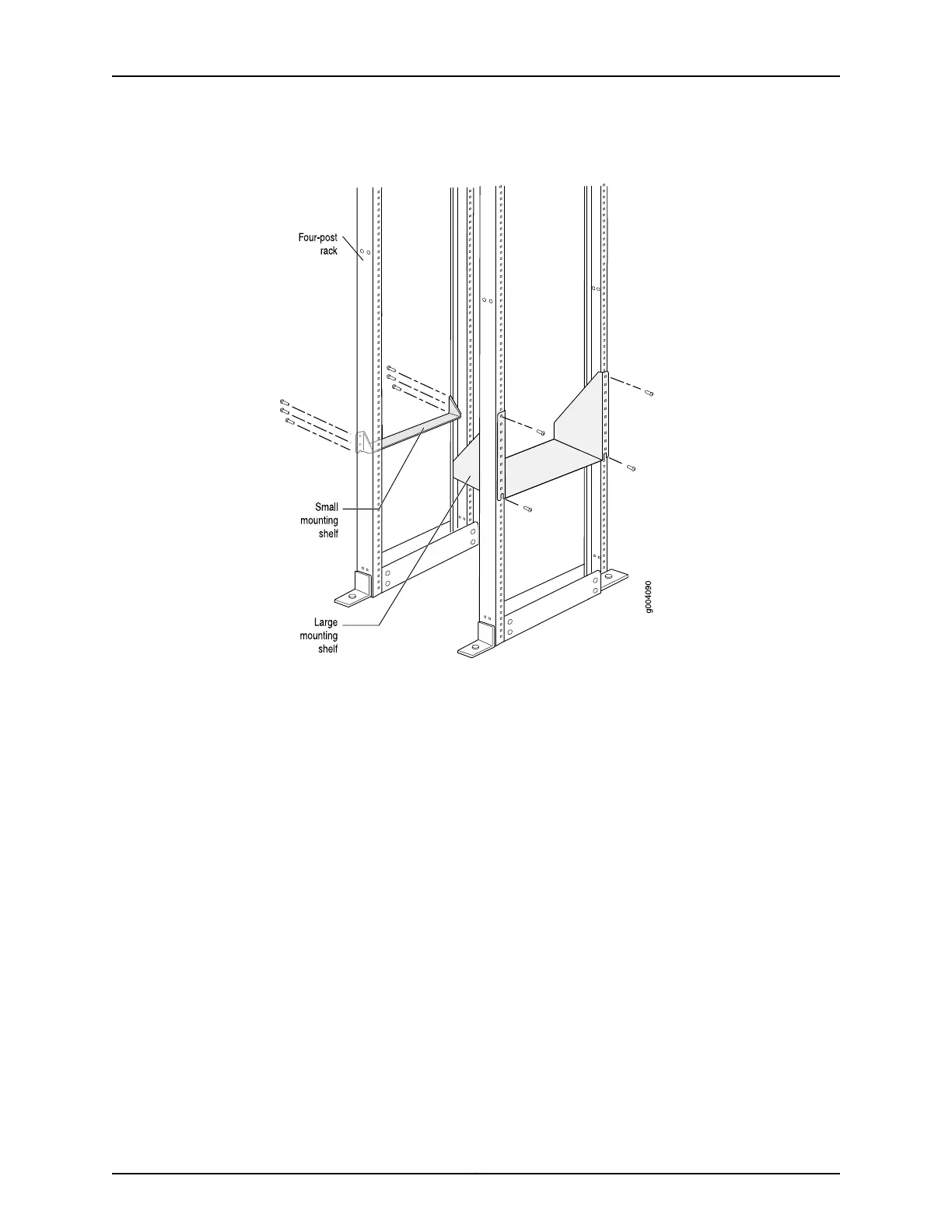

Figure 2: Mount Hardware for a Four-Post Rack or Cabinet
Install the Mounting Hardware in an Open-Frame Rack
1. On the rear of each rack rail, partially insert a mounting screw into the highest hole
specified in the MX960 3D Universal Edge Router Hardware Guide for the large shelf.
2. Install the large shelf on the rack. Hang the shelf over the mounting screws using the
keyhole slots located near the top of the large shelf flanges.
3. Partially insert screws into the open holes in the ears of the large shelf.
4. Tighten all the screws completely.
7Copyright © 2015, Juniper Networks, Inc.
