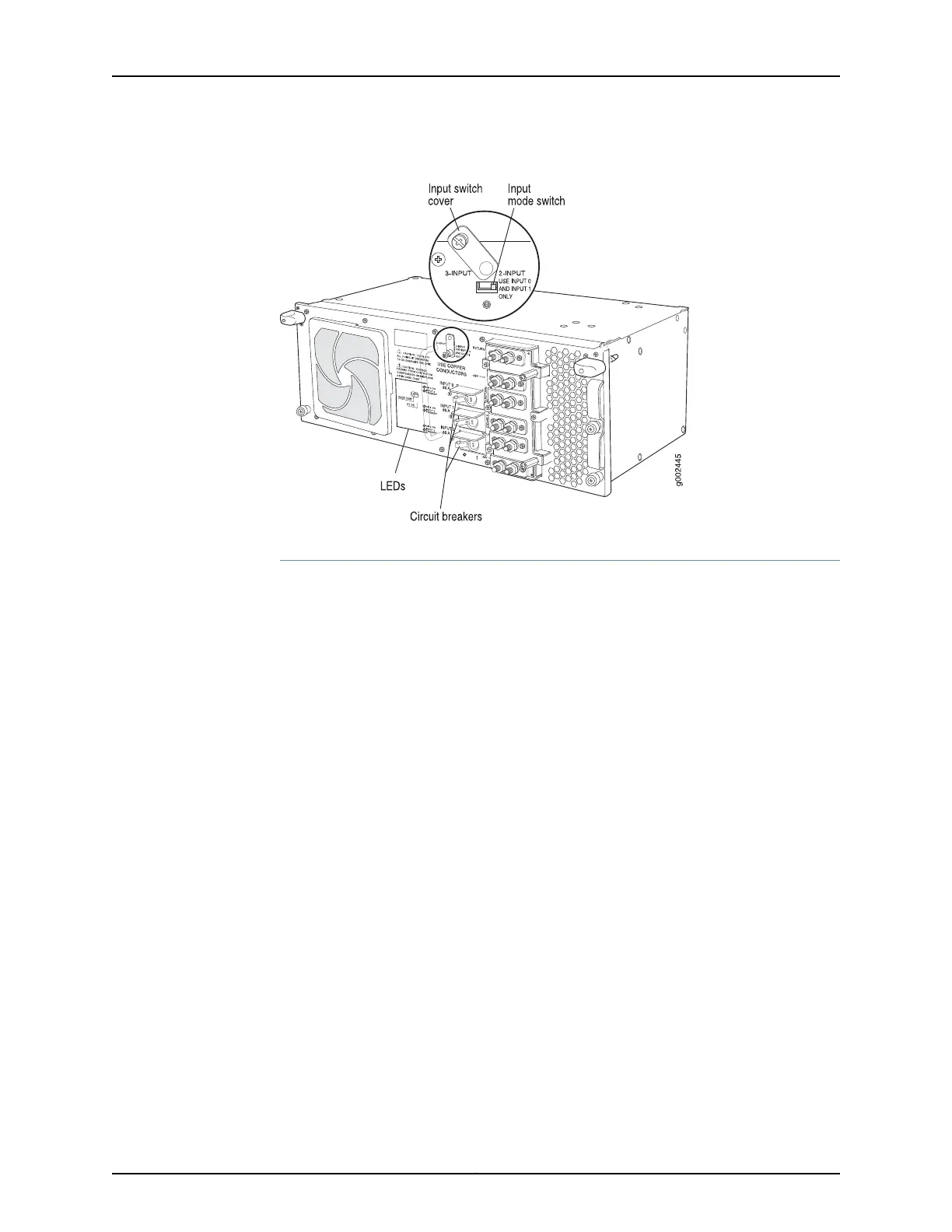

Figure 11: Three-Input 240-A DC Power Supply in 2-INPUT Mode
Replacing the Cable Restraint on a Three-Input 240-A DC Power Supply (Optional)
Each three-input 240-A DC power supply is shipped with the standard cable restraint
shown in Figure 12 on page 26. Two optional cable restraints are shipped in the accessory
box.
If your DC power cables are too large or inflexible to fit into the standard cable restraint,
we recommend that you remove the standard cable restraint and install the optional
cable restraint (see Figure 13 on page 26) on each three-input 240-A DC power supply.
To replace the cable restraint on a three-input 240-A DC power supply:
•
Removing the Standard Cable Restraint from a Three-Input 240-A DC Power
Supply on page 25
•
Installing the Optional Cable Restraint on a Three-Input 240-A DC Power
Supply on page 26
Removing the Standard Cable Restraint from a Three-Input 240-A DC Power Supply
The cable restraint is located on the right edge of the power supply faceplate. To remove
the standard cable restraint:
1. Loosen the captive screw on the standard cable restraint.
2. Remove the cable restraint from the power supply.
25Copyright © 2015, Juniper Networks, Inc.
Replacing the Cable Restraint on a Three-Input 240-A DC Power Supply (Optional)
