Jura ENA Micro 1 Series - Control Elements Overview; Service Connector (2 nd Generation)

Elektroapparate AG
Technical information
Technical Support
Language
EN
ENA Micro 1
Author: Patrik Studer
Checked:
Approved:
Docu.-name: Technische_Informationen_ENA_Micro_1_EN.doc
L:\Geräte\ENA_Micro\ENA_Micro_1\Schulungsunterlagen\E\
Technische_Informationen_ENA_Micro_1_EN.doc
Date:
Rev. A:
Rev. B:
Rev. C:
Rev. D:
Rev. E:
Rev. F:
09.05.2012
19.09.2012
Page 3/10

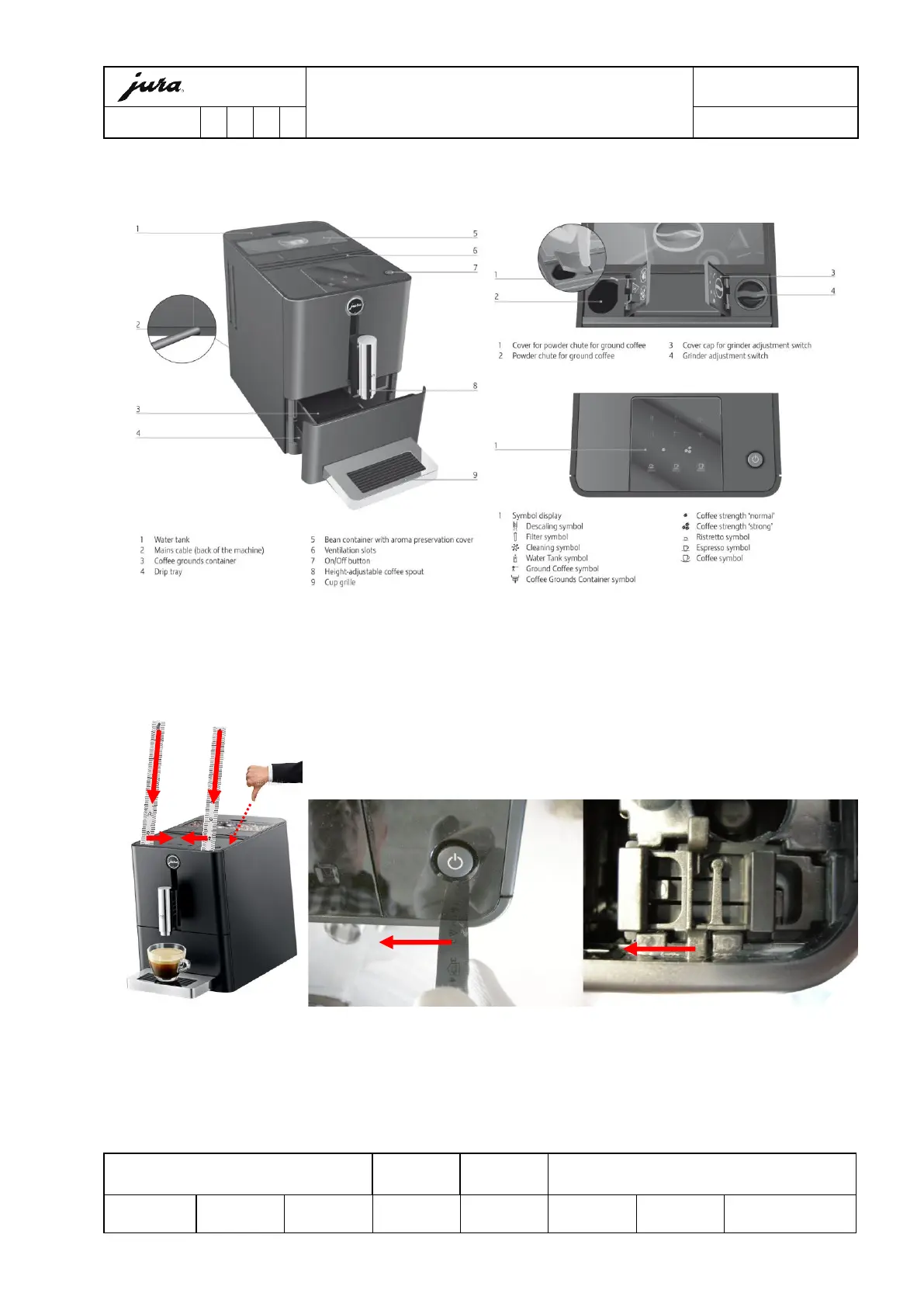

1 Control elements:
1.1 Service connector, 2
nd
generation:
Since the production June 2012, the side panels are assembled concise to the front.
This means, that there is no slot anymore to open the service-cover.
To release the service-cover you can follow up the steps below:
 Insert a metal ruler (thickness max. 0.5 mm) on the front side and slide it to the left
(pay attention to not scratch the control panel)
 Support this action by pushing with finger from above
 Release the left lock analogue the right
