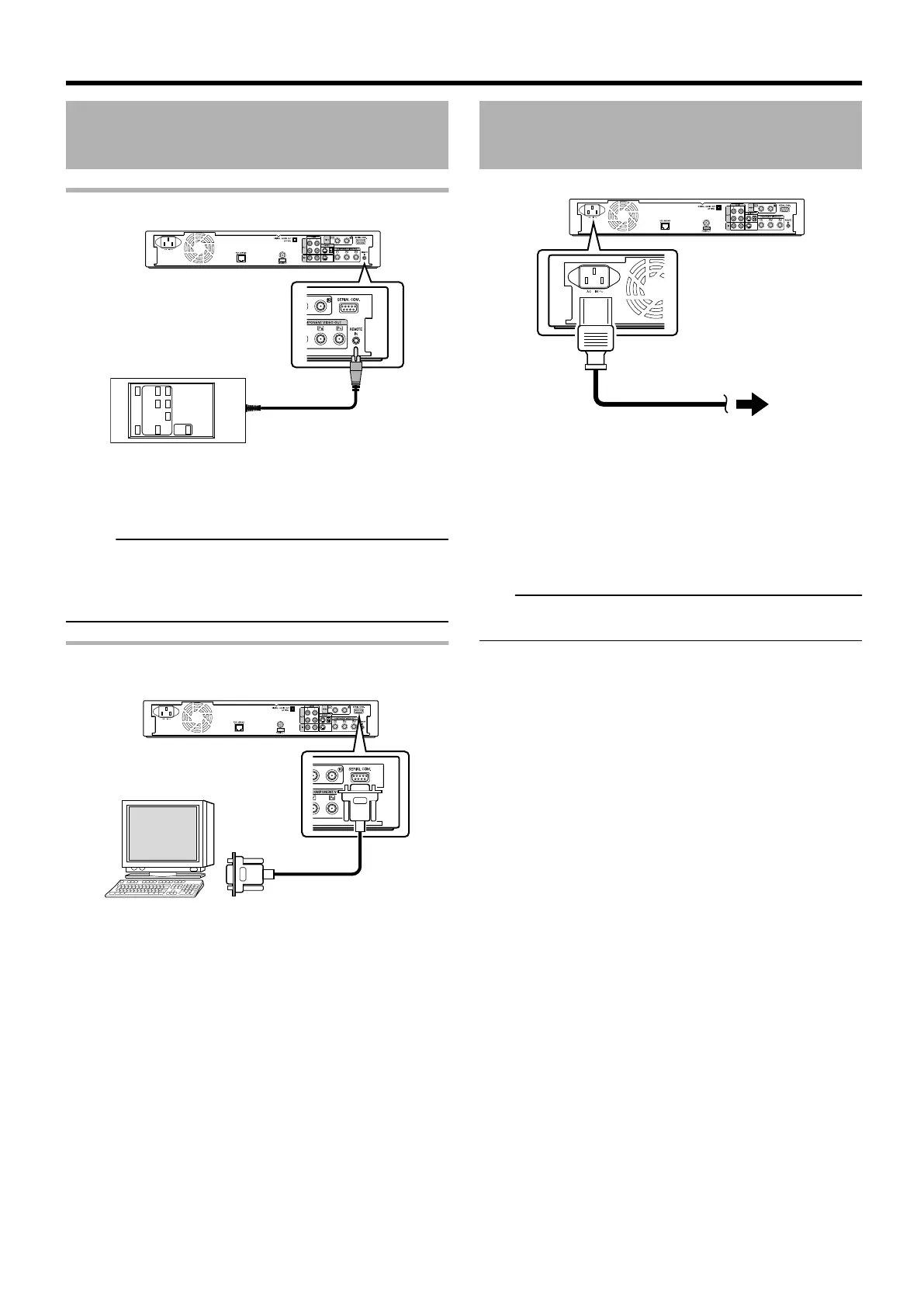

Connecting External
Devices
Connecting a wired remote control
.
Using a wired connection enables stable control of this unit
from an external device.
Operation is possible using any code (1 to 4) regardless of
the remote control code settings of this unit.
Memo:
v
There is currently no compatible remote control unit
available.
v
To create a wired remote controller, refer to “RS-232C
Interface” (A page 83) .
Connecting using a RS-232C cable (only
for SR-HD1500)
.
External operation is enabled by connecting a RS-232C cable
to a PC or similar device.
For details on external operation, refer to “RS-232C Interface”
(A page 83) .
Connecting the Power
Supply
Connect the supplied power cable to this unit as follows.
.
1
Connect the supplied power cable to the AC IN
terminal of this unit
2
Connect the other end of the power cable to a
power point
3
Press the [A] button on the remote control or
this unit to switch on the unit.
v
The power of this unit turns on, and a “HELLO” message
appears on the display window.
Note:
v
Do not use power cables other than that supplied with this
unit. Doing so may cause this unit to malfunction.
