26
PREPARATION
– Power –

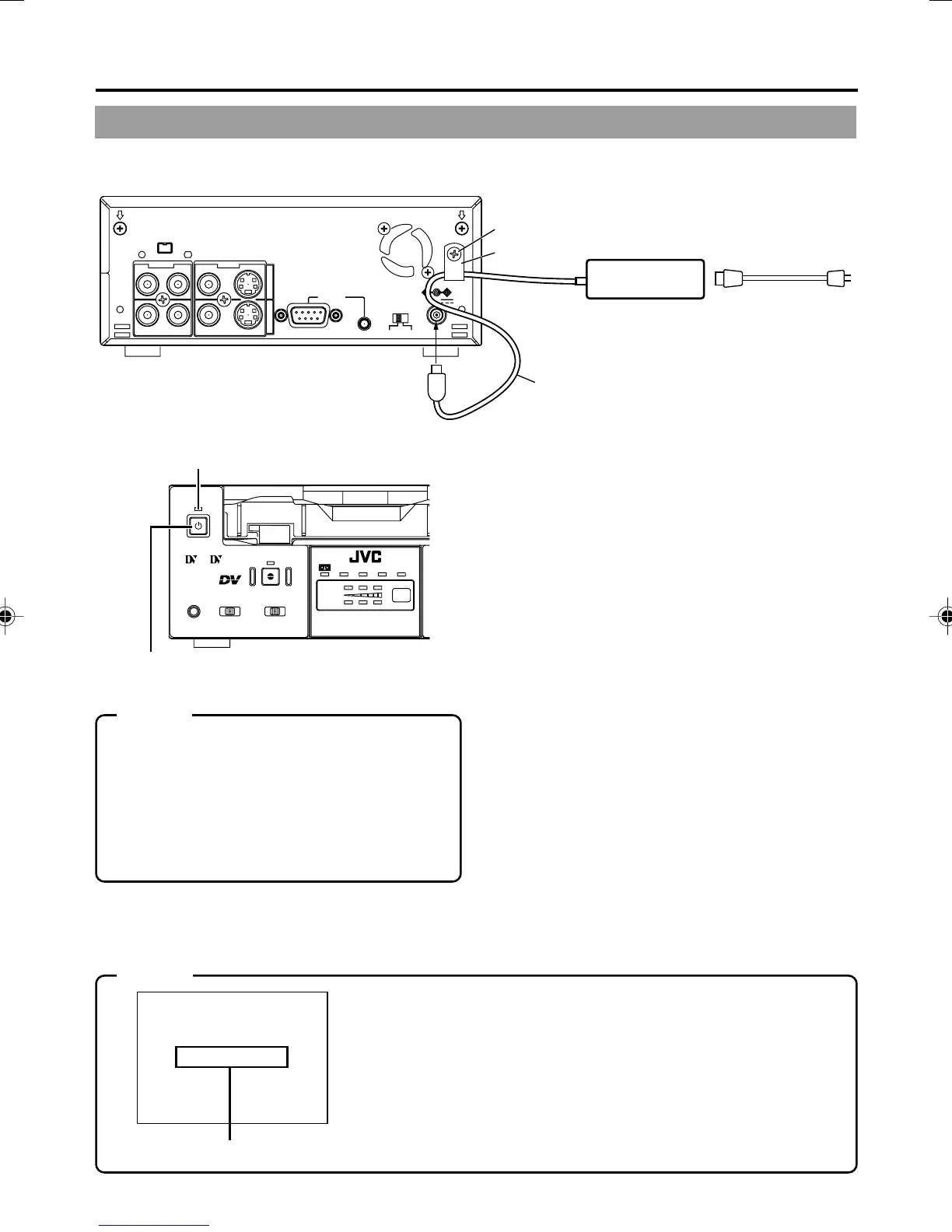

Connect the provided AC adapter to the main unit.
DV IN/OUT
AUDIO VIDEO
LINE
Y/C
CH 1/3 CH 2/4
INOUT
REMOTE
SERIAL
9PIN
NTSC/PAL
NTSC PAL
DC12V
AC
Provided AC
mains cable
DC cord
Screw
Clamp
DC IN terminal
Provided AC adapter
Mini
PROFESSIONAL
DVCAM NTSC
PAL
REC INH.
CH-1/3
CH-2/4
BR-DV3000
A.DUB
OPERATE
INPUT SEL.REMOTE SEL.
MIC
SERIAL
WIRELESS
9PIN
LINE
DV
Y/C
OPERATE indicator
OPERATE button
1.
Connect the DC cord of the AC adapter
to the DC IN terminal of the main unit.
2.
To prevent accidental disconnection of
the DC cord, fasten the DC cord with a
clamp.
1Remove 1 screw followed by the clamp.
2Insert the DC cord into the clamp and fasten
the clamp unto the main unit.
3.
Connect the provided power cord to the
AC IN terminal of the AC adapter.
4.
Connect the power cord to the power
socket.
•Power is channeled into the unit and the OP-
ERATE indicator lights up red.
(OPERATE OFF mode)
• If the DC IN MODE item of the SYSTEM (2/
2) menu is set to “OPE ON” or “PLAY”, the
OPERATE indicator will light up green.
(OPERATE ON mode)
If it is set to PLAY, the VTR will automatically
start to play the loaded tape.
Memo
•Even in the OPERATE OFF mode, a small
amount of electricity will still flow into the unit.
• When the unit is in the OPERATE OFF
mode, no operation can be performed ex-
cept that of the OPERATE buttons(on the
main unit and the remote controller) and
cassette loading/ejecting.
Notes
• Please supply power to the unit via the provided AC adapter. Do
not use other power sources.
• During recording or playback, please do not unplug the DC or
power cord.
• When the supply voltage is low, the “LOW VOLTAGE” alarm mes-
sage will be displayed. (
☞
Page 66)
LOW VOLTAGE
Alarm message
Connecting to the AC adapter
BR-DV3000U_p02-49 06.8.24, 2:02 PM26
