JVC BR-DV3000U - Professional Editing Video Cassete recorder/player - EDIT; Using the Unit in an Editing System

50
Cut-edit system
This unit can be used as a feeder (player) for an editing system that uses a RS-422A-compat-
ible editing remote controller (RM-G820).
 Applicable model
Editing remote controller : RM-G820
Recorder :VHS/S-VHS ....... BR-S800 (equipped with SA-K26 or SA-R50), BR-S822
* DV signals cannot be input.
D9 (digital S) ..... BR-D80, BR-D85, BR-D750
* To input DV signals, please install SA-DV60 to D9VTR.
EDIT – Using the unit in an editing system –

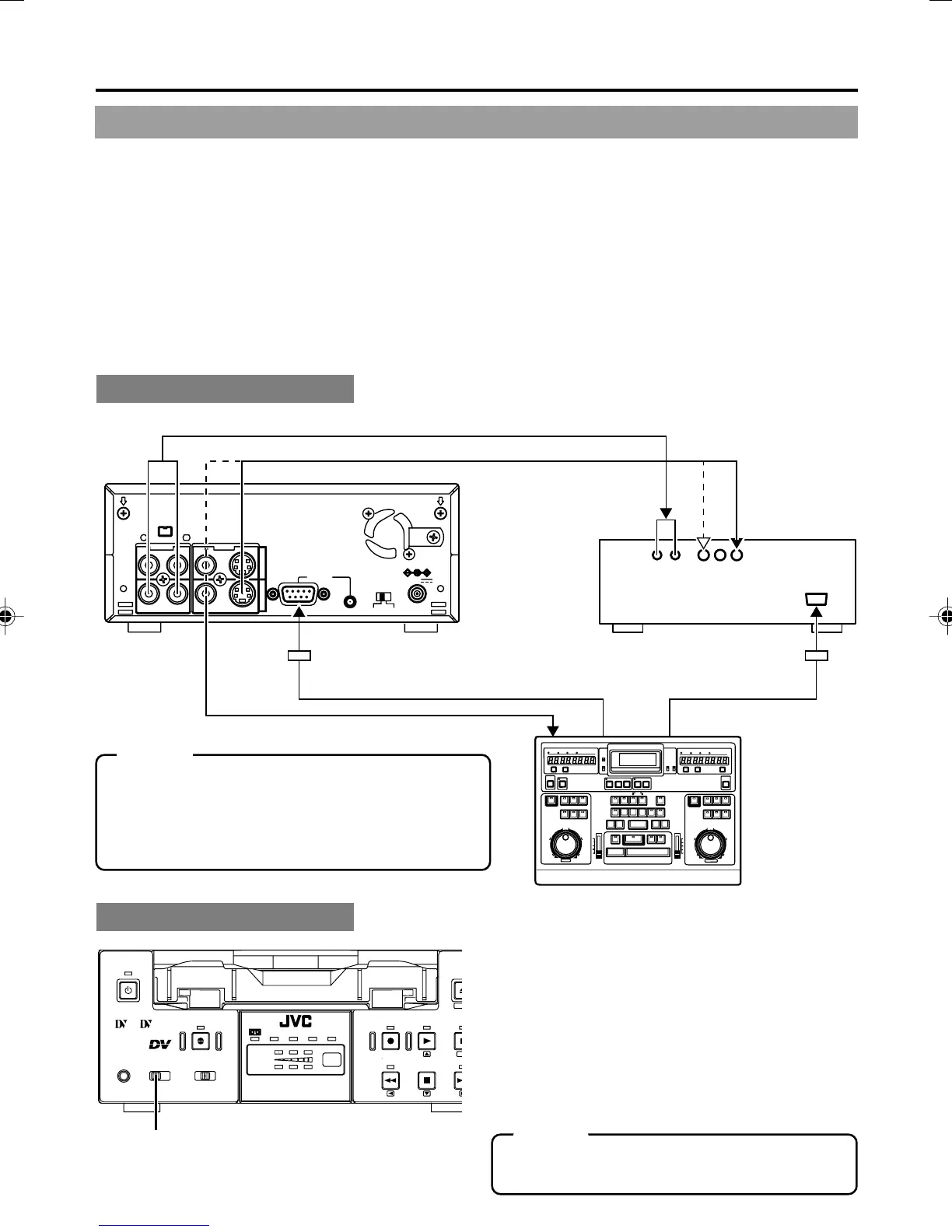

Example of connection
DV IN/OUT
AUDIO VIDEO
LINE
Y/C
CH 1/3 CH 2/4
INOUT
REMOTE
SERIAL
9PIN
NTSC/PAL
NTSC PAL
DC12V
Y/C IN
VIDEO
LINE OUT
9PIN
Remote controller
REFERENCE IN
RM-G820
9PIN
Y/C OUT
Video
Audio
Player (BR-DV3000)
Recorder
LAP
IN OUT SERVO LAP
IN OUT SERVO
LAP
RESET
LAP
RESET
TOTAL
RECORDER
EJECT
PLAYER
EJECT
P
AUX
CONTINUE
START
END
V.SPEED
EVENT
RENUMBER
RIPPLE
MAN.TAKELEARN
MENU
REC REW FF STOP
STB OFF
SEARCHPAUSE
/STILL
PLAY
REC REW FF STOP
STB OFF
SEARCHPAUSE
/STILL
PLAY
ASSEM
VIDEO
AUD-1
AUD-2
SPLIT
TC
SPLIT
CANCEL
LAST
ED
REC
EE
OUT
IN
OUT
IN
ENTRY
PREVIEW
AUTO EDIT
GOTO REVIEW
SHIFT
ALL STOP
MAX
MIN
MONITOR
MAX
MIN
MONITOR
FWD
REV
STILL
X-1
X1
FWD
REV
STILL
X-1
X1
RECORDER
PLAYER
HOUR MIN SEC
FRAME
HOUR MIN SEC
FRAME
PR
VITC
LTC
CTL
VITC
LTC
CTL
BUMP
PREROLL
7
5
3
ON
OFF
EVENT No.
V.SPEED
A.SPLIT
DURATION
IN
OUT
IN
OUT
EDITING CONTROL UNIT
RM—G820
+–
Memo
If editing precision is critical, please input the
composite signals of the VIDEO LINE OUT of
BR-DV3000 as standard synchronization signals
into the editing remote controller. Use the Y/C
OUT terminal for video signals.
Setting the main unit
Mini
PROFESSIONAL
S
M
E
EJ
E
REC PLAY
PA
U
REW
STOP
F
DVCAM NTSC
PAL
REC INH.
CH-1/3
CH-2/4
BR-DV3000
A.DUB
OPERATE
INPUT SEL.REMOTE SEL.
MIC
SERIAL
WIRELESS
9PIN
LINE
DV
Y/C
REMOTE SEL.
switch
 Set the REMOTE SEL. switch of the front
panel to “9 PIN”.
 Set the NTSC/PAL switch according to
the playback signals.
 Set the REMOTE menu.
• REMOTE : Set it to “ON”.
• PREROLL : Set the pre-roll time (second).
The setting is recommended to
be at least 7 seconds.
Memo
The setting will be that which is set (if any)
via the editing remote controller.
