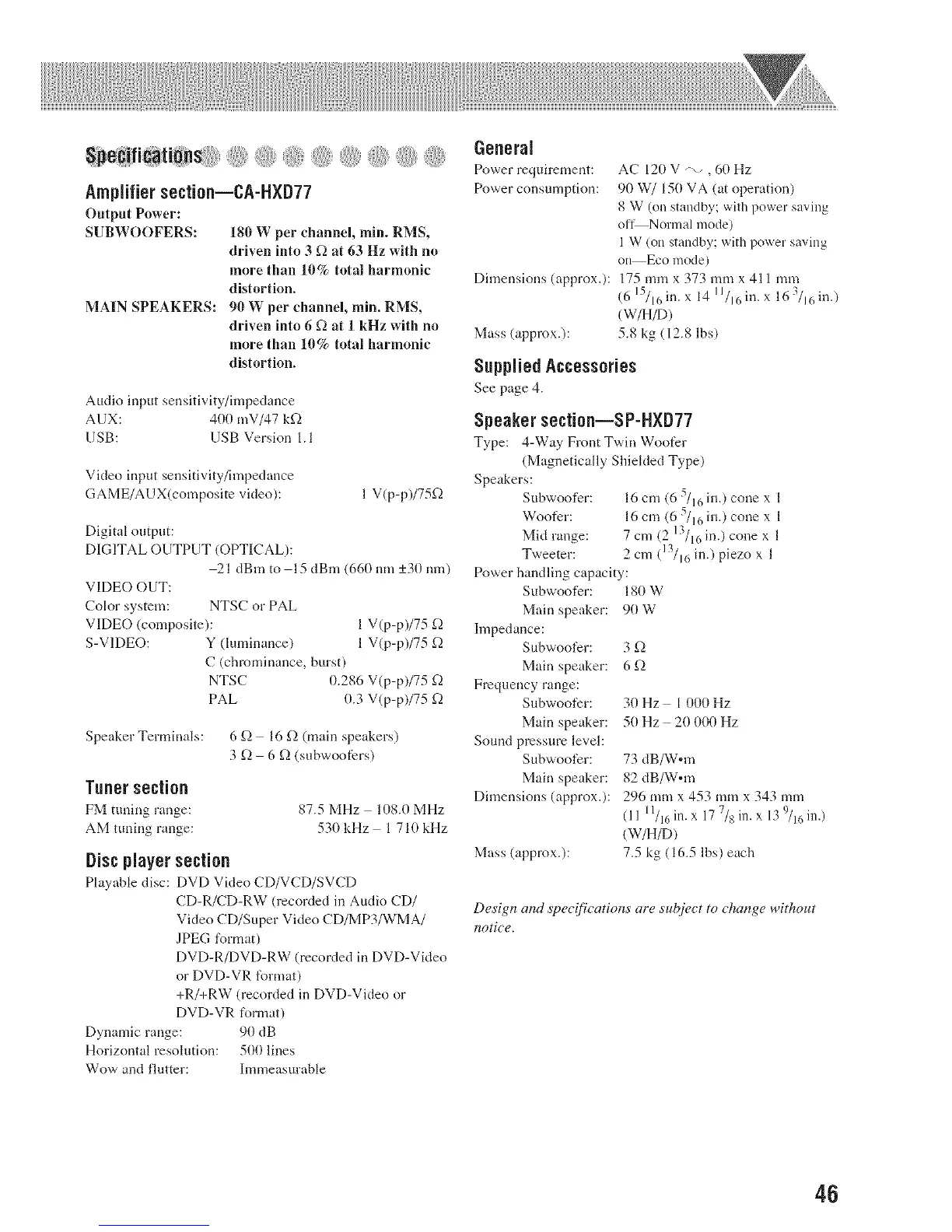

JVC CA-HXD77

SPeN ica i n ;;;
Amplifier section--CA-H×D77
Output Power:
SUBWOOFERS: 180 W per channel, rain. RMS,
driven into 3 f2 at 63 Hz with no
more than 10% total harmonic
distortion.
MAIN SPEAKERS: 90 W per channel, rain. RMS,
driven into 6 f2 at 1 kHz with no
more than 10% total harmonic
distortion.
Audio input sensitivity/impedance
AUX: 400 mV/47 kf2
USB: USB Version 1.1
Video input sensitivity/impedance
GAME/AUX(composite video): 1 V(p-p)/75f_
Digital output:
DIGITAL OUTPUT (OPTICAL):
21dBmto 15dBm(660nm+30nm)
VIDEO OUT:
Color system: NTSC or PAL
VIDEO (composite): 1 V(p-p)/75 f2
S-VIDEO: Y (luminance) 1 V(p-p)/75 (2
C (chrominance, burst)
NTSC 0.286 V(p-p)/75 f2
PAL 0.3 V(p-p)/75 f2
Speaker Terminals: 6 (_ 16 _-_(main speakers)
3 _2 6 _2(subwoofcrs)
Tuner section
FM tuning range:
AM tuning range:
87.5 MHz 108.0MHz
530 kHz l 710 kHz
Discplayersection
Playable disc: DVD Video CD/VCD/SVCD
CD-R/CD-RW (recorded in Audio CD/
Video CD/Super Video CD/MP3/WMA/
JPEG format)
DVD-R/DVD-RW (recorded in DVD-Video
or DVD-VR fommt)
+R/+RW (recorded in DVD-Video or
DVD-VR format)
Dynamic range: 90 dB
Horizontal resolution: 500 lines
Wow and flutter: hnmeasurable
General
Power requirement:
Power consumption:
Dimensions (approx.):
Mass (approx.):
AC 120 V .... ,60 Hz
90 W/150 VA (at operation)
8 W (on staudby; with power saving
oft Norlnal mode)
1 W (on standby; with power saving
on Ecomode)
175 mmx 373 mmx 411 mm
3 •
(6 15/16in. x 14 11/16in. x 16 /16 m.)
(W/H/D)
5.8 kg (12.8 lbs)
Supplied Accessories
See page 4.
Speaker section--SP-HXD77
Type: 4-Way Front Twin Woofer
(Magnetically Shielded Type)
Speakers:
Subwoofcr: 16 cm (6 5/16 in.) cone x 1
Woofer: 16 cm (6 5/16 in.) cone x 1
Mid range' 7 cm (2 13/16 in.) cone x 1
Tweeter: 2 cm (13/16 in.) piezo x 1
Power handling capacity:
Subwoofcr:
Main speaker:
hnpedance:
Subwoofcr:
Main speaker:
Frequency range:
Subwoofcr:
Main speaker:
Sound pressure level:
Subwoofcr:
Main speaker:
Dimensions (approx.):
Mass (approx.):
180 W
90 W
3f2
6g_
30Hz 1000Hz
50Hz 20 000Hz
73 dB/W.m
82 dB/Wom
296 mm x 453 mm x 343 mm
(11 ll/l(,in, x 17 7/8 in. x 13 9/16in.)
(W/H/D)
7.5 kg (16.5 lbs) each
Design and specifications are sul_fi, ct to change without
notice.
