CH-X400/CH-X450
1-28
Shift approx. 30 mm
Shift approx. 30 mm

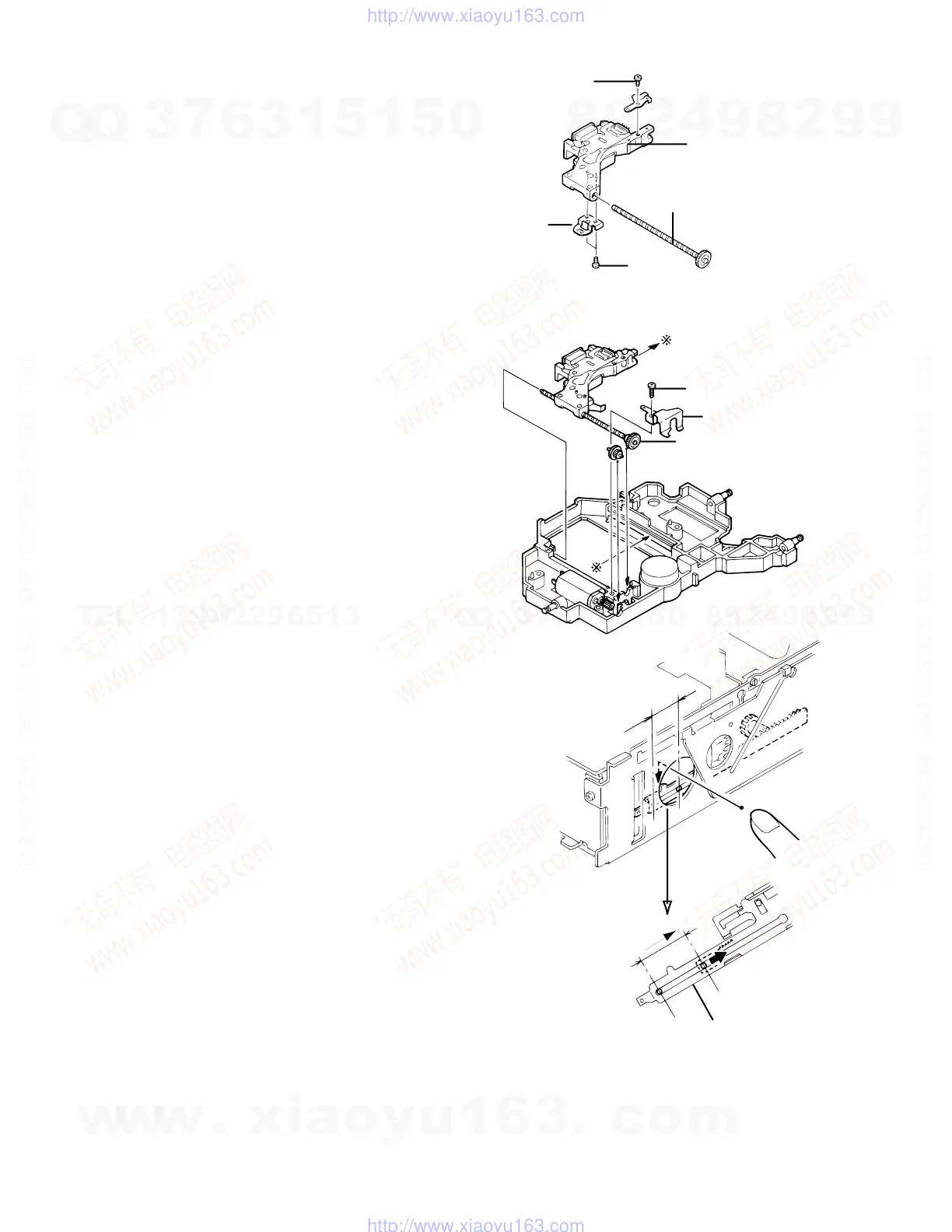

Fig. 52
Grounding point
Pickup
Feed slide shaft
Rack arm
5
4
Shaft holder
Middle gear
3
Fig. 53
Fig. 54
Lifter unit lever
Enlarged
diagram
10. Remove the two rack arm fixing screws (4).
Pull out the feed slide shaft.
Remove the shaft holder fixing screw (5).
11. When mounting the lifter bracket after replacing the pickup,
shift the lifter unit lever approx. 30 mm towards the inside,
then mount the lifter bracket.
