CH-X400/CH-X450
1-5

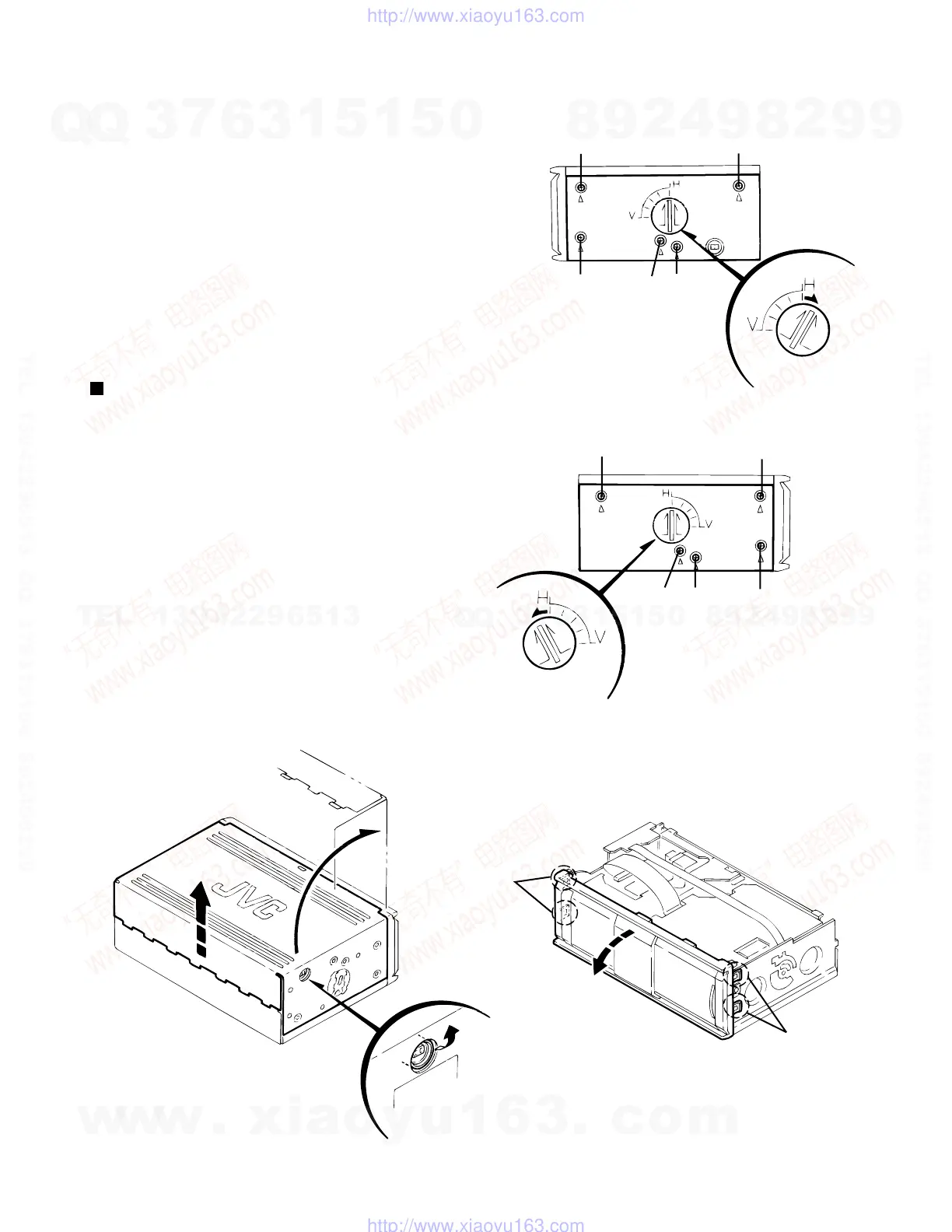

1. Remove the screw (1-a) to unlock the mounting direction
knob located on the side of the main unit.
2. Turn the mounting direction knob in the direction of the arrow
using a coin, etc. to remove it. (The knob can be removed
only when it is set to this position.)
3. Remove the four top cover fixing screws (1) at the triangle
(A) marks on the side of the main unit. (Perform the same
operation on both sides.)
4. Turn the unit upside down so the bottom surface is facing
upward.
5. Lift the rear edge of the bottom cover slightly and lift the side
by grasping the DIN jack section on the side panel, then
turn it toward the front (raise upward) to remove the bottom
cover.
6. Unhook the four catches located on both sides of the front
panel, and turn the front panel toward the top cover (lower
down) to remove the front panel.
Remove 1-a and
turn in the direction
of the arrow.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Exterior section
Removing the bottom cover and front panel
assembly
11
111-a
11
1
1
1-a
Remove 1-a and
turn in the
direction of the
arrow
Unhook catches
Unhook catches
The front panel can be
separated by raising the
cover.
Slightly lift the
jack section to
remove.
Disassembling procedures
Perform operations according to the items to be disassembled.
Replacement of the Pickup
1. After removing the exterior (top and bottom)...
2. Proceed to the "Pickup Replacement" section.
3. When applying grease, refer to the Exploded View.
Use new grease.
Mechanism section
1. Remove the exterior (required section only).
2. The mechanism section is designed so that each unit can be
removed separately.
3. When reassembling, refer to the assembling precautions.
(Use new grease when applying grease.)
