JVC DLA-HD350 - Others; RS-232 C Interface; RS-232 C Specifications; Command Format

6
Others
52
RS-232C Interface
Control of this unit via a computer is possible by connecting the computer to this unit with a RS-232C
cross cable (D-Sub 9 pin).




● PC refers to the controller such as a personal computer.
D6 D7D4 D5D2 D3D0 D1
Command Format
The command between this unit and the computer consists of “Header”, “Unit ID”, “Command”, “Data” and “End”.
● Header (1 byte), Unit ID (2 bytes), Command (2 bytes), Data (n bytes), End (1 byte)
■
Header
This binary code indicates the start of communication.
Binary code Type Description
21 Operating command PC
→
This unit
3F
Reference command PC
→
This unit
40
Response command This unit
→
PC
06 ACK
This unit
→
PC
(When the command is accepted without error, it returns to
PC)
■
Unit ID
This code species the unit. The binary code is xed at “8901”.

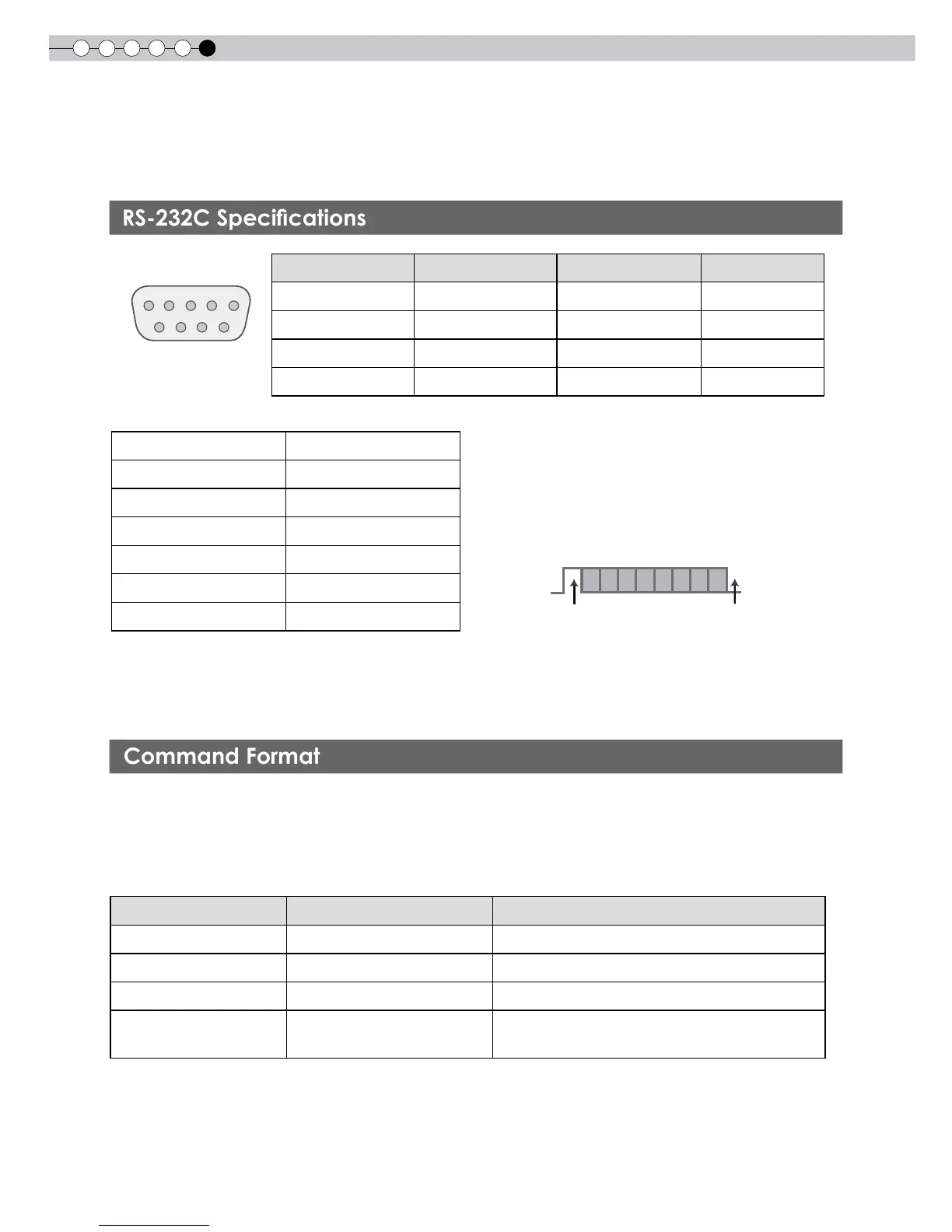

RS-232C Specications
Pin No. Signal Function Signal Direction
2 RxD Receive data PC
→
This unit
3 TxD Transmit data This unit
→
PC
5 GND Signal ground
-
1,4,6 - 9
N/C
- -
Mode
Non-synchronous
Character Length
8 bit
Parity
None
Start Bit
1
Stop Bit
1
Data rate
19200 bps
Data format
Binary
T
his unit
Start Bit Stop Bit
