2
Adjust such that the projected image is in the center of the screen
● It may be necessary to set “Pixel Adjust” in the setting menu after adjusting the image position. ( P36 -
22
)

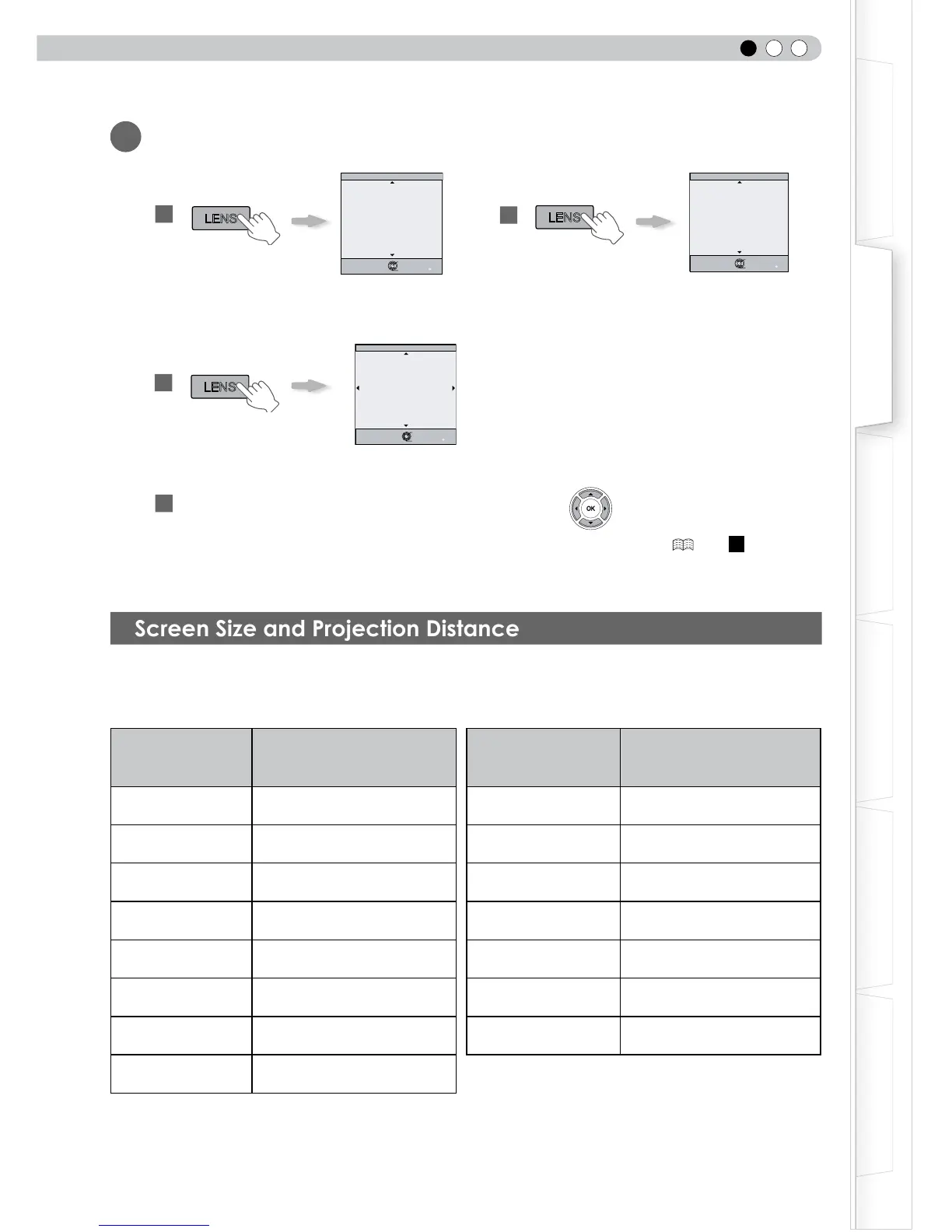

Determine the distance from the lens to the screen to achieve your desired screen size.
This unit uses a 2.0x power zoom lens for projection.
■
Relationship Between Projection Screen Size and Projection Distance
Projection Screen Size
(Diagonal Length)
Aspect Ratio 16:9
Approximate Projection Distance
W
(
Wide
)
to
T
(
Tele
)
Projection Screen Size
(Diagonal Length)
Aspect Ratio 16:9
Approximate Projection Distance
W
(
Wide
)
to
T
(
Tele
)
60"
(Approx. 1.52m)
Approx. 1.78m to
Approx. 3.66m
140"
(Approx. 3.56m)
Approx. 4.23m to
Approx. 8.60m
70"
(Approx. 1.78m)
Approx. 2.09m to Approx. 4.28m
150"
(Approx. 3.81m)
Approx. 4.53m to
Approx. 9.22m
80"
(Approx. 2.03m)
Approx. 2.40m to
Approx. 4.89m
160"
(Approx. 4.06m)
Approx. 4.84m to
Approx. 9.84m
90"
(Approx. 2.29m)
Approx. 2.70m to
Approx. 5.51m
170"
(Approx. 4.32m)
Approx. 5.14m to
Approx. 10.45m
100"
(Approx. 2.54m)
Approx. 3.01m to
Approx. 6.13m
180"
(Approx. 4.57m)
Approx. 5.45m to
Approx. 11.07m
110"
(Approx. 2.79m)
Approx. 3.31m to
Approx. 6.75m
190"
(Approx. 4.83m)
Approx. 5.75m to Approx. 11.68m
120"
(Approx. 3.05m)
Approx. 3.62m to Approx. 7.36m
200"
(Approx. 5.08m)
Approx. 6.06m to
Approx. 12.30m
130"
(Approx. 3.30m)
Approx. 3.92m to
Approx. 7.98m
● The projection distances in the table are provided only as a guide. Use them as a reference during installation.
● To adjust the installation, use a projected image of aspect ratio 16:9.
Adjust the image position to the center of the screen by pressing (the up, down, left and right buttons).
