Connecting
Connecting via Component Video Cable
● Set “COMP.” in the setting menu to “Y Pb/Cb Pr/Cr”. ( P35 -
12
)

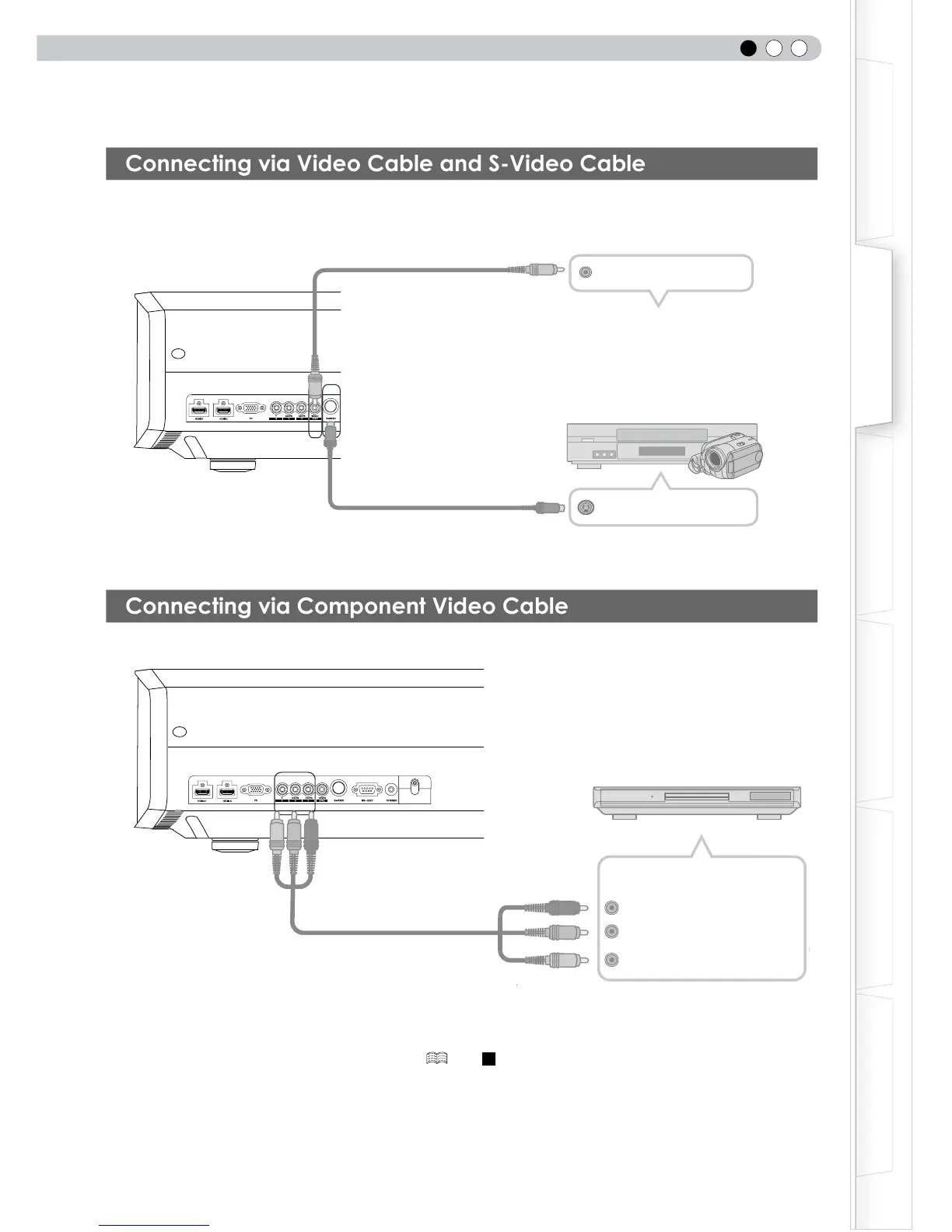

Connecting via Video Cable and S-Video Cable
SYNC
This unit
To component video input terminals
Component video cable
(sold separately)
DVD player
C
R
/P
R
(red)
C
B
/P
B
(blue)
Y (green)
Component video output
terminals
SYNC
This unit
To video input termina
l
To S-video input terminal
S-video cable
(sold separately)
video cable
(sold separately)
Video output
S-video output
VCR and camcorder
