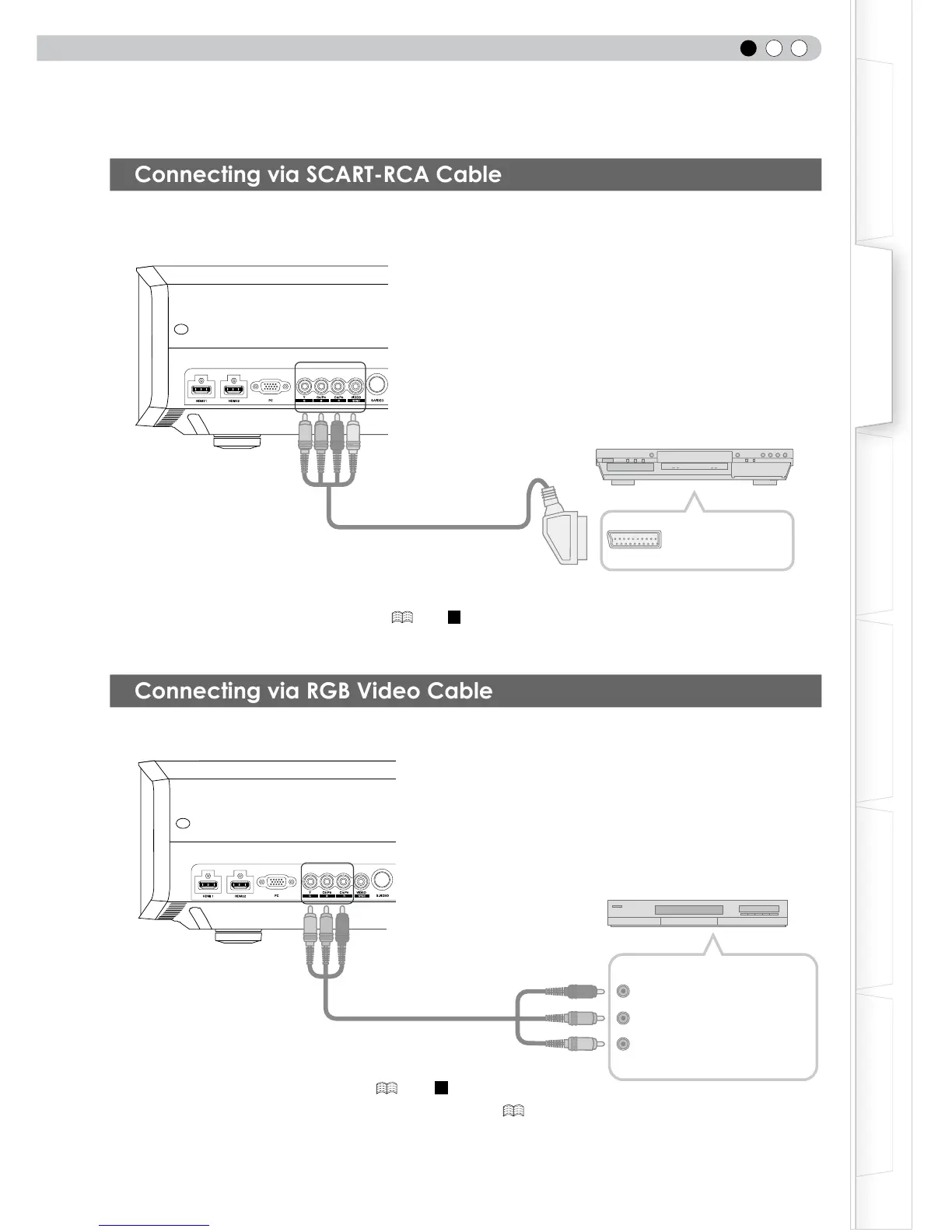

Connecting via SCART-RCA Cable
● Set “COMP.” in the setting menu to “SCART”.( P35 -
12
)
Connecting via RGB Video Cable
● Set “COMP.” in the setting menu to “RGB”.( P35 -
12
)
● For information on compatible input signals, see “Specications”. ( P58)
RS-232C
This unit
To RGB video input terminals
RGB video cable
(sold separately)
R(Red)
B(Blue)
G(Green)
(Includes sync signals)
RGB video output terminals
Device equipped with RGB output
RS-232C
This unit
DVD player for European market
SCART terminal
SCART-RCA cable
(sold separately)
To RGB video and
sync signal input terminals
