JVC DR-MX1S - Front View; Buttons To Be Used (Front Panel)

Filename [MX1S_05Name.fm]
Masterpage:Left0
12 EN
Page 12 Saturday, 30 October 2004 16:18
INDEX

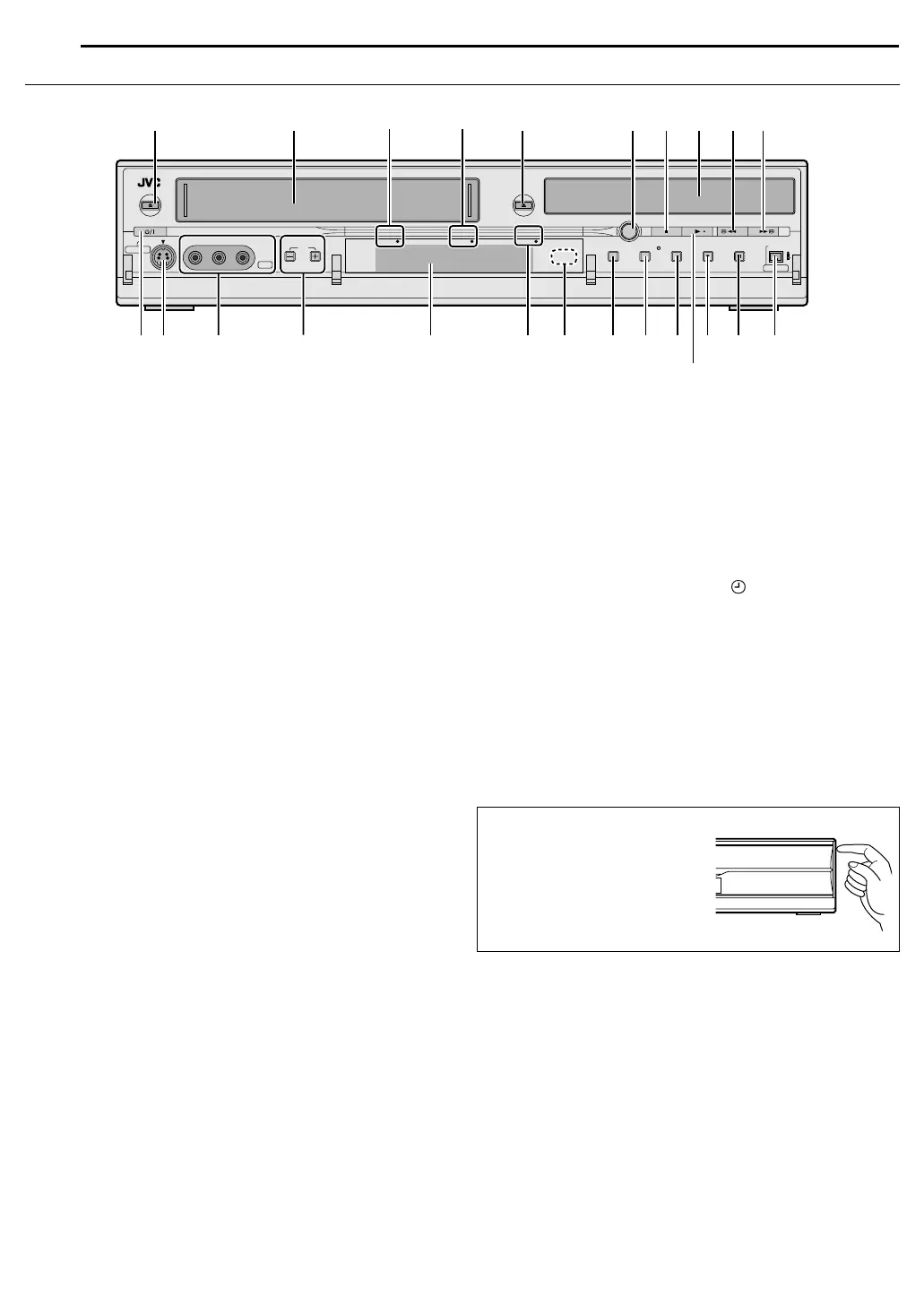

Front View
A Eject Button (x) (VHS) 墌 pg. 50
B Cassette Loading Slot
C VHS Lamp (VHS) 墌 pg. 50
VHS Recording Lamp (7)
墌 pg. 53
D HDD Lamp (HDD)
墌 pg. 21, 44
HDD Recording Lamp (7)
墌 pg. 44
E Open/Close Button (x)
墌 pg. 10
F VHS/HDD/DVD Select Button (VHS/HDD/DVD
SELECT) 墌 pg. 27, 44, 50
● This button will not function during navigation mode or set up
mode.
G Stop Button (8) 墌 pg. 27, 46
H Disc Tray
I Reverse Search Button (3) (HDD &DVD deck)
墌 pg. 28, 35
Rewind Button (3) (VHS deck)
墌 pg. 50, 51
J Forward Search Button (5) (HDD &DVD deck)
墌 pg. 28, 35
Fast Forward Button (5) (VHS deck)
墌 pg. 50, 51
K STANDBY/ON Button (1)
L S-video Input Connector [S-VIDEO] (HDD & DVD deck)
墌 pg. 75
M Video/Audio Input Connectors
[VIDEO/AUDIO ((MONO) L/R)]
墌 pg. 75
N Channel Buttons (CH +/–)
墌 pg. 41, 44, 52, 53
O Front Display Panel
墌 pg. 14
P DVD Lamp (DVD)
墌 pg. 21, 27
DVD Recording Lamp (7)
墌 pg. 41
Q Infrared Beam Receiving Window
R Display Button (DISPLAY)
墌 pg. 30, 42
S VHS Timer Button (VHS TIMER )
墌 pg. 60
T Recording Mode Button (REC MODE)
墌 pg. 41, 44, 53
U Play Button (4)
墌 pg. 27, 46
V Record Button (7)
墌 pg. 41, 44
W Pause Button (9)
墌 pg. 27, 46
X DV Input connector [DV IN (i*)] (HDD & DVD deck only)
墌 pg. 74
* i (i.Link) refers to the IEEE1394-1995 industry specification and
extensions thereof. The i logo is used for products compliant with the
i.Link standard.
STANDBY/ ON
VHS/HDD/DVD
S-VIDEO VIDEO (MONO) L–AUDIO–R
VHS – HDD – DVD –
DV IN
DISPLAY
SELECT
VHS TIMER REC MODE
CH
F–1
HDD/DVD
HDD/DVD
K
C
D
FEGHIJBA
LOPQRSTV
U
WXNM
To access covered connectors, pull
and open the connector cover.
