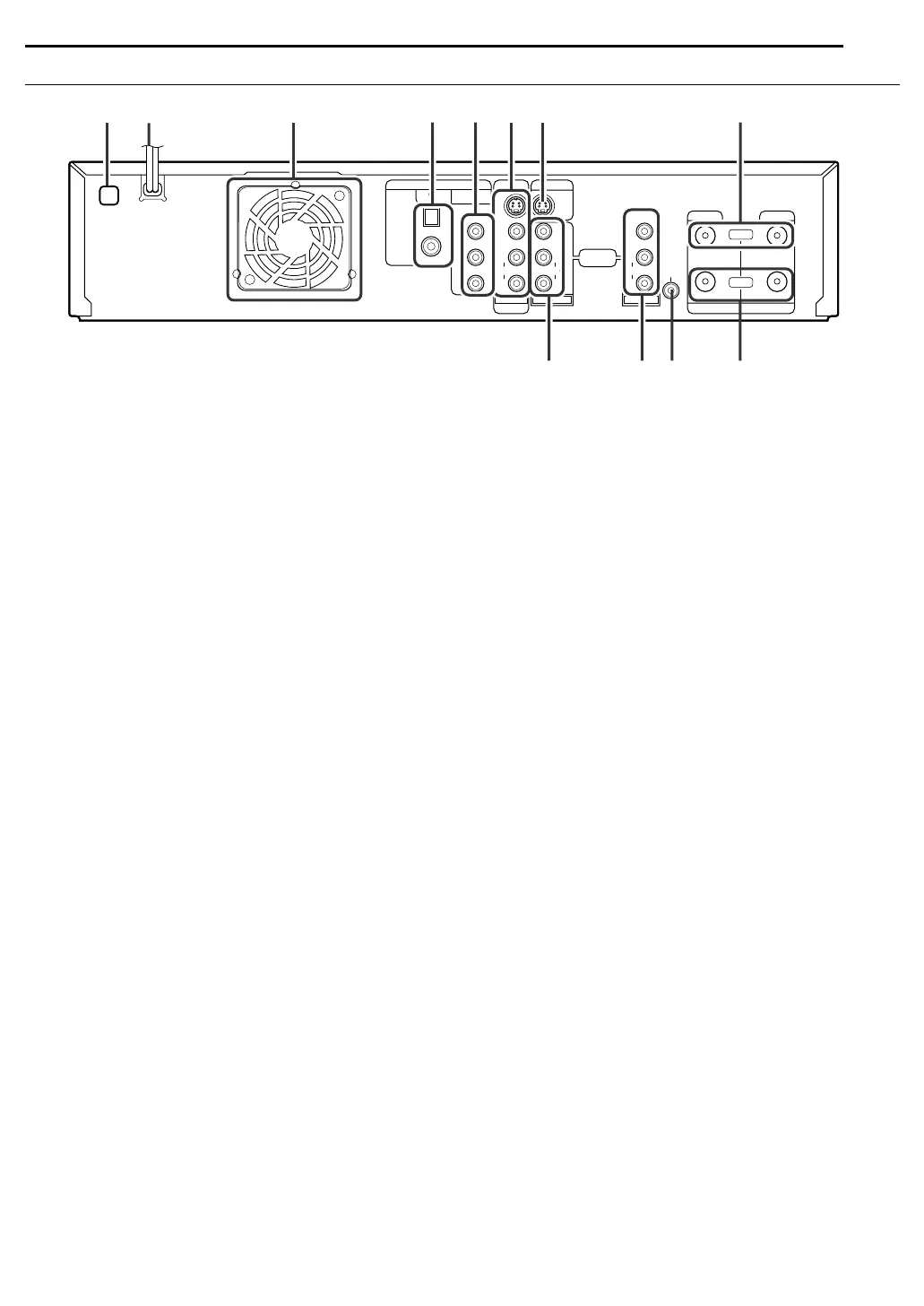

Rear View
A Region Number Label 墌 pg. 8
B AC Power Cord
墌 pg. 19
C Cooling Fan
● This prevents the temperature from rising inside the unit.
Do not remove it.
● Install the unit so as not to block the area around the fan.
● The cooling fan on the rear of the unit may be activated even if
the unit is turned off in the following cases;
— In the Automatic Satellite Program Recording standby mode
(墌 pg. 59)
— when “AUTO CLOCK” is set to “ON” (墌 pg. 22)
(Set “AUTO CLOCK” to “OFF” if you mind the noise of the fan.)
D Digital Audio Output Connectors
[DIGITAL AUDIO OUT (OPTICAL/COAXIAL)] (HDD &
DVD deck only) 墌 pg. 77, 80
E Component Video Output Connectors [COMPONENT
VIDEO OUT (Y/P
B/PR)] 墌 pg. 19
● This component video output enables you to watch the images
on the VHS deck in Progressive scan mode, refer to “VHS
Progressive Scan” (
墌 pg. 52).
F S-video/Video/Audio Output Connectors [S-VIDEO/
VIDEO/AUDIO OUTPUT] (HDD & DVD deck only)
墌 pg. 19
G S-video Input Connectors [S-VIDEO INPUT] (HDD &
DVD deck only)
墌 pg. 76
H Antenna Input Connectors [VHF/UHF IN]
墌 pg. 19
I Video/Audio Input Connectors [VIDEO/AUDIO INPUT
L1]
墌 pg. 76
J Video/Audio Output Connectors [VIDEO/AUDIO
OUTPUT] 墌 pg. 76
K Cable Box Control Connector [CABLE BOX]
墌 pg. 24
L Antenna Output Connectors [VHF/UHF OUT]
墌 pg. 19
.
OUTPUT
VHF/UHF
OUTPUT
HDD/DVD
INPUT L-1
OPTICAL
HDD/DVD
HDD/DVD
IN
VHS
L
R
DIGITAL
AUDIO OUT
COMPONENT
VIDEO OUT
VIDEO
S-VIDEO
S-VIDEO
AUDIO
VIDEO
AUDIO
PCM/
STREAM
L
R
VIDEO
CABLE
BO
ANT LOOP OUT TV OUT
L
R
OUT
COAXIAL
HDD/DVD
VHS/HDD
/DVD
Y
P
P
B
R
X
AUDIO
AEFCDB
G
H
JK LI
