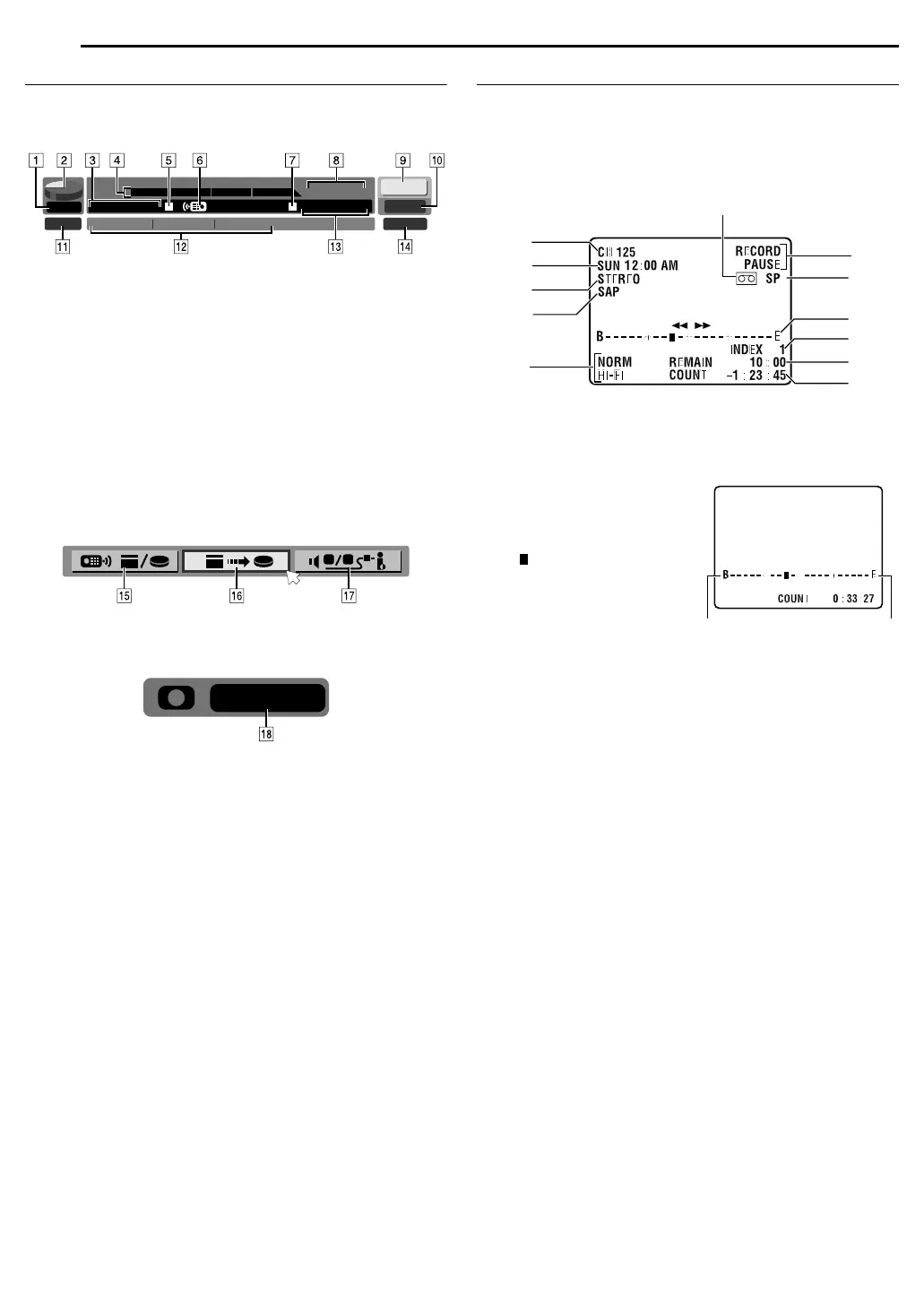

On-Screen Display (DV Dubbing)
When capturing images from the external DV
equipment
A Recording speed
B HDD capacity graph
C HDD time counter
D Recording time scale
E HDD mode
F Remote control mode
G Connected DV equipment mode
H Connected DV equipment model information
I Input channel
J Sound mode
K Sound input bit-rate*
* Indicates the sound bit-rate of the connected DV equipment
L Connected DV equipment information*
* Maker name and model name, etc. may not appear depending on the
connected equipment.
M Time counter for the connected DV equipment
N Sound monitor mode
O Remote control switch
P Auto capture button
Q Sound monitor switch
R Elapsed recording time
On-Screen Display (VHS deck)
When “SUPERIMPOSE” is set to “AUTO” and ON SCREEN on the
remote control is pressed, various operational indicators appear on
the TV screen. To clear the operational indicators, press ON
SCREEN again.
A Operation Mode Indicators
B Recording Mode (SP/EP)
C Tape Position Indicator
The tape position indicator
appears on the TV screen when
you press 3 or 5 from the
Stop mode or perform an Index
Search. (墌 pg. 51) The position
of “ ” in relation to “0”
(Beginning) or “+” (End) shows
you where you are on the tape.
NOTE:
Depending on the type of tape
being used, the tape position
indicator may not appear correctly.
D Index number 墌 pg. 51
E Tape Remaining Time Indicator
墌 pg. 54
F Counter Display
G Audio Mode Display 墌 pg. 52
H SAP Indicator
墌 pg. 54
I Stereo Program Indicator
墌 pg. 54
J Day/Clock Display
K Channel Position Number/Auxiliary Input Indicator (L-1
or F-1)
L “Cassette Loaded” Mark
L - R
SOUND1
0:00 1:00 2:00
GR-DV3500
GR-DV3500DV
HDD
00:00:00. 00
12bit
JVC
00:00:00. 00
DV
FR360
DV DV
1 2
179 :59 :59
A
B
C
D
E
F
G
H
I
J
K
L
Beginning
End
