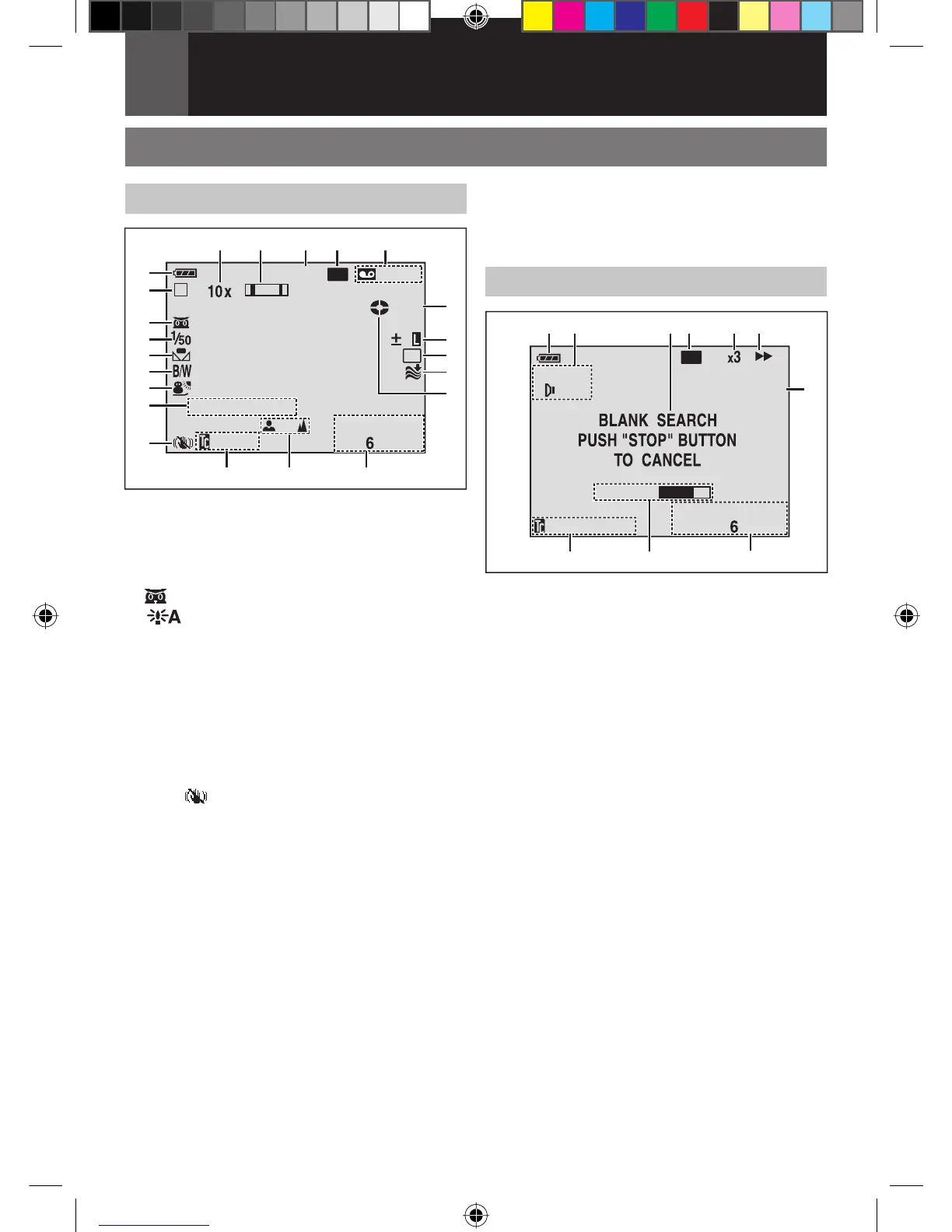

LCD Monitor Indications
During Video Recording
! Battery Remaining Power Indicator
# Operation Mode ( 9)
A : Auto Mode
M : Manual Mode
$ : Night-Scope Indicator ( 28)
: Gain Up Mode ( 20)
% Shutter Speed ( 28)
& White Balance Indicator ( 26)
( Selected Effect Indicator ( 28)
) Selected Program AE Indicator ( 27)
* SOUND 12BIT/16BIT: Sound Mode
Indicator ( 21) (Appears for approx. 5
seconds after turning on the camcorder.)
+ Digital Image Stabiliser (“DIS”) ( 20)
(only indicator is displayed)
, Approximate Zoom Ratio ( 15)
- Zoom Indicator ( 15)
. Selected Wide Mode Indicator ( 13)
(only 16:9 indicator is displayed)
/ Recording Speed Mode (SP/LP) ( 21)
(only LP indicator is displayed)
0 Tape Remaining Time ( 14)
1 REC : (Appears during recording.) ( 14)
2 . : Spot Exposure Control Indicator ( 25)
- : Backlight Compensation Indicator ( 25)
± : Exposure Adjustment Indicator ( 24)
C : Iris Lock Indicator ( 25)
3 Selected Wipe/Fader Effect Indicator ( 27)
4 Wind Cut Indicator ( 20)
5 Tape Running Indicator
(Rotates while tape is running.)
6 Date/Time ( 21)
7 Manual Focus Adjustment Indicator ( 24)
8 Time Code ( 21)
During Video Playback
! Battery Remaining Power Indicator
# Sound Mode Indicator ( 23)
$ Blank Search Indicator ( 17, 23)
% Tape Speed (SP/LP) ( 23)
(only LP indicator is displayed)
& Variable Search Speed Indicator: x-10, x-3,
x3 and x10 ( 17)
( U : Playback
5 : Fast-Forward/Shuttle Search
3 : Rewind/Shuttle Search
9 : Pause
) DV IN : DV Input Indicator ( 29, 30)
* Date/Time ( 23)
+ VOLUME: Volume Level Indicator ( 16)
, Time Code ( 23)
