JVC GR-DVA10 User Manual

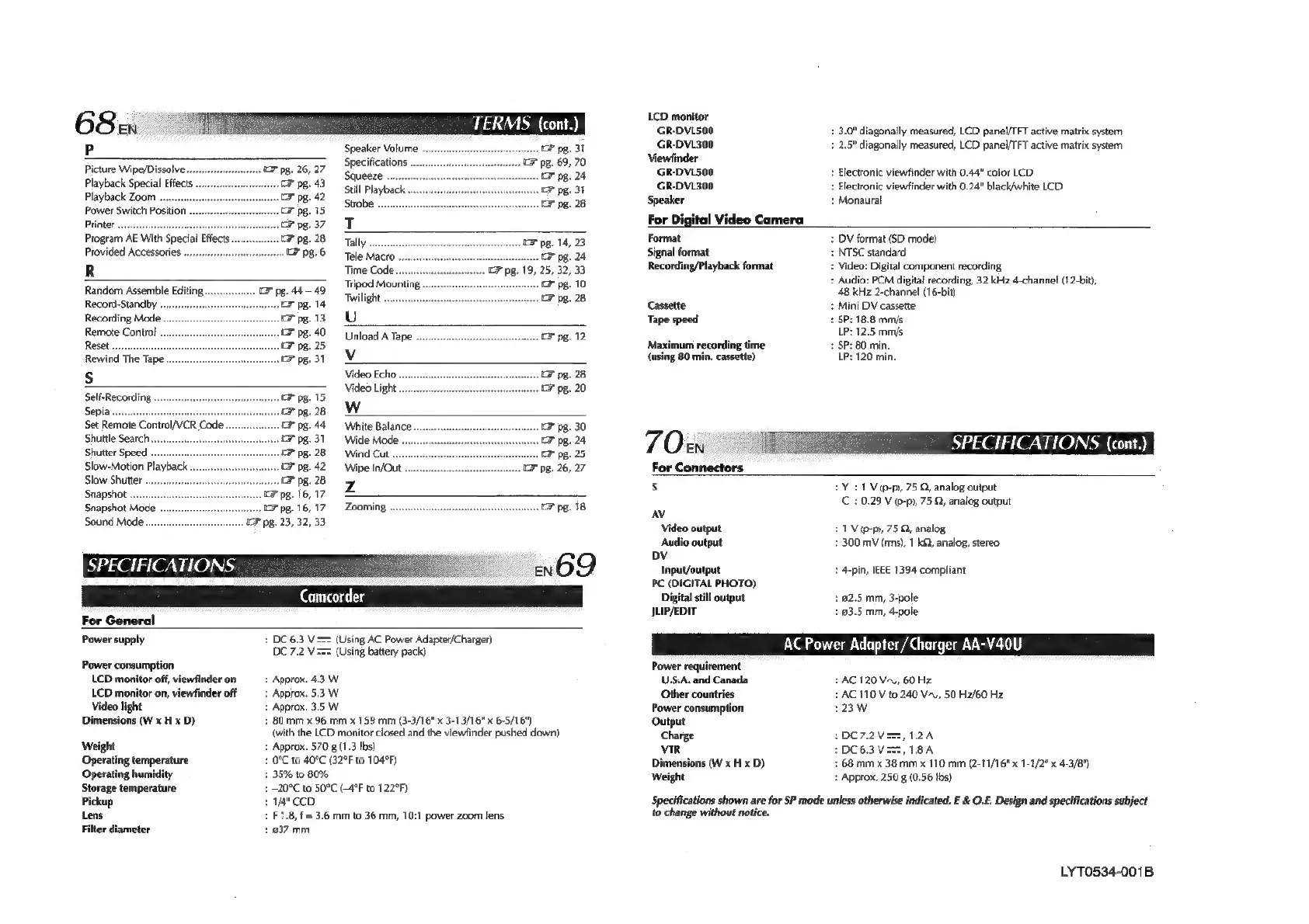

68en
Speaker
Volume
...
oan
SF
pg.
31
Wipe/Dissolve
..
ase
Playback
Special
Effects
i
©
pg
43
Sill
playback
Playback Zoom
Power Switch Position Srabe
PWNS
siescverceur
T
Program AE With Special Effects Tally
Provided Accessories .. Tele Macro sever: (> pg. 24
R Time Code. ©F pg. 19, 25, 32, 33
Random Assemble Editin Laas aia - Pe ¥
Record-Standby marl
Recording Mode U
femee Contro! Unload A Tape .. EF pg. 12
eset .
Rewind The Tape v
S Video Echo F pg. 28
Video Light &F pg. 20
Self-Recording .. © pg. 15
Sepia .. ce pg.28 WH
Set Remote ControlVCR Cod 7 pg. 44 White Balance = pg. 30
Shuttle Search oF pg.31 Wide Mode .. CF pg. 24
Shutter Speed CF pg. 28 Wind Cut ... © pg. 25
Slow-Motion Playback pg.42 Wipe In/Out 1 pg. 26, 27
Slow Shutter ssn BB 28
Snapshot ...... (F pg. 16, 17
Snapshot Mode © pg. 16,17 Zooming EF pg. 18
Sound Mode. . OF pg. 23, 32, 33.
enOQ9
For General
Power supply + DC 6.3 V== (Using AC Power Adapter/Charger)
DC 7.2 Vzzz (Using battery pack)
Power consumption
LCD monitor off, viewfinder on = Approx. 4.3 W
LCD monitor on, viewfinder off: Approx. 5.3 W
Video light 1 Approx. 3.5 W.
Dimensions (W x H x D) + 80 mm x 96 mm x 159 mm (3-3/16" x 3-13/16" x 6-5/16")
(with the LCD monitor closed and the viewfinder pushed down)
Weight + Approx. 570 g (1.3 Ibs)
Operating temperature 1 0°C to 40°C (32°F to 104°F)
Operating humidity + 35% to 80%
Storage temperature 1 =20°C to 50°C (-4°F to 122°F)
Pickup v/a" CCD
Lens 2 F 1.8, f= 3.6 mm to 36 mm, 10:1 power zoom lens
Filter diameter £037 mm
LCD monitor
GR-DVL500 + 3.0" diagonally measured, LCD panel/TFT active matrix system
GR-DVL300 : 2.5" diagonally measured, LCD panel/TFT active matrix system
Viewfinder
GR-DVL500 : Electronic viewfinder with 0.44" color LCD
GR-DVL300 : Electronic viewfinder with 0.24" black/white LCD
Speaker : Monaural
For Digital Video Camera
Format : DV format (SD mode)
Signal format © NTSC standard
Recording/Playback format + Video: Digital component recording
: Audio: PCM digital recording, 32 kHz 4-channel (12-bit),
48 kHz 2-channel (16-bit)
Cassette 2 Mini DV cassette
Tape speed : SP: 18.8 mm/s
LP: 12.5 mms
‘Maximum recording time + SP: 80 min
(using 80 min, cassette) LP: 120 min.
70x
SPECIFICATIONS (cont.)
For Connectors
s : Y : 1 Vp-p), 75 Q, analog output
C : 0.29 Vip-p», 75 Q, analog output
AV
Video output : 1 Vp-p), 75 Q, analog
Audio output : 300 mV (rms), 1 kQ, analog, stereo
Dv
Input/output 4-pin, IEEE 1394 compliant
PC (DIGITAL PHOTO)
Digital still output 02.5 mm, 3-pole
JLIP/EDIT : 03.5 mm, 4-pole
AC Power Adapter /Charger AA-V40U
Power requirement
U.S.A. and Canada + AC 120 Vu, 60 Hz
‘Other countries : AC 110 V to 240 Vu, 50 Hz/60 Hz
Power consumption :23W
Output
Charge :DC7.2 12A
VIR DC 6.3 1.8A
Dimensions (W x H x D) 68 mm x 38 mm x 110 mm (2-11/16" x 1-1/2" x 4-3/8")
Weight + Approx. 250 g (0.56 Ibs)
Specifications shown are for SP mode unless otherwise indicated. E & O.E, Design and specifications subject
to change without notice.
LYT0534-001B
