(No.HC047<Rev.001>)1-23
Refer to 5.1.4 Advanced Function Menu because the operations
are almost the same.
(Bold is the factory setting.)
*1 This mode is automatically set to ON when the power is turned
ON. The OFF mode is enabled only after it is set to OFF on this
screen until the power is turned OFF.

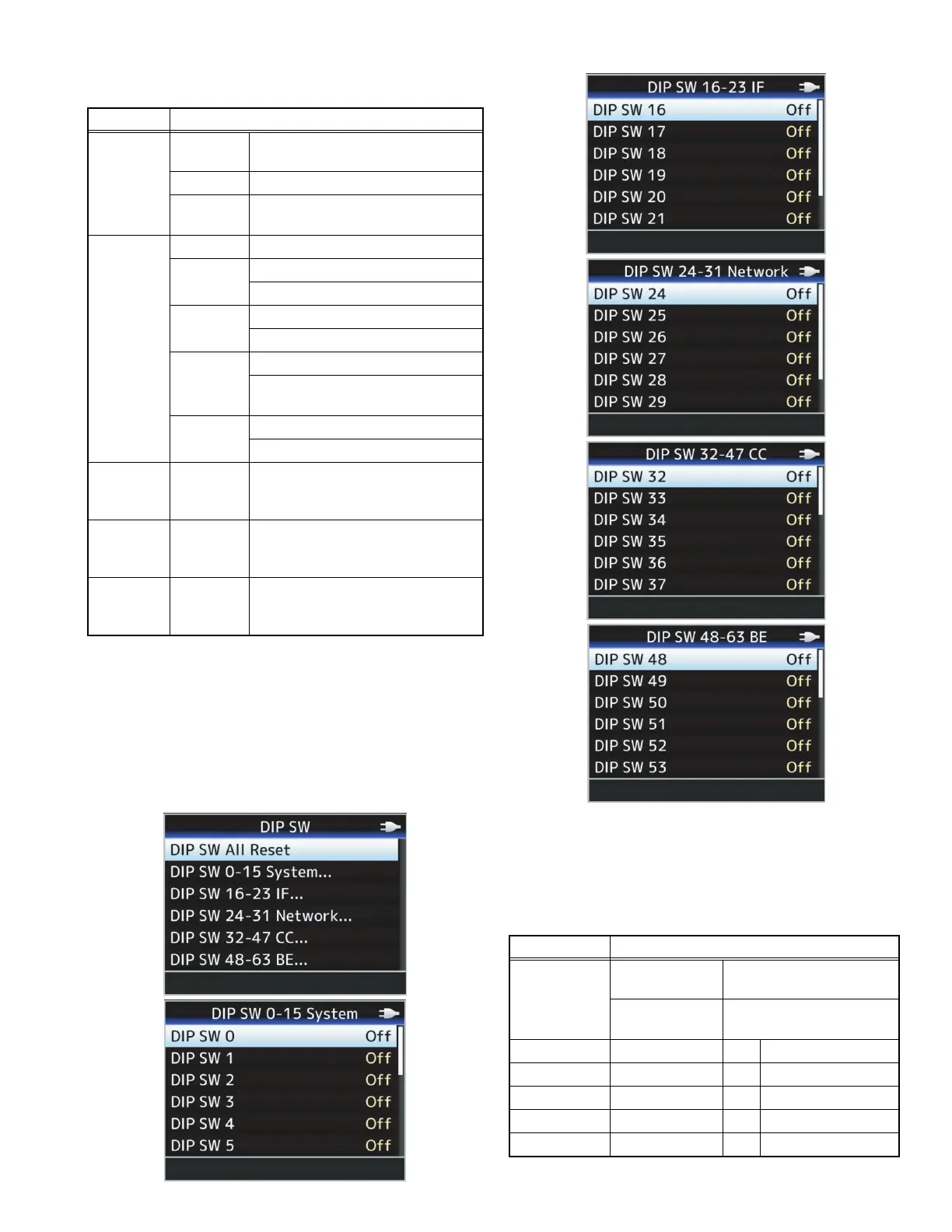

5.1.7 DIP SW Menu Operation
(1) Refer to 5.1.2 to display the Service menu.
(2) Select the [DIP SW...], and then press the [Set] button or
the [Cross-Shaped] button (right).
(3) The DIP SW is displayed.
NOTE:
ALL DIP switches are factory use only. These DIP switches
are not used for repair or maintenance. Therefore all DIP
Switch settings which are shown below should not be
changed. And do not forget to return to the initial position, if
setting was changed.
Refer to 5.1.4 Advanced Function Menu because the operations
are almost the same.
(Bold is the factory setting.)
Item Parameter
Pixel Com-
pen
*1
Off Does not correct the detected white
blemish.
On Corrects the detected white blemish.
Check Light up the pixels which are the de-
tected white blemish.
Test Signal Off No output test signal.
FPGA1 Outputs FPGA1 signal.
1 to 32
FB1 Outputs FB1 signal.
1 to 5
FPGA2 Outputs FPGA2 signal.
LCD/VF Bars, Check Field A, Check
Field B
FB2 Outputs FB2 signal.
1 to 5
DC Shut-
down
10.4V Shutdown voltage is set up at 0.1V
step at the time of DC power supply
use. (10.0V to 12.0V)
BATT Shut-
down
6.3V Shutdown voltage is set up at 0.1V
step at the time of battery use. (6.3V
to 7.2V)
BATT Alarm 6.6V Display voltage of battery alarm is set
up at 0.1V step at the time of battery
use. (6.3V to 7.2V)
Item Parameter
DIP SW ALL
RESET
CANCEL Cancel to reset all DIPSW
settings.
EXECUTE Execute to reset all DIPSW
settings.
DIP SW 0-15 DIP SW 0 to 15 OFF Change prohibited.
DIP SW 16-23 DIP SW 16 to 23 OFF Change prohibited.
DIP SW 24-31 DIP SW 24 to 31 OFF Change prohibited.
DIP SW 32-47 DIP SW 32 to 47 OFF Change prohibited.
DIP SW 48-63 DIP SW 48 to 63 OFF Change prohibited.
