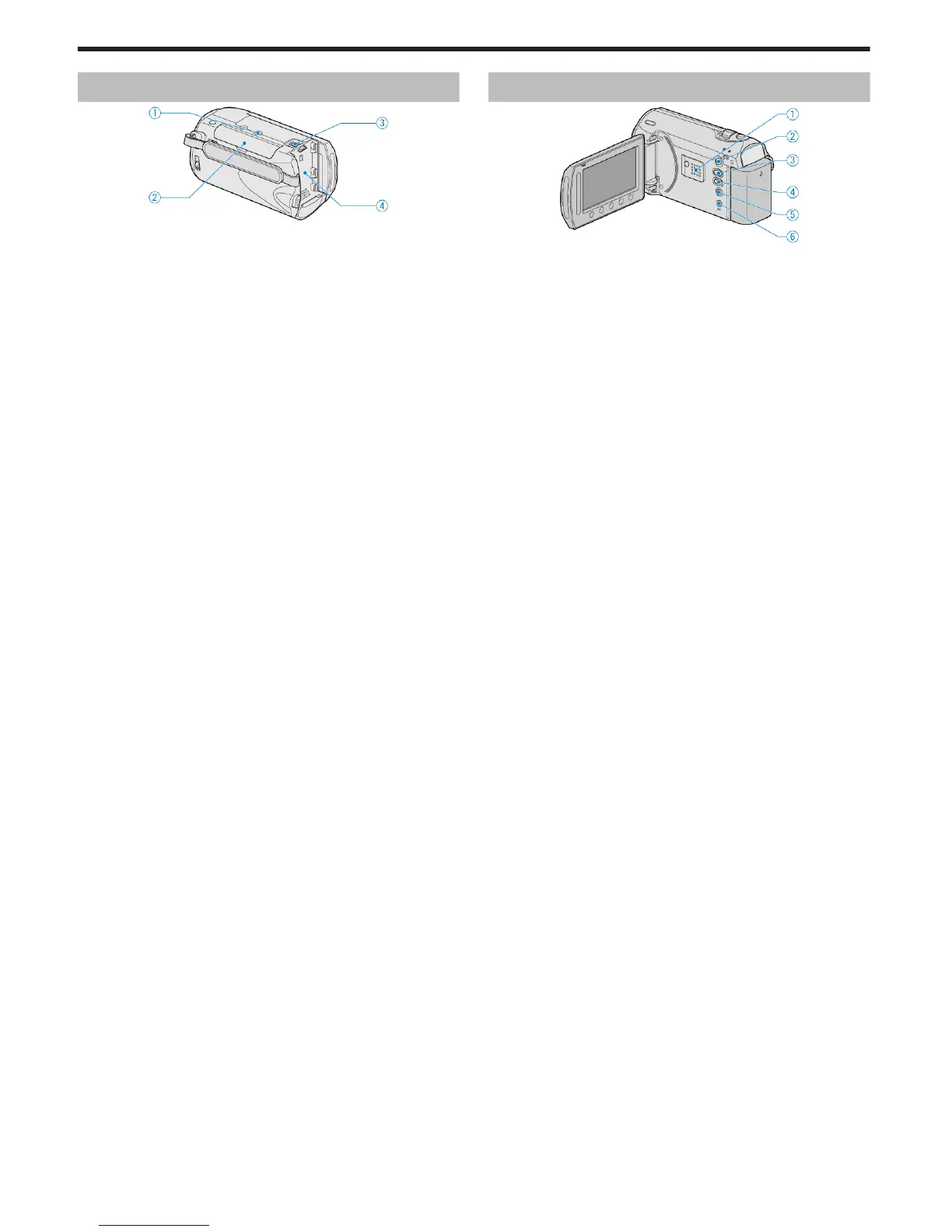

JVC GZ-MS230AG - Bottom; Interior

Bottom
.
1
Tripod Mounting Hole
"Tripod Mounting" （A P.17）
2
SD Card Slot
●
Insert an optional SD card.
"Inserting an SD Card (GZ-MS230)" （A P.13）
"Inserting an SD Card (GZ-MS215)" （A P.14）
3
Battery Release Lever
"Charging the Battery Pack" （A P.12）
4
Battery Mount
Interior
.
1
Speaker
●
Outputs audio sound during video playback.
2
L (Play) Button
●
Switches between the recording and playback modes.
3
A / B (Video/Still Image) Button
●
Switches between video and still image.
4
UPLOAD/EXPORT (Upload/Export to iTunes) Button
●
Recording: Takes videos in YouTube or iTunes format.
●
Playback: Changes the video to YouTube or iTunes format.
5
M (Power/Info) Button
●
Recording: Displays the remaining time (for video only) and battery
power.
●
Playback: Displays file information such as recording date.
●
Press and hold to turn the power on/off while the LCD monitor is
opened.
6
AV Terminal
●
Connects to a TV.
